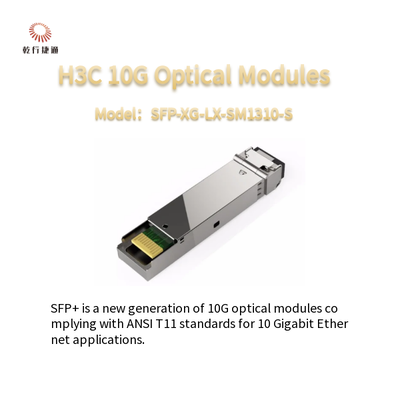

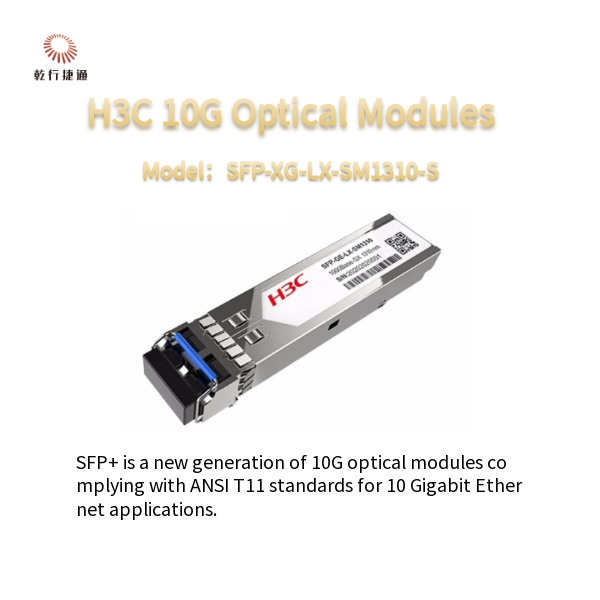

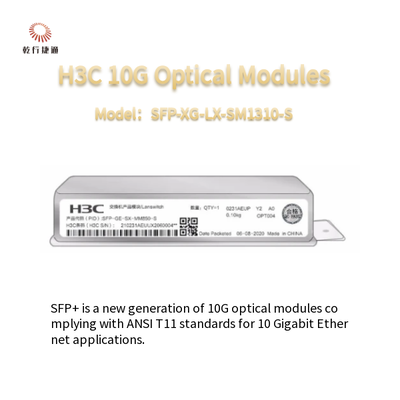

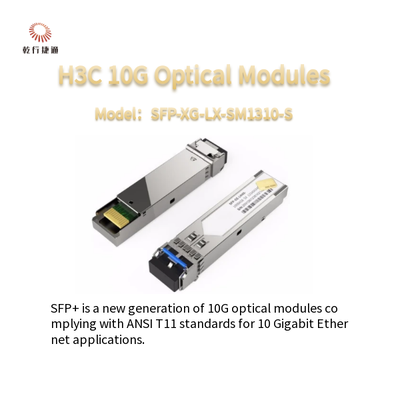

H3CSFP-XG-LX-SM1310-S 10G SFP+ Multi-mode Optical Module

H3CSFP-XG-LX-SM1310-S 10G SFP+ Multi-mode Optical Module
H3CSFP-XG-LX-SM1310-S 10G SFP+ Multi-mode Optical Module H3CSFP-XG-LX-SM1310-S 10G SFP+ Multi-mode Optical Module H3CSFP-XG-LX-SM1310-S 10G SFP+ Multi-mode Optical Module H3CSFP-XG-LX-SM1310-S 10G SFP+ Multi-mode Optical Module

Large Image :  H3CSFP-XG-LX-SM1310-S 10G SFP+ Multi-mode Optical Module

Product Details:
Brand Name: H3C
Model Number: SFP-XG-LX-SM1310-S
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $10-100
Contact Now

H3CSFP-XG-LX-SM1310-S 10G SFP+ Multi-mode Optical Module

Description
Model: SFP-XG-LX-SM1310-S Center Wavelength: 1310nm
Transmission Distance: 10km Interface: LC Interface
Highlight:

10G SFP+ multi-mode optical module

,

H3C SFP+ optical module with warranty

,

10G SFP+ fibre channel switch module


SFP+ Optical Module Product Description (English Version)


SFP+ optical module is a new generation of 10 Gigabit optical modules. Compliant with the ANSI T11 protocol, it supports 10 Gigabit Ethernet (10GbE) applications. The SFP+ module is approximately 30% smaller in form factor than the earlier XFP optical modules, and is identical in appearance to standard 1-4G SFP optical modules.


SFP+ Module Models and Specifications
Model Center Wavelength Transmission Distance Interface
SFP-GE-SX-MM850-S 850nm 550m LC Interface
SFP-GE-LX-SM1310-S 1310nm 10km LC Interface
SFP-XG-SX-MM850-S 850nm 300m LC Interface
SFP-XG-LX-SM1310-S 1310nm 10km LC Interface



It retains only the basic electrical-to-optical and optical-to-electrical conversion functions, and eliminates signal control components such as SerDes, CDR, EDC, and MAC from the original XFP design. This simplifies the architecture of 10G optical modules and results in significantly lower power consumption.

With outstanding advantages of high density, low power consumption and reduced system construction cost, SFP+ modules are widely used in the 10 Gigabit Ethernet optical fiber data communication field, and have become the mainstream 10G optical module solution.

Key Features

  • Operating rate: 10Gb/s
  • Standard SFP+ form factor
  • Duplex LC receptacle, compliant with hot-pluggable Multi-Source Agreement (MSA) standards
  • 3.3V operating voltage with ultra-low power consumption
  • Supports Digital Diagnostic Monitoring (DDM)
  • Compliant with Laser Class 1 safety standards
  • Optional transmission distance from 300m to 80km
  • Wavelength options: 850nm, 1310nm, 1550nm, as well as CWDM and DWDM wavelengths
  • SFP+ MSA compatible, interoperable with Cisco and Huawei switches and routers


Applications

10 Gigabit Ethernet, SDH optical transmission networks, WDM wavelength division multiplexing system projects, and single-fiber bidirectional system projects.
