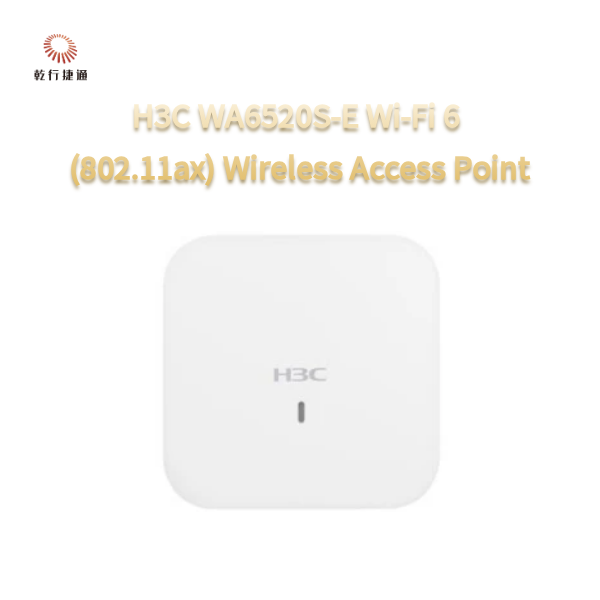

H3C WA6520S-E Wi-Fi 6 (802.11ax) Wireless Access Point

H3C WA6520S-E Wi-Fi 6 (802.11ax) Wireless Access Point
H3C WA6520S-E Wi-Fi 6 (802.11ax) Wireless Access Point

Large Image :  H3C WA6520S-E Wi-Fi 6 (802.11ax) Wireless Access Point

Product Details:
Brand Name: H3C
Model Number: WA6520S-E
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $120-1000
Contact Now

H3C WA6520S-E Wi-Fi 6 (802.11ax) Wireless Access Point

Description
Attribute: WA6520S-E Ethernet Interfaces: 1 * (10/100/1000M Electrical Port)
Console Port: 1 Operating Frequency Bands: 802.11ax/b/g/n: 2.4GHz-2.483GHz (China)
Transmit Power (Combined): 26dBm Status Indicators: Yellow, Green And Blue Tri-color LEDs
Highlight:

H3C WA6520S-E Wi-Fi 6 access point

,

802.11ax wireless access point

,

H3C WA6520S-E wireless access point


H3C WA6520S-E Wi-Fi 6 (802.11ax) Wireless Access Point


Product Overview

Independently developed by H3C, this indoor AP adopts dual-band 3-stream design with a total throughput of 1.775Gbps: 1.2Gbps for 5GHz (1 spatial stream) and 0.575Gbps for 2.4GHz (2 spatial streams). It meets high-bandwidth and high-concurrency requirements in dense indoor scenarios, and supports wall and ceiling mounting.


Attribute WA6520S-E
Dimensions (excluding mounting accessories) 185 * 185 * 35 mm
Weight 0.4 kg
Ethernet Interfaces 1 * (10/100/1000M electrical port)
PoE Supports 802.3af power supply
Local Power Supply Supports 54V DC local power supply
Console Port 1
Built-in Antenna Built-in smart antenna system
Built-in IoT BLE5.1
Operating Frequency Bands 802.11ax/ac/n/a: 5.725GHz-5.850GHz (China);
5.47GHz~5.725GHz; 5.15GHz~5.35GHz (China)
802.11ax/b/g/n: 2.4GHz-2.483GHz (China)
Modulation Technology MIMO-OFDM(11n):MCS 0-31
MIMO-OFDM(11ac): MCS 0-9
MIMO-OFDM(11ax): MCS 0-11
Modulation Schemes 11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM
11ac/ac wave2:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM
11ax:MIMO-OFDM: BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM
Transmit Power (Combined) 26dBm (actual transmit power varies by country regulations)
Adjustable Power Granularity 1dBm
Reset/Restore to Factory Default Supported
Status Indicators Yellow, green and blue tri-color LEDs
Operating/Storage Temperature -10°C~55°C / -40°C~70°C
Operating/Storage Humidity 5%~95% (non-condensing)
Power Consumption ≤12W
Safety Standards GB4943, EN/IEC/UL 60950-1, EN/IEC/UL 62368-1
EMC Standards EN 55024, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN60601-1-2, EN301 489-1, EN301 489-17
Environmental Standards GB/T 2423, GB/T 13543, GB 4208
RF Certifications FCC Part 15, EN 300 328, EN 301 893, MIIT Radio Transmitting Equipment Type Approval
MTBF >8500000H



Product Features


Operating Modes

Integrated firmware enables flexible mode switching for plug-and-play deployment.
  • Fit AP: Managed by Comware-based wireless controllers for batch local management.
  • Cloud AP: Enables wireless networking without dedicated hardware AC, supporting PPSK, PSK, Portal, SMS and WeChat authentication. Optimized for multi-branch sites, it simplifies deployment, hierarchical management and O&M to cut costs.


Intelligent O&M

Powered by Telemetry, the system visualizes abundant operational data and identifies various login, logout and authentication failures. It evaluates terminal, device and network health, and automatically optimizes network performance in real time.

Wired & Wireless Security

It supports 802.1x, PSK, MAC, PPPoE and other authentication modes. Built-in WIPS delivers rogue device detection, intrusion prevention, blacklist and whitelist functions. 802.1X port authentication, CAPWAP and DTLS encryption secure wired and wireless links. It also works with security awareness system to block risky terminals.


Air Interface & Access Policies

RROP reduces resource waste caused by management and broadcast packets. SACP optimizes terminal access, load balance and traffic scheduling to boost overall network performance.


Radio Resource Management (RRM)

It monitors channel status and interference dynamically, adjusts radio parameters to realize auto network deployment and self-repair.


Application Assurance

The exclusive Wi-Fi 6 eXtreme Plus technology identifies applications accurately and processes packets efficiently. It prioritizes key services and optimizes roaming for smooth audio and video experience.


Roaming & Exclusive Access

Compliant with 802.11r/k/v, it achieves fast and seamless roaming. The Only 11ax mode locks radios to Wi-Fi 6 clients only to guarantee network performance.


Probe & Diagnosis

It acts as an independent sensor to capture and mirror Wi-Fi packets for troubleshooting. Doctor AP mode simulates terminals to locate faults, with multi-dimensional analysis supported by Cloudnet and cloud management tools.


Wi-Fi 6 Core Technologies

OFDMA enables parallel multi-user transmission to lower latency. SR and BSS Coloring mitigate co-channel interference. TWT schedules terminal sleep/wake cycles for power saving.


Flexible Forwarding

Local forwarding bypasses remote controllers to save WAN bandwidth. Users can choose centralized or local forwarding flexibly to relieve egress pressure.


IPv4/IPv6 Dual Stack

Full Native IPv6 support ensures automatic registration with controllers and stable operation in mixed network environments.


EAD & Chinese SSID

The EAD solution enforces enterprise security policies to restrict non-compliant clients. It supports SSIDs with up to 16 Chinese characters or mixed Chinese and English.

Notices:
1. Open the packaging, check the products carefully, and take them gently.
2. The product is a brand new original unopened equipment.
3. All products 1 year warranty, and the buyer is responsible for the return shipping cost.

International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
