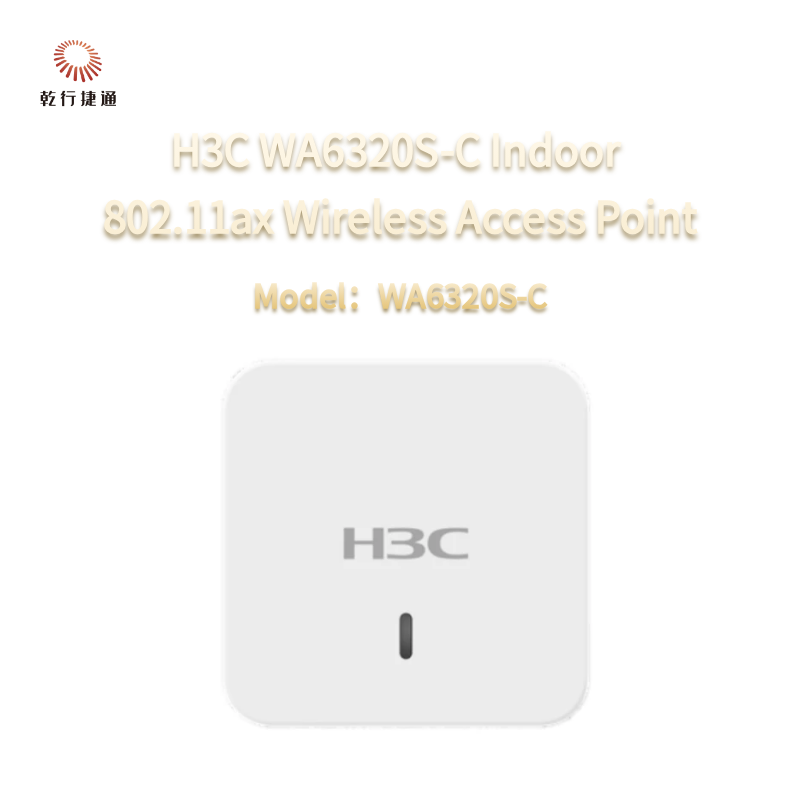

Independently developed by H3C, this new-generation 802.11ax AP features dual-band four-stream design for enterprise, campus and medical scenarios. With built-in smart antennas for dual-band access, it boasts compact size and supports wall mounting, ceiling mounting and 86-type box installation.

Attribute	WA6320S-C
Ethernet Interface	1 × 10/100/1000Mbps electrical port
Dimensions (excluding antenna interface and accessories, L×W×H)	130mm × 130mm × 36mm
PoE (Supported Protocols)	Supports 802.3af compatible power supply
Local Power Supply	Supports 54V DC
Console Port	1
Built-in Antenna	Built-in smart antenna system
Operating Frequency Band	802.11ax/ac/n/a: 5.725GHz-5.850GHz (China); 5.47GHz~5.725GHz; 5.15GHz~5.35GHz (China) 802.11ax/b/g/n: 2.4GHz-2.483GHz (China)
Modulation Technology	MIMO-OFDM (11n): MCS 0-15 MIMO-OFDM (11ac): MCS 0-9 MIMO-OFDM (11ax): MCS 0-11
Modulation Scheme	11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM 11ac/ac wave2:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM 11ax: MIMO-OFDM: BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM
Transmit Power (Single Chain)	20dBm
Adjustable Power Granularity	1dBm
Reset / Restore Factory Configuration	Supported
Status Indicator	Yellow/Green/Blue different working status flashing modes
Operating / Storage Temperature	-10°C ~ 55°C / -40°C ~ 70°C
Operating / Storage Humidity	5% ~ 95% (Non-condensing)
Power Consumption	≤12.95W
Safety Standards	GB4943, EN/IEC/UL 60950-1, EN/IEC/UL 62368-1
EMC	EN 55024, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 301 489-1, EN 301 489-17, EN 60601-1-2
Environmental Standards	GB/T 2423, GB/T 13543, GB 4208
RF Certification	FCC Part 15, EN 300 328, EN 301 893, MIIT Radio Transmission Equipment Type Approval
Health Standard	EN 50385
MTBF	> 850000H

It delivers a total rate up to 1.775Gbps with full MU-MIMO support. The 5GHz band reaches 1.2Gbps and 2.4GHz band hits 0.575Gbps, ideal for indoor deployment. MU-MIMO enables simultaneous data transmission to 4 terminals, lifting spectrum efficiency, user capacity and experience in high-density environments while cutting deployment costs.

Complying with 802.11ax, it provides dual-band access and solid coverage, density and stability to reduce network Total Cost of Ownership.

It supports DMPS, E-APSD and Green AP mode. The innovative Per-Packet Power Control dynamically adjusts transmit power to save energy and extend terminal battery life.

In Fit AP mode, local packet forwarding avoids traffic relay to remote controllers and saves WAN bandwidth.

Fully compatible with IPv4 and IPv6 networks, it auto-registers with WX series controllers without isolation issues.

The EAD solution enforces enterprise security policies. It restricts risky clients and only allows compliant terminals to access the network.

Working as a sensor, it captures and mirrors Wi-Fi packets for troubleshooting. It supports channel mirroring and full-channel polling to meet O&M needs.

The built-in ROE optimizes radio signals for dense access and media streaming, covering scheduling, interference filtering, spectrum navigation, multicast enhancement and bandwidth guarantee.

It balances users and traffic only in overlapping coverage areas to avoid access failures and maximize network capacity.

It supports SSIDs with up to 16 Chinese characters or mixed Chinese and English.

All H3C wireless devices adopt WSM for integrated wired-wireless management. Developed on H3C iMC platform with standard SOA architecture, the web-based system supports device monitoring, fault management, performance tracking, firmware & configuration control and user management, realizing full unified network operation.
