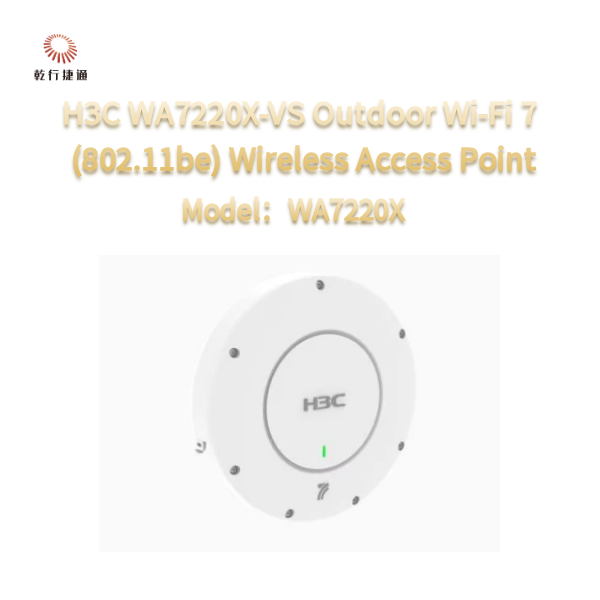

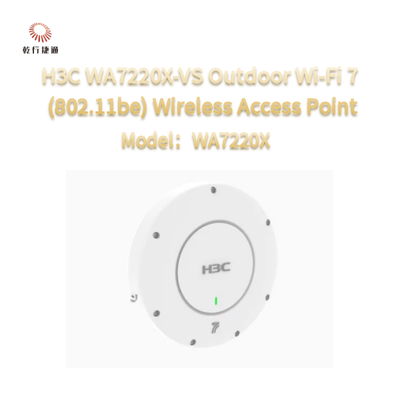

H3C WA7220X-VS Outdoor Wi-Fi 7 (802.11be) Wireless Access Point

H3C WA7220X-VS Outdoor Wi-Fi 7 (802.11be) Wireless Access Point
H3C WA7220X-VS Outdoor Wi-Fi 7 (802.11be) Wireless Access Point

Large Image :  H3C WA7220X-VS Outdoor Wi-Fi 7 (802.11be) Wireless Access Point

Product Details:
Brand Name: H3C
Model Number: WA7220X-VS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $200-800
Contact Now

H3C WA7220X-VS Outdoor Wi-Fi 7 (802.11be) Wireless Access Point

Description
Dimensions: 65mm * 240mm * 240mm PoE: 2.5GE Electrical Port: 802.3af Power Supply
USB: 1 Operating Frequency Bands: 802.11be/ax/ac/n/a: 5.725GHz-5.850GHz (China)
Modulation Schemes: 11a/g：OFDM:64QAM@48/54Mbps Adjustable Power Granularity: 1dBm
Highlight:

H3C WA7220X-VS outdoor Wi-Fi 7 access point

,

802.11be wireless access point with warranty

,

outdoor wireless access point for Wi-Fi 7


H3C WA7220X-VS Outdoor Wi-Fi 7 (802.11be) Wireless Access Point


Product Overview

Developed by H3C, this Wi-Fi 7 AP adopts built-in antennas with single-radiation transmit power up to 500mW, delivering reliable outdoor coverage. Featuring IP68 protection and wide operating temperature range, it suits harsh environments such as wireless cities, residential areas, scenic spots and factories.

With dual-band 4-stream design, it reaches a total rate of 3.57Gbps. Powered by Comware OS, it enables cloud-network-edge collaboration and 4i intelligent technologies for RF, terminal, service and network management. It supports wall mounting and pole mounting.

Attribute WA7220X-VS
Dimensions (excluding antenna connectors and accessories, H*L*W) 65mm * 240mm * 240mm
Ethernet Interfaces 1 * 10/1000M/2.5G electrical port,
1 * 10G PSFP (optical-electrical integration) optical port compatible with SFP+
PoE 2.5GE electrical port: 802.3af power supply;
10G optical port: 802.3af optical-electrical composite power supply
Console Port 1
USB 1
Built-in Antenna Built-in smart omni-directional antenna system
Operating Frequency Bands 802.11be/ax/ac/n/a: 5.725GHz-5.850GHz (China);
5.47~5.725GHz; 5.15~5.35GHz (China)
802.11be/ax/b/g/n: 2.4GHz-2.483GHz (China)
Modulation Technology MIMO-OFDM(11n):MCS 0-31
MIMO-OFDM(11ac): MCS 0-9
MIMO-OFDM(11ax): MCS 0-11
MIMO-OFDMA (11be): MCS 0-13
Modulation Schemes 11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM
11ac/ac wave2:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM
11ax:MIMO-OFDM: BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM
11be:MIMO-OFDM: BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM, 4096QAM
Transmit Power (Combined) 2.4G: 30 dBm;
5G: 26 dBm
Adjustable Power Granularity 1dBm
Reset/Restore to Factory Default Supported
Status Indicators Yellow, green and blue tri-color LEDs
Operating/Storage Temperature -40°C~65°C / -40°C~85°C
Operating/Storage Humidity 0%~100% (non-condensing)
Maximum Power Consumption ≤25.5W
Protection Level IP68
Ethernet Interface Lightning Protection 6KV
Safety Standards GB4943.1, EN/IEC 62368-1
EMC Standards EN 55024, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN60601-1-2, EN301 489-1, EN301 489-17
Environmental Standards GB/T 2423, GB/T 13543, GB 4208
RF Certifications FCC Part 15, EN 300 328, EN 301 893, MIIT Radio Transmitting Equipment Type Approval



Product Features

Operating Modes

Integrated firmware supports flexible mode switching for plug-and-play deployment.
  • Fit AP: Managed by Comware-based wireless controllers for batch deployment.
  • Cloud AP: Works without hardware AC, supporting PPSK, PSK, Portal, SMS and WeChat authentication. It simplifies deployment for multi-branch sites and lowers O&M costs via cloud management.
  • Anchor Mode: Combines AC and AP functions for cost-effective small-scale wireless networks.


Intelligent O&M

It realizes data visualization, status evaluation and auto-optimization via Telemetry. The system collects comprehensive operation logs and identifies various online/offline and authentication failures. It evaluates device and network health, and automatically detects and resolves faults to maintain optimal network performance.

Wired & Wireless Security

It supports 802.1x, PSK, MAC, PPPoE and other authentication methods. Built-in WIPS provides rogue device detection, intrusion prevention, blacklist and whitelist functions. 802.1X port authentication, CAPWAP and DTLS encryption ensure wired and wireless security. It also links with security awareness system to block risky terminals.

Air Interface & Access Policies

  • RROP: Reduces overhead from management and broadcast packets via Layer 2 isolation and parameter optimization.
  • SACP: Optimizes terminal access, load balance and traffic scheduling to improve overall network performance.

Radio Resource Management (RRM)

It monitors channel utilization and interference in real time, dynamically adjusts radio parameters to implement auto deployment and self-repair.

Roaming Optimization

Compliant with 802.11r/k/v, it delivers fast and seamless roaming with traffic retention during handoff.

Probe Scanning & Doctor AP Mode

Each radio supports packet capture and mirroring for troubleshooting. Doctor AP mode simulates terminals to diagnose faults, working with Cloudnet APP for multi-dimensional analysis.

Wi-Fi 7 Key Technologies

  • Multi-RU: Enables flexible and refined wireless resource allocation.
  • MLO: Establishes multiple radio links simultaneously to boost transmission efficiency and reliability.

Flexible Forwarding

Supports local forwarding to bypass remote controllers and save WAN bandwidth. Users can select centralized or local forwarding flexibly to ease egress pressure.

IPv4/IPv6 Dual Stack

Fully supports Native IPv6. The device auto-registers with controllers and operates smoothly in mixed IPv4/IPv6 networks.

EAD Access Control

The EAD solution enforces enterprise security policies to restrict non-compliant terminals and enhance network security.

Chinese SSID

Supports SSIDs with up to 16 Chinese characters or mixed Chinese and English for local use convenience.

Notices:
1. Open the packaging, check the products carefully, and take them gently.
2. The product is a brand new original unopened equipment.
3. All products 1 year warranty, and the buyer is responsible for the return shipping cost.

International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
