| Item |
WAC380-60 |
| Dimensions (W × D × H) |
330 × 230 × 43.6 mm |
| Full Configuration Weight |
2 kg |
| Interfaces |
8 × GE, 2 WAN + 6 LAN |
| Managed APs |
60, expandable to 84 |
| Wall-mounted AP Management Doubling |
Supported |
| USB |
1 |
| SD Card Slot |
1 |
| Power Supply |
100V AC~240V AC |
| Total Power Consumption |
20W~30W |
| Operating/Storage Temperature |
0°C~45°C / -40°C~70°C |
Operating/Storage Humidity
(Non-condensing) |
5%~95% |
| Safety Standards |
GB 4943.1 |
| EMC Standards |
ETIS EN 300 386 V1.6.1:2012,
EN 55024:2010,
EN 55022:2010,
EN 61000-3-2: 2006 + AMD2: 2009,
EN 61000-3-3: 2013,
GB 9254:2008,
GB/T 17618:1998 |
| MTBF |
≥45 years |
Management for Xiao Bei APs

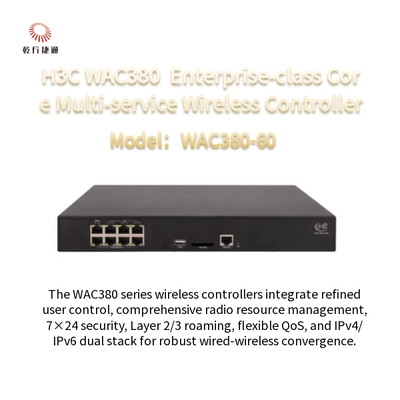

The WAC380 centrally manages Xiao Bei Fit APs and lightweight-manages cloud-terminator APs, supporting radio configuration, service deployment and firmware upgrade.
New V7 OS
Powered by H3C latest V7 operating system, it delivers higher performance and reliability. It features adjustable multi-core allocation, user-mode multi-tasking, task monitoring, independent service upgrade, ensuring stable operation and minimized reboot times.
Flexible Forwarding Modes
It supports centralized, local, distributed and policy-based forwarding. Typical deployment like centralized authentication plus local forwarding works well for HQ-branch WAN connections, eliminating core bandwidth bottlenecks.
Comprehensive User Access Control
User Profile applies tailored CAR and QoS policies upon authentication and disables rules after logout. It also supports MAC-based authentication, MAC VLAN and AP-location based access restriction for refined permission management.
Integrated Gateway
Combines gateway and AC functions, supporting PPPoE, NAT, static/dynamic IP, ideal for small enterprises and branches. Bonjour Gateway enables smooth use of Apple devices with AirPlay and AirPrint.
Intelligent Radio Management
Smart channel switching avoids interference from radars, microwaves and adjacent APs. Intelligent load balancing distributes clients by session count and traffic to prevent congestion.
Wireless Security (wIPS)
It provides blacklist/whitelist, rogue AP defense, malformed packet detection and anti-DoS/Flood attacks. Combined with firewalls and IPS, it builds end-to-end multi-layer security.
RealTime Spectrum Guard (RTSG)
Working with Sensor APs, RTSG offers 7×24 RF monitoring, interference identification, graphical spectrum analysis and historical data tracking. It runs in local or monitor mode flexibly.
Wireless Service Awareness & RF Optimization
wIAA optimizes policies for voice and video traffic. The built-in RF Optimizing Engine enhances performance in dense access and media streaming via scheduling, interference filtering, power control and more.
Multiple Authentication
It supports 802.1x (TLS/PEAP/TTLS etc.), MAC and Portal authentication. Local 802.1x and dynamic VLAN/ACL assignment simplify deployment. Built-in Portal server supports page customization for campuses and visitor networks.
IPv4/IPv6 Dual Stack
Fully compatible with Native IPv6. It processes IPv4/IPv6 packets seamlessly during network migration. IPv6 SAVI prevents fake address attacks and secures network access.
End-to-End QoS
Compliant with Diff-Serv, it implements complete PHB mechanisms to guarantee service quality for data, voice and video.
Fast L2/L3 Roaming
Cross-subnet roaming is available. Key caching cuts roaming latency below 50ms within a single controller, fully meeting requirements of voice services.
Probe & Remote Packet Analysis
It conducts Wi-Fi signal detection and data analysis. Remote packet capture and mirroring facilitate fault diagnosis and threat discovery, with interfaces available for third-party servers.
