H3C UAP380-MSG Enterprise-Class Multi-Service IoT Gateway

H3C UAP380-MSG Enterprise-Class Multi-Service IoT Gateway
H3C UAP380-MSG Enterprise-Class Multi-Service IoT Gateway

Large Image :  H3C UAP380-MSG Enterprise-Class Multi-Service IoT Gateway

Product Details:
Brand Name: H3C
Model Number: UAP380-MSG
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $100-1000

H3C UAP380-MSG Enterprise-Class Multi-Service IoT Gateway

Description
Attribute: UAP380-MSG Weight: 1.03kg
Dimensions (H×W×D): 260mm × 182mm × 45mm 1000M Ethernet Ports: 8 Ports (4 POE Outputs Or 2 POE+ Outputs, 1 IoT Interface)
1000M SFP Port: 1 Port
Highlight:

H3C UAP380-MSG IoT Gateway

,

Enterprise-Class Multi-Service Gateway

,

Fibre Channel Switch Gateway

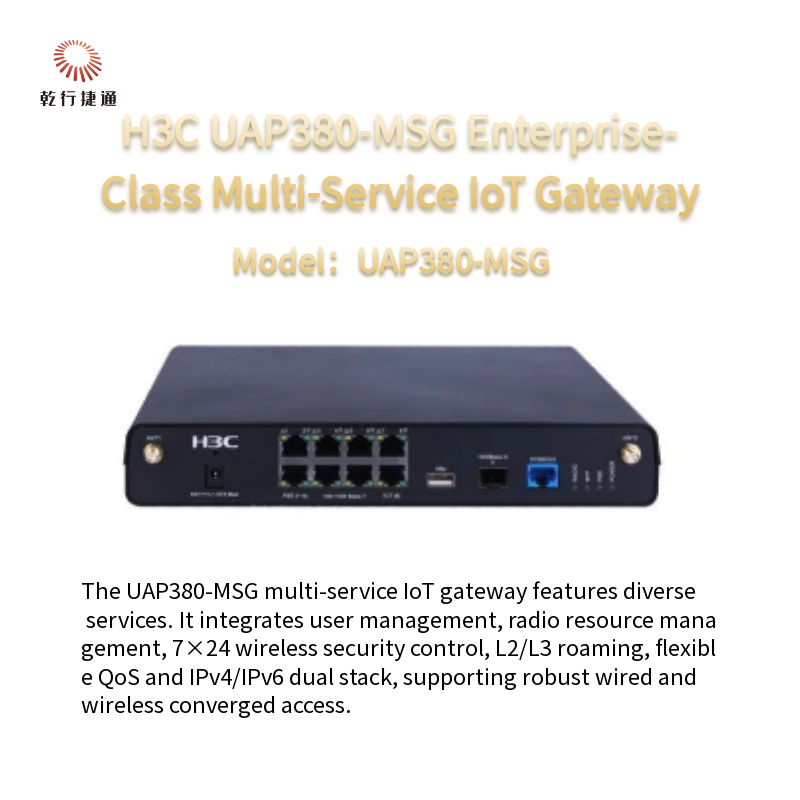

H3C UAP380-MSG Enterprise-Class Multi-Service IoT Gateway


Product Overview

Developed by H3C Technologies Co., Ltd., the H3C UAP380-MSG is an enterprise-class multi-service IoT gateway tailored for commercial scenarios. It is ideal for catering chains, digital stores, apparel shops, supermarkets, auto 4S stores, pharmacies and other new retail venues.

Featuring rich service capabilities, the UAP380-MSG integrates refined user management, comprehensive radio resource management, 7×24 wireless security control, L2/L3 fast roaming, flexible QoS and IPv4/IPv6 dual stack, delivering powerful converged wired and wireless access.

Attribute UAP380-MSG
Weight 1.03kg
Dimensions (H×W×D) 260mm × 182mm × 45mm
1000M Ethernet Ports 8 ports (4 POE outputs or 2 POE+ outputs, 1 IoT interface)
1000M SFP Port 1 port
Local Power Supply Supports 48V DC power supply
Managed AP Quantity 8
Console Port 1 port
Antenna Design Supports both internal and external antennas (2 SMA interfaces)
Operating Frequency Band 802.11ac/n/a: 5.725GHz-5.850GHz; 5.15~5.35GHz (China)
802.11b/g/n: 2.4GHz-2.483GHz (China)
Modulation Technology  MIMO-OFDM (11n): MCS 0-15
MIMO-OFDM (11ac): MCS 0-9
Modulation Scheme 11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM
11ac:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM
Maximum Transmit Power 20dBm
Adjustable Power Step 1dBm
Reset / Restore to Factory Defaults Supported
Status Indicator Blink alternate flashing mode, orange/green/blue flashing modes for different working status, breathing flashing mode for terminal access
Operating Temperature / Storage Temperature 0℃~45℃ / -40℃~70℃
Operating Humidity / Storage Humidity 5%~95% (Non-condensing)
Protection Level IP31
Total Power Consumption <45W (including expansion modules)
Safety Standards GB4943, EN60601-1-2 (Medical), UL/CSA 60950-1, EN/IEC 60950-1, EN/IEC 60950-22
EMC GB9254, EN301 489, EN55022, FCC Part 15, RSS-210
RF Certification FCC Part 15, EN 300 328, EN 301 893, MIIT Radio Transmission Equipment Type Approval
Health Standards FCC Bulletin OET-65C, EN 50385, IC Safety Code 6
Mean Time Between Failures (MTBF) 320 years (Telcordia SR-332 Issue Ⅲ Method Ⅲ)
