Product Details:
|
| Attribute: | S1850v2-28P-HPWR-EI | Packet Forwarding Rate: | 84Mpps |
|---|---|---|---|
| Fixed Ports: | 24 X 10/100/1000Base-T Electrical Ports + 4 X 1000Base-X SFP Optical Ports | Ethernet Features: | Flow Control (802.3x) |
| Multicast: | Supports IGMP V1/V2/V3 Snooping | Security: | User Hierarchical Management |

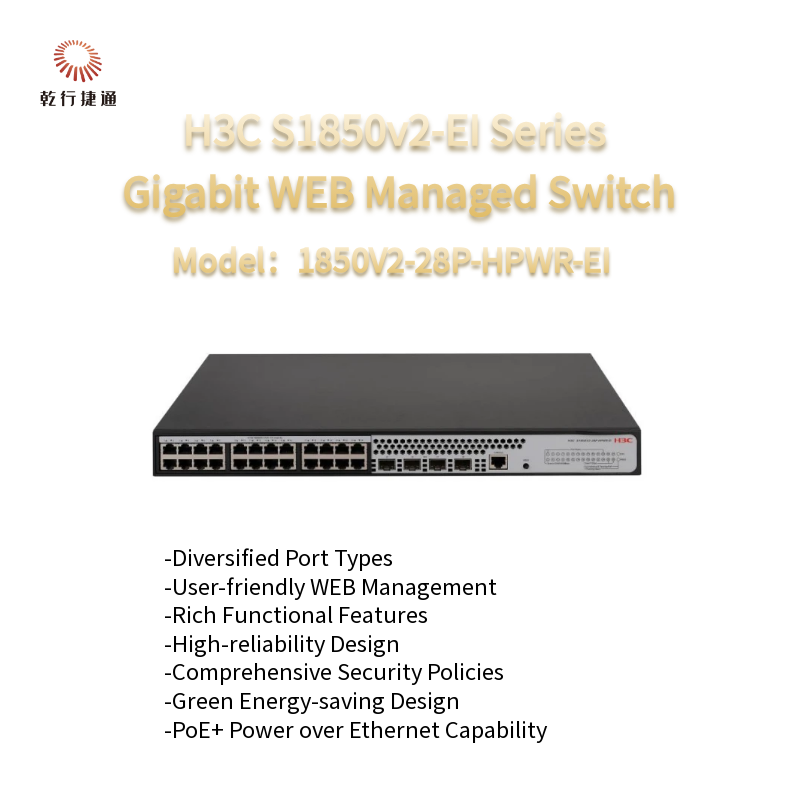

| Highlight: | H3C S1850V2-EI Gigabit switch,web-managed fibre channel switch,28-port PoE Ethernet switch |
||
| Attribute | S1850v2-28P-HPWR-EI |
| Switching Capacity | 336Gbps |
| Packet Forwarding Rate | 84Mpps |
| Management Port | 1 Console Port |
| Fixed Ports | 24 x 10/100/1000Base-T Electrical Ports + 4 x 1000Base-X SFP Optical Ports |
| Electrical Port Attributes | Supports Half-duplex, Full-duplex, Auto-negotiation Working Modes Supports MDI/MDI-X |
| Ethernet Features | Flow Control (802.3x) Energy Efficient Ethernet (EEE) Port Auto Power Saving Dynamic Link Aggregation (802.3ad) / Static Port Aggregation 802.1p, 802.1Q Cable Diagnostics STP(802.1D)/ RSTP(802.1w)/ MSTP(802.1s) TC snooping BPDU Protection/ Root Protection/Loop Protection/TC-BPDU Attack Protection Functions |
| IPv4 | ARP DHCP Client |
| Multicast | Supports IGMP V1/V2/V3 Snooping Supports Fast Leave Mechanism |
| QoS | Supports Diff-Serv QoS Supports SP/WRR/SP+WRR Rate Limiting 802.1p/DSCP Priority Mapping |
| Security | User Hierarchical Management Black Hole MAC Port MAC Address Learning Limit SSL |
| Network Management and Monitoring | WEB Page Configuration FTP, TFTP, Xmodem File Upload and Download Management |
