H3C S1224F Full Gigabit Unmanaged Ethernet Switch 24 Fixed Auto-Negotiation Ethernet Ports

H3C S1224F Full Gigabit Unmanaged Ethernet Switch  24 Fixed Auto-Negotiation Ethernet Ports
H3C S1224F Full Gigabit Unmanaged Ethernet Switch  24 Fixed Auto-Negotiation Ethernet Ports H3C S1224F Full Gigabit Unmanaged Ethernet Switch  24 Fixed Auto-Negotiation Ethernet Ports H3C S1224F Full Gigabit Unmanaged Ethernet Switch  24 Fixed Auto-Negotiation Ethernet Ports

Large Image :  H3C S1224F Full Gigabit Unmanaged Ethernet Switch 24 Fixed Auto-Negotiation Ethernet Ports

Product Details:
Brand Name: H3C
Model Number: S1224F
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $318-1280 pcs Negotiable

H3C S1224F Full Gigabit Unmanaged Ethernet Switch 24 Fixed Auto-Negotiation Ethernet Ports

Description
Item: S1224F Switching Capacity: 52 Gbps
Packet Buffer: 4 Mbits Packet Forwarding Rate: 38.7 Mpps
Input Voltage: 100V~240V AC, 50/60Hz Dimensions (W×D×H): 440×173×44 Mm
Highlight:

H3C S1224F Gigabit Ethernet Switch

,

24-port unmanaged Ethernet switch

,

Full Gigabit auto-negotiation switch


H3C S1224F Ethernet Switch

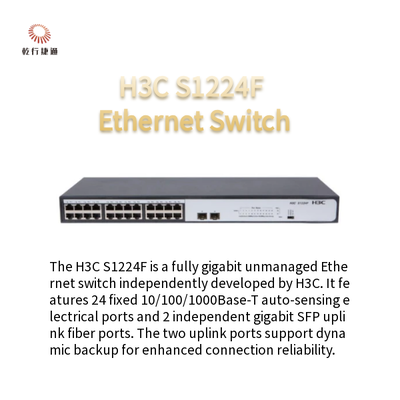

The H3C S1224F is a full Gigabit unmanaged Ethernet switch independently developed by H3C. It is equipped with 24 fixed 10/100/1000Base-T auto-sensing copper ports and 2 dedicated Gigabit SFP uplink fiber ports. The two uplink ports support dynamic backup to enhance connection reliability and can be aggregated to expand uplink bandwidth. It also provides three operating modes: Standard Switching, Network Clone and Aggregation Uplink. The switch features a 19-inch steel enclosure for standard rack mounting.

Item S1224F
Dimensions (W×D×H) 440×173×44 mm
Fixed Ports 24 × 10/100/1000 Mbps auto-sensing Ethernet ports2 × 1000Base-X SFP ports
Ethernet Port Features Connector: RJ-45Supports half-duplex, full-duplex and auto-negotiationMDI/MDI-X auto-adaptive
Fiber Port Features Connector: LC1000 Mbps, full-duplex
MAC Address Table 8K
Packet Buffer 4 Mbits
Packet Forwarding Rate 38.7 Mpps
Switching Capacity 52 Gbps
Input Voltage 100V~240V AC, 50/60Hz
Power Consumption <20W
Lightning Protection Common-mode protection: 6KV
Operating Temperature 0℃~40℃
Operating Humidity 5%~95% RH, non-condensing
Storage Temperature -10℃~70℃
Storage Humidity 5%~95%, non-condensing
Heat Dissipation Fanless, natural cooling



Product Features

  • Supports aggregation of 2 independent uplink fiber ports, with dynamic backup between them to improve connection reliability and increase bandwidth.
  • Three operating modes: Standard Switching, Network Clone, and Aggregation Uplink.
  • Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and IEEE 802.3z standards.
  • Equipped with 24 auto-sensing 10/100/1000M Ethernet ports and 2 Gigabit SFP ports.
  • Adopts a shared buffer architecture, which multiplies the available buffer space for each port and significantly enhances forwarding performance under burst heavy traffic.
  • Integrated professional-grade lightning protection circuitry, providing 6KV common-mode protection.
  • Low power consumption, fanless, and noiseless design.

Notices:
1. Open the packaging, check the products carefully, and take them gently.
2. The product is a brand new original unopened equipment.
3. All products 1 year warranty, and the buyer is responsible for the return shipping cost.

International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
