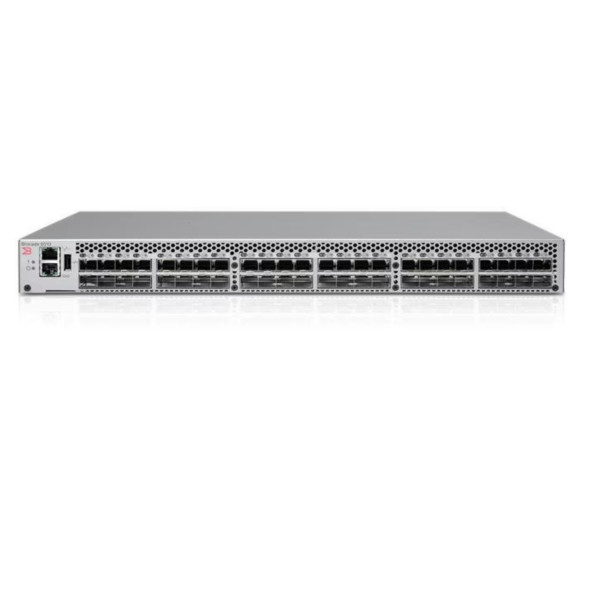

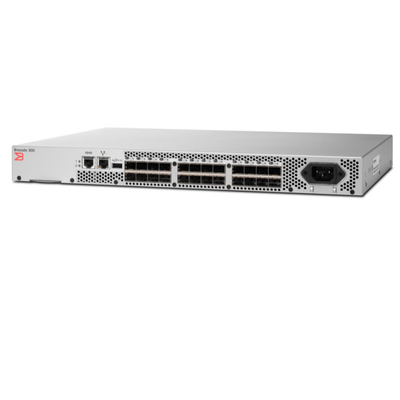

DS-6620B DS-6630B Fibre Channel Switch 32Gb/S

DS-6620B DS-6630B Fibre Channel Switch 32Gb/S
DS-6620B DS-6630B Fibre Channel Switch 32Gb/S DS-6620B DS-6630B Fibre Channel Switch 32Gb/S DS-6620B DS-6630B Fibre Channel Switch 32Gb/S DS-6620B DS-6630B Fibre Channel Switch 32Gb/S DS-6620B DS-6630B Fibre Channel Switch 32Gb/S

Large Image :  DS-6620B DS-6630B Fibre Channel Switch 32Gb/S

Product Details:
Brand Name: DELL EMC
Model Number: DS-6610B
Payment & Shipping Terms:
Price: $2799-3500 pcs Negotiable
Packaging Details: 20/pcs/week

DS-6620B DS-6630B Fibre Channel Switch 32Gb/S

Description
Switch Models:: DS-6610B And DS-6610B-L Performance:: 32Gb/s SFPs Can Operate At 32, 16 Or 8Gb/s; 16Gb/s SFPs Will Operate At 16, 8 And 4Gb/s
Maximum Ports:: Up To 24 Ports Minimum Ports:: 8-port Base
Base Chassis:: 1U Aggregate Bandwidth:: 768 Gb/s
High Light:

DELL EMC 32gb Fibre Channel Switch

,

DS-6630B Fibre Channel Switch

,

DS-6620B 32gb Fc Switch

Emc Connectrix B Series Dell Fibre Channel Switches DS-6600B DS-6610B DS-6620B DS-6630B 32Gb/S

Description
Switch Models: DS-6610B And DS-6610B-L Performance: 32Gb/s SFPs Can Operate At 32, 16 Or 8Gb/s; 16Gb/s SFPs Will Operate At 16, 8 And 4Gb/s
Maximum Ports: Up To 24 Ports Minimum Ports: 8-port Base
Base Chassis: 1U Aggregate Bandwidth: 768 Gb/s
High Light:

Emc DS-6600B Dell Fibre Channel Switches

,

DS-6620B Dell Fibre Channel Switches

,

Emc DS-6610B Dell Fiber Channel Switch







Connectrix Director and Switch Model Numbers
All Connectrix models listed in the tables below support auto-sensing speeds for backward compatibility, non-disruptive
code upgrades and redundant hot-swappable components for high availability. All 16Gb/s, 32Gb/s and 64Gb/s Fibre
Channel switches and directors support NVMe/FC.



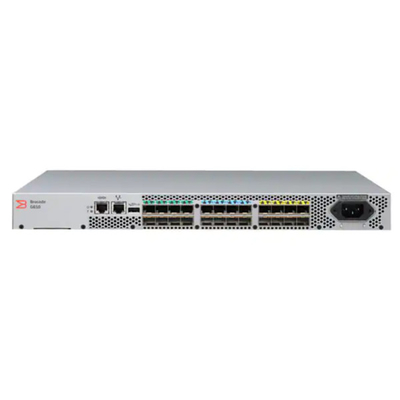

DS-6610B - Designed to support the SAN requirements of small-to-medium-sized environments, the Connectrix DS-
6610B is a 24-port switch that offers high performance and economy. The 1U base chassis of the DS-6610B is
prepopulated with eight 16Gb/s or 32Gb/s Fibre Channel Small Form Factor Pluggable (SFP+) shortwave optics. The
ports on demand (PoD) kits allow expansion in 8-port increments.



DS-6600B Series Switches
System Architecture Technical Specification

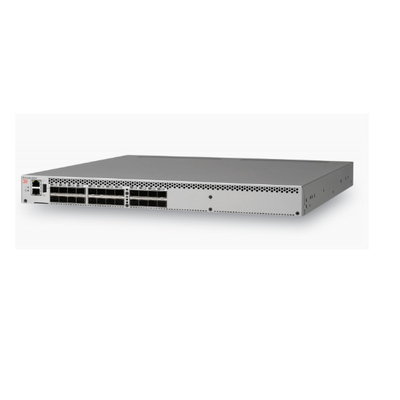

Fibre Channel Ports DS-6610B
The DS-6610B base chassis models includes eight active 32Gb/s capable ports that are populated with eight
16Gb/s SFPs or eight 32Gb/s SFPs. The 8-port port-on-demand (PoD) models allow the switch to support
additional 16 ports reaching a maximum of 24 ports. The other DS-6610B model which ends in “-EP” comes
fully populated with 24 16Gb/s SFPs and includes the Enterprise Package.
DS-6610B-L Series
DS-6610B-L models are functionally equivalent to the DS-6610B switches above, however; the “-L” models
include a unique Limited Lifetime Warranty. The Limited Lifetime Warranty remains in effect until the end of
support life for the DS-6610B-L -switch. The DS-6610B-L switches also include an “-EP” fully populated with
24 32Gb/s SFPs and the Enterprise Package
DS-6620B and DS-6620B-V2
The DS-6620B and DS-6620B-V2 feature 48 Fibre Channel SFP+ ports and 4 QSFP ports. There are two
base models which have 24 active 32Gb/s or 16Gb/s ports, populated with 32Gb or 16Gb/s shortwave SFPs.
The Ports on Demand (PoD) license activates 12 additional ports and includes 12 shortwave SFPs. The QSFP
Ports On Demand license activates the four QSFP ports and contains four shortwave QSFPs. The enterprise
switch model fully populates the SFP+ ports with forty-eight shortwave SFPs and comes fully licensed with the
Enterprise Bundle (Fabric Watch, Trunking, Performance Monitoring, Extended Fabric, Fabric Vision).

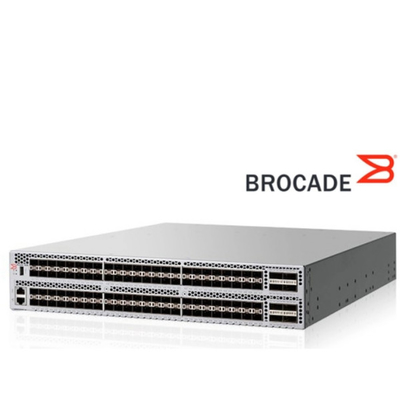

DS-6630B and DS-6630B-V2
The DS-6630B and DS-6630B-V2 switch models supports up to 128 ports. There are 96 standard SFP
32Gb/s capable ports and eight Quad Small Form-factor Pluggable (QSFP) ports which support an additional
32 ports.
Performance 32Gb/s SFPs can operate at 32, 16 or 8Gb/s; 16Gb/s SFPs will operate at 16, 8 and 4Gb/s
Frame Buffers DS-6610B - 2K dynamically allocated
DS-6620B and DS-6620B-V2 - 15,360 dynamically allocated
DS-6630B and DS-6630B-V2 - 15,360 dynamically allocated
Aggregate Bandwidth DS-6610B – 768 Gb/s
DS-6620B and DS-6620B-V2 – 2Tb/s
DS-6630B and DS-6630B-V2 – 4Tb/s
Class of service Class 2, Class 3, Class F (Inter-switch Frames)
Port types DS-6610B – F_Port, E_Port, M_Port, D_Port (ClearLink Diagnostics Port) on 24 SFP+ ports; Access Gateway
mode: F_Port and NPIV-enabled N_Port
DS-6620B and DS-6620B-V2 - D_Port (ClearLink Diagnostic Port), E_Port, EX_Port, F_Port, AE_Port;
optional port-type control Brocade Access Gateway mode: F_Port and NPIV-enabled N_Port
DS-6630B and DS-6630B-V2 - D_Port (ClearLink Diagnostic Port), E_Port, EX_Port, F_Port, AE_Port,
optional port-type control.
Fabric services BB Credit Recovery; Brocade Advanced Zoning (Default Zoning, Port/WWN Zoning, Peer Zoning);
Congestion Signaling; Dynamic Path Selection (DPS); Extended Fabrics; Fabric Performance Impact
Notification (FPIN); Fabric Vision; FDMI; FICON CUP (DS-6620B only); Flow Vision; F_Port Trunking; FSPF;
Integrated Routing; ISL Trunking; Management Server; Name Server; NPIV; NTP v3; Port
Decommission/Fencing; QoS; Registered State Change Notification (RSCN); Target-Driven Zoning; Traffic
Optimizer; Virtual Fabrics (Logical Switch and Logical Fabric; DS-6610B requires FOS 9.1.x and higher); VMID
and AppServer.
Note: Some fabric services do not apply or are unavailable in Access Gateway mode.
Hot swappable components DS-6610B – The DS-6610B has an embedded power supply / fan and it is non-replaceable. The entire switch
is a Field Replaceable Unit (FRU). The only FRU’s on the DS-6610B are the SFP’s. The DS-6610B will
support in-service firmware upgrades.
DS-6620B and DS-6620B-V2 – Dual power supplies with three embedded cooling fan FRUs, SFPs and QSFP
optics. The fans are connected to the power supplies and are not themselves replaceable.
DS-6630B and DS-6630B-V2 – Dual power supplies, three fan FRUs, SFPs and QSFPs
Installation options All models can be installed in a standard, customer-supplied, 19-inch Electronic Industries Alliance (EIA) rack
Scalability Refer to Dell E-Lab Navigator smart phone App downloadable from the Apple or Google Store or E-Lab
Navigator found at this link: https://www.delltechnologies.com/en-us/products/interoperability/elab.htm
Maximum frame size 2,112-byte payload
Management Technical Specification
Minimum Fabric Operating System
(FOS)
DS-6610B FOS 8.1.0a or higher
DS-6620B FOS 8.0.0 or higher
DS-6620B-V2 FOS 9.0.0 or higher
DS-6630B FOS 8.0.0 or higher
DS-6630B-V2 FOS 9.0.0 or higher
Management Advanced Web Tools. SSH, Auditing, Syslog NTP v3, CLI, SMI-S compliant; REST API, HTTP, SNMP v1/v3
(FE MIB, FC Management MIB)
SANnav Management SANnav Management Portal and SANnav Global View empower IT administrators to be more efficient and
productive by providing comprehensive visibility into the SAN environment. SANnav only supports open
systems and requires FOS v7.4 or higher.
Legacy Connectrix B-Series SAN
Manager
Connectrix Manager Converged Network Edition (CMCNE)
Management access 10/100/1000 Mb/s Ethernet (RJ-45), In-band over Fibre Channel, Serial port (RJ-45), and one USB port
Firmware upgrades Non-disruptive download and activation
Security DS-6610B
DH-CHAP (between switches and end devices), FCAP switch authentication; HTTPS, IPsec, IP filtering, LDAP
with IPv6, Open LDAR, Port Binding, RADIUS, TACACS+, user-defined Role-based Access Control (RBAC),
Secure Copy (SCP), Secure RPC, Secure Syslog, SSH v2, SSL, Switch Binding, Trusted Switch
DS-6620B, DS-6620B-V2, DS-6630B, DS-6630B-V2
AES-GCM-256 encryption on ISLs; DH-CHAP (between switches and end devices), FCAP switch
authentication; HTTPS, IPsec, IP filtering, LDAPwith IPv6, OpenLDAR, Port Binding, RADIUS, TACACS+,
user-defined Role-based Access Control (RBAC), Secure Copy (SCP), Secure RPC, Secure Syslog, SSH v2,
SSL, Switch Binding, Trusted Switch
Diagnostics ClearLink optics and cable diagnostics, including electrical/optical loopback, link traffic/latency/distance, flow
mirroring; built-in flow generator, POST and embedded online/offline diagnostics, including environmental
monitoring, FC ping and Pathinfo (FC traceroute), frame viewer, non-disruptive daemon restart, optics health
monitoring, power monitoring, RAS trace logging, and Rolling Reboot Detection (RRD)
Call home Call home integration with SANnav and Connectrix Manager Converged Network Edition
Optional license-key features Enterprise Package - includes Fabric Vision, Extended Fabric and ISL Trunking
Mainframe License - includes ISL Trunking, Fabric Vision and FICON Control Unit Port (CUP)
Integrated Routing – allows ports to be configured as EX-Ports supporting FC-FC routing
Note: “-EP” DS-6600B models include the Enterprise Package
Physical Specifications Technical Specification
Enclosure DS-6610B - chassis supports rear-to-front (RTF) airflow
DS-6620B and DS-6620B-V2 - There are two air flow options: front-to-rear (FTR) and rear-to-front (RTF)
DS-6630B and DS-6630B-V2 - There are two air flow options: front-to-rear (FTR) and rear-to-front (RTF)
Dimension and weight DS-6610B
Height x Width x Depth: 1.69 x 16.88 x 12.07 inches, (42.9 x 428.8 x 306 mm) , 1 RU
Weight fully populated: 13 lbs (5.76 kg)
DS-6620B and DS-6620B-V2
Height x Width x Depth: 1.73x17.32x14.0 inches (43.9mmx440mmx355.6mm), 1RU
Weight with 2 power supplies and no transceivers: 17lbs (7.73kg)
DS-6630B and DS-6630B-V2
Height x Width x Depth: 3.41x17.32x24.0 inches (86.7mmx440mmx609.6mm), 2RU
Weight with 2 power supplies and no transceivers: 42lbs (19.05kg)
Power Requirements Technical Specification
Power supply DS-6610B - Switch chassis includes one fixed power supply. Note: Although the DS-6610B ships with a
single power supply, two power cords are Included. Only one power cord is required.
DS-6620B and DS-6620B-V2 - Switch chassis includes dual, hot-swappable power supplies with integrated
cooling system
DS-6630B and DS-6630B-V2 - Switch chassis includes dual, hot-swappable power supplies with integrated
cooling system
AC Input DS-6610B - 90 V to 264 V ~2.2A
DS-6620B and DS-6620B-V2 - 90 V to 264 V ~3.5A
DS-6630B and DS-6630B-V2 - 90 V to 264 V ~12A
Input line frequency 47-63 Hz
Power consumption DS-6610B - 77 WATTS with all 24-ports populated
DS-6620B and DS-6620B-V2 - 206 WATTS with all 64 ports populated
DS-6630B and DS-6630B-V2 - 942 Watts with all 128-ports
Environment Technical Specification
Operating environment Temperature: 0°C to 40°C/32°F to 104°F
Humidity: 10% to 85% (non-condensing)
Non-operating environment Temperature: -25°C to 70°C/-13°F to 158°F
Humidity: 10% to 90% (non-condensing)
Operating altitude Up to 3000m (9,842 ft)
Storage altitude Up to 12 km (39,370 ft)
Shock Operating: Up to 20G, 6 ms half-sine
Non-operating: Half sine, 33G 11 ms, 3G axis
Vibration Operating: 0.5g sine, 0.4 grms random, 5 Hz to 500 Hz
Non-operating: 2.0g sine, 1.1 grms random, 5 Hz to 500 Hz
Heat dissipation DS-6610B - 24 ports at 215 BTU/hr
DS-6620B and DS-6620B-V2 64 ports at 716 BTU/hr
DS-6630B and DS-6630B-V2 - 128 ports at 3512 BTU/hr



Table 1: Switch Models

Connectrix Fibre Channel
Switch Models
Maximum Fibre Channel Speed Maximum Ports Minimum Ports
DS-6610B and DS-6610B-L 32Gb/s Up to 24 ports 8-port base
DS-6620B and DS-6620B-V2 32Gb/s Up to 64 ports 24-port base
DS-6630B and DS-6630B-V2 32Gb/s Up to 128 ports 48-port base
DS-7720B 64Gb/s Up to 64 ports 24-port base
DS-7730B 64Gb/s Up to 128 ports 48-port base
MDS-9148S 16Gb/s Up to 48 ports 12-port base
MDS-9132T 32Gb/s Up to 32 ports 8-port base
MDS-9148T 32Gb/s Up to 48 ports 24-port base
MDS-9396T 32Gb/s Up to 96 ports 48-port base



Table 2: Multi-purpose Switch Models

Connectrix Multi-Purpose Switch Models Ports and Maximum Speeds Use Cases and Protocols
MP-7810B Twelve 32Gb capable Fibre Channel ports
and six 1/10GbE SFP+ ports
Distance Extension with FCiP, Fibre Channel
Protocol (FCP) and IP Extension (IPEX)
MP-7840B 24 16Gb Fibre Channel ports, sixteen 1/10
Gigabit Ethernet (GbE) ports and two 40GbE
ports
Distance Extension with FCiP, Fibre Channel
Protocol (FCP), IP Extension (IPEX) and
Mainframe FICON
MDS-9220i Up to twelve 32-Gbps Fibre Channel ports,
four 1/10-, two 25-, and one 40- Gigabit
Ethernet IP storage services ports
Distance Extension with FCiP and Fibre
Channel support. (FICON qualification coming
soon.)
MDS-9250i 40 16Gb FCP ports, two 10GbE ports and
eight FCoE
Distance Extension with FCiP, Mainframe
FICON, FCoE and Fibre Channel



Table 3: Enterprise Director Models

Connectrix Director Models Maximum Fibre Channel Speed Maximum Ports Mainframe Support
ED-DCX7-8B 64Gb/s Up to 512 ports
ED-DCX7-4B 64Gb/s Up to 256 ports
ED-DCX6-8B 32Gb/s Up to 512 ports
ED-DCX6-4B 32Gb/s Up to 256 ports
MDS-9718-V3 32Gb/s (64Gb/s ready) Up to 768 ports
MDS-9710-V2 32Gb/s (64Gb/s ready) Up to 384 ports
MDS-9706-V2 32Gb/s (64Gb/s ready) Up to 192 ports



Table 4: Connectrix B-Series Optional Features

Feature Description
Fabric Vision Provides visibility and insight across storage networks through the Monitoring and Alerting Policy Suite
(MAPS), Fabric Performance Impact (FPI) Monitoring, ClearLink Diagnostics, Flow Vision and Single Bulk
Configurations.
ISL Trunking Provides the ability to aggregate multiple physical links to one logical link for enhanced network
performance and fault tolerance.
Extended Fabrics Provides greater than 10 kilometers of switched fabric connectivity at full bandwidth over long distances
depending on the platform this can be up to 3000 kilometers. Extended Fabric is required for any Inter
Switch Link (ISL) that is greater than 10 kilometers.
Mainframe FICON CUP Includes FICON management features required for mainframe environments. FICON supports high speed
connectivity between mainframes and I/O devices. Control Unit Port (CUP) allows mainframe tools to
manage connectivity between ports, monitor fabric performance and collect critical diagnostic information
Enterprise Software Bundle Enterprise Bundle includes Fabric Vision, ISL Trunking, and Extended Fabrics.



Table 5: Connectrix MDS Series Optional Features
Standard features for the Connectrix MDS product line include Port Channel, VSAN, VSAN Trunking, Inter-VSAN Routing,
NPV, ISL and HBA Diagnostics, Port Monitoring, Slow Drain (Congestion) Detection, Virtual machine transparency,
hardware-enforced zoning. ACLs, per VSAN Role-based Access Control (RBAC), QoS policies, sophisticated diagnostics
and much more. Optional features provide a way to purchase the feature you need.

Feature Description Features
Enterprise Package Includes advanced traffic engineering and advanced security
features for enterprise SANs
Advanced traffic management includes Inter-VSAN
Routing, Quality of Service (QoS) features, Extended
credits. Security features include switch-to-switch and
host-to-switch authentication, LUN zoning, read-only
zones, port security, VSAN based access control, IP
Sec for iSCSI and FCiP, IKE Digital Certificates and
fabric binding for Fibre Channel
SAN Extension over IP Provides integrated, cost-effective and reliable business
continuance solutions that use the existing IP infrastructure
Supports SAN Extension Tuner, Inter-VSAN Routing
for FCiP and FCiP protocol support, FCiP compression,
FCiP Write Acceleration, FCiP Read/Write Tape
Acceleration
I/O Acceleration (IOA) IOA capability is available on MDS 9700 series directors from
NX-OS 8.2(1) release. It can be enabled using the I/O
acceleration package license which is available to configure
separately on a module
Transport and speed-independent acceleration that
accelerates disk and tape traffic over any 2/4/8/16/32G
Fibre Channel port. Works over Metropolitan Area
Networks (MANs) and WANs. Data compression in
conjunction with FCIP ISLs. High availability using Port
Channels with acceleration over Fibre Channel and
FCIP ISLs. Transport Independent Write Acceleration
(WA) of Disk Replication traffic and Tape Acceleration
(TA) of Tape Replication Traffic.
Mainframe Package Includes features required for mainframe environments.
FICON supports high-speed connectivity between mainframe
servers and I/O devices
VSAN for FICON and FCP Intermixing, FICON Control
Unit Port (CUP), Fabric Binding, Switch Cascading,
FICON Native Mode Channel-to channel operation,
persistent FICON FCID assignment, Port Swapping for
host channel cable connections, FICON tape
acceleration.
SAN Analytics The 32Gb director switching module and switch platforms
support SAN Analytics
SAN Insights was designed for customers that would
like to leverage the data gathering, computation and
end-to-end visualization of data provided by the
analytics engine that resides on the MDS 32Gb/s
switching module through DCNM. SAN Telemetry
Streaming is for customers who use Virtual Instruments
(VI) or another 3rd party or custom solution to display
the data provided by the MDS analytics engine.









Contact Details
Beijing Qianxing Jietong Technology Co., Ltd.

Contact Person: Sandy Yang

Tel: 13426366826

Send your inquiry directly to us (0 / 3000)
