Product Details:
|
Features: | Technical Specification | Processor: | Up To Two 3rd Generation Intel Xeon Scalable Processors, With Up To 40 Cores Per Processor |
---|---|---|---|
Memory: | 16 DDR4 DIMM Slots, Supports RDIMM 1 TB Max, Speeds Up To 3200 MT/s • Supports Registered ECC DDR4 DIMMs Only Storage Controllers | Storage Controllers: | PERC H745, HBA355I, S150, H345, H355, H755, H755N •ID 2 X M.2 SSDs 240 GB Or 480 GB Boot Optimized Storage Subsystem (BOSS-S2): HW RA |
StS/SATA/NVMe (HDD/SSD) Max 368.84 TBorage: | 0 Drive Bay • Up To 8 X 3.5-inch SAS/SATA (HDD/SSD) Max 128 TB • Up To 12 X 3.5-inch SAS/SATA (HDD/SSD) Max 192 TB • Up To 8 X 2.5-inch SAS/SATA/NVMe (HDD/SSD) Max 61.44 TB • Up To 16 X 2.5-inch SAS/SATA (HDD/SSD) Max 122.88 TB • Up To 16 X 2.5-inch (SAS/S | Power Supplies: | 600W Platinum Mixed Mode (100-240Vac Or 240Vdc) Hot Swap Redundant • 800W Platinum Mixed Mode (100-240Vac Or 240Vdc) Hot Swap Redundant • 1100W Titanium Mixed Mode (100-240Vac Or 240Vdc) Hot Swap Redundant • 1400W Platinum Mixed Mode (100-240Vac Or 240Vdc) |
Highlight: | 2U Poweredge R750xs Rack Server,Dual Socket Poweredge R750xs Rack Server,2U R750xs Dell Poweredge Server |

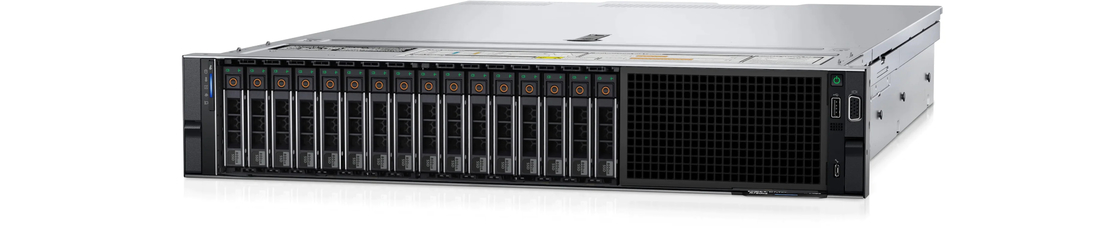

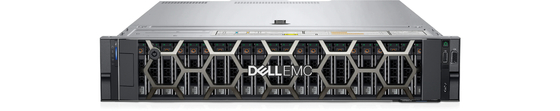

PowerEdge R750xs
T
he Dell EMC PowerEdge R750xs, with 3rd generation
Intel® Xeon® Scalable processors, is purposefully
designed with distinctive, customer-defined requirements
to deliver enterprise performance for scale-out
environments.
Innovate at scale with challenging and emerging workloads
The new Dell EMC PowerEdge R750xs is a 2U, dual-socket, feature-optimized server with an ideal selection of CPU,
I/O, and storage performance for scale-out environments. With it, you can:
• Add additional power and cores: Up to two 3rd generation Intel® Xeon® Scalable processors, up to 32 cores per
socket
• Accelerate in-memory workloads: Up to 16 DDR4 RDIMMS, 3200 MT/sec
• Improve throughput, reduce latency: With up to 5 PCIe Gen4 slots, OCP 3.0 for network cards, and SNAP I/O
support
• Include flexible storage: Up to 12x 3.5” SAS/SATA HDDs or SSDs; or up to 16x 2.5” SAS/SATA HDDs or SSDs, and
8 NVMe drives
• Enable virtualization, medium VM density or VDI, and software-defined storage node workloads
Increase efficiency and accelerate operations with autonomous collaboration
The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT
infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience
by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage
PowerEdge R750xs
portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and
protect your technology environment.
• Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and
control for better server management
• Intelligent automation lets you enable cooperation between human actions and system capabilities for added
productivity
• Integrated change management capabilities for update planning and seamless, zero-touch configuration and
implementation
• Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools for onpremise,
edge and cloud environments
Built-in proactive resilience through a complete portfolio of
solutions
From the silicon and supply chain all the way to asset retirement, know
that your servers are safe and secure with innovative Dell EMC and
Intel technologies. We give you the confidence of cyber resilience with
enterprise class security that minimizes risk for any organization, from
small business to hyperscale.
• Start strong with platform security features, even before the server is
built, including Secured Component Verification and Silicon Root of
Trust
• Stay strong with continuous innovations that bolster cyber resilience,
like OpenManage Secure Enterprise Key Manager and Automatic
Certificate Enrollment
• Outmaneuver threats with intelligence, automation, and recovery
tools that include iDRAC9 Telemetry, BIOS live scanning, and Rapid OS rec
DELL R750 | ||
Processor | Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor | |
Memory | 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s |
|
Storage controllers Internal Boot | Internal Controllers: PERC H330, H730P, H740P, HBA330, H750, HBA350i External Controllers: H840, HBA355e, 12 Gbps SAS HBASoftware RAID:S140Boot Optimized Storage Subsystem (BOSS):HWRAID 2 x M.2 SSDs 240GB, 480GB Internal Dual SD Module1 | |
Storage | Front drive bays: Up to 16 x 2.5” SAS/SATA (HDD/SSD) max 122.88TB or up to 8 x 3.5” SAS/SATA HDD max 128TB Optional DVD-ROM, DVD+RW | |
Drive bays | Front bays: • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB • Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.84 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB |
|
Power supplies | 800 W Platinum AC/240 mixed mode • 1100 W Titanium AC/240 mixed mode • 1400 W Platinum AC/240 mixed mode • 2400 W Platinum AC/240 mixed mode |
|
Dimensions | • Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches) • Depth – 758.3 mm (29.85 inches) - without bezel |
|
Embedded management | iDRAC9, iDRAC Direct, iDRAC RESTful with Redfish, Quick Sync 2 wireless module (optional) | |
Bezel | Optional LCD Bezel or Security bezel | |
OpenManage™ Software | OpenManage Enterprise OpenManage Mobile OpenManage Power Manager | |
I/O & Ports | Rear Ports • 1 x USB 2.0 • 1 x Serial (optional) • 1 x USB 3.0 • 2 x RJ-45 • 1 x VGA (optional for liquid cooling configuration) |
