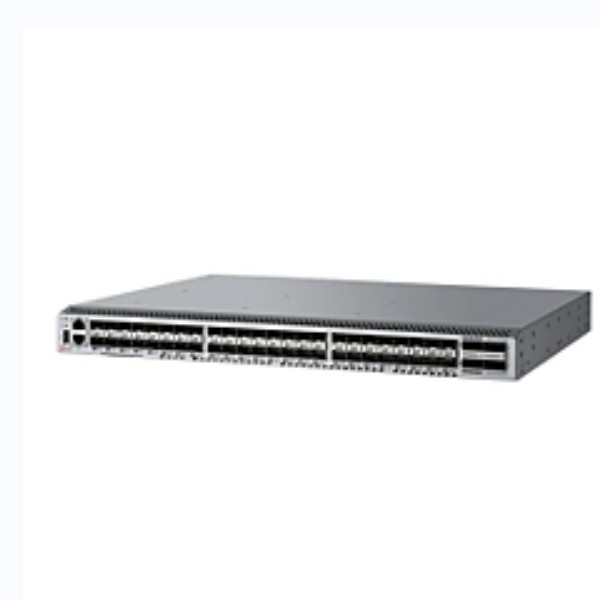

Brocade G620 32gb Fc Switch In Computer Storage Field

Brocade G620 32gb Fc Switch In Computer Storage Field
Brocade G620 32gb Fc Switch In Computer Storage Field Brocade G620 32gb Fc Switch In Computer Storage Field Brocade G620 32gb Fc Switch In Computer Storage Field Brocade G620 32gb Fc Switch In Computer Storage Field

Large Image :  Brocade G620 32gb Fc Switch In Computer Storage Field

Product Details:
Brand Name: Brocade
Model Number: Brocade620
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $1310.00~13100.00 Negotiable
Packaging Details: Carton Packaging
Payment Terms: T/T
Supply Ability: 1-1000

Brocade G620 32gb Fc Switch In Computer Storage Field

Fibre Channel Switch: Brocade620Switch Fibre Channel Switch: Brocade620 Fibre Channel Switch
Fiber Optic Transmission: 32Gfiber Optic Transmission Number Of Ports: Brocade FC Switches 32G 24PORT
High Light:

Brocade G620 32gb Fc Switch


Computer Storage Field Fc Switch


G620 32gb Brocade Fibre Channel Switch




BrocadeG620 Specifications
Fiber Channel port Switch mode (default): 24port configurations
(Expandable via Port on Demand [PoD] license to 12-port
port increments); common (E, F, M, D, EX) ports
Brocade Access Gateway (Access Gateway) Default Port
Port mapping: 40 F_Ports, 8 N_Ports
scalability Full-featured Fabric architecture with up to 239 switches
change machine
Standard maximum support 6000 active nodes in Brocade Fabric OS® Fabric
nodes, 56 switches, and 19 hops; Brocade
31 switches and 3 hops in the M-EOS Fabric architecture;
Larger fabrics can be configured on demand
performance 2, 4, 8, and 16 Gbps port rate auto-negotiation; 10 Gbps,It can also be optionally programmed to a fixed port speed.
ISL Trunking Frame-based trunking, up to 8 links per ISL trunk
16 Gbps ports; up to 128 per ISL trunk
Gbps throughput. Using the included in Fabric OS
DPS implements switch-based cross-ISL load balancing. Opposite
There is no limit to the number of link bundling groups that can be configured in the switch.
total bandwidth 68 Gbps end-to-end full-duplex bandwidth
Maximum Fabric Latency Locally switched port latency is 700 ns; encryption/compression latency
5.5 µsec per node; forward error correction between E_Ports
(FEC) adds 400 ns (enabled by default).
Maximum frame 2112 bytes payload
framebuffer 8192, dynamic allocation
Class of service Class 2, Class 3, Class F (inter-switch frame)
Port Type D_Port (Diagnostic Port), E_Port, EX_Port, F_Port
Port, M_Port (mirror port); based on switch type
self-discovery (U_Port); optional port type control
Brocade Access Gateway Mode: F_Port and Branch
N_Port with NPIV Technology
Data traffic type Fabric switches support unicast traffic
Media Type Hot-swappable, industry-standard Small Form-Factor
Pluggable (SFP+), LC Connector; Shortwave (SWL); Long
wave (LWL); extra long wave (ELWL); maximum distance depends on
Fiber optic cable type and port speed. Supports SFP+ (2, 4, 8, 10
and 16 Gbps) optical transceivers.
USB port 1 USB port for system log file download or microcode upgrade
Fabric architecture service Brocade Advanced Performance Monitoring (APM) (includes E_Ports, F_
Top users of Ports and Fabric patterns); Brocade applies
Responsive network (inbound rate limiting, traffic isolation, QoS);
Bottleneck detection; Brocade advanced partitioning (default partition, port/
WWN Zoning, Broadcast Zoning); Dynamic Fabric
Provisioning (DFP); Dynamic Path Selection (DPS);
Extended Fabrics; Enhanced BB Credit Restoration;
Brocade Fabric Watch; FDMI; Frame redirection;
Frame-based link bundling; FSPF; integrated routing; IPoFC;
ISL Trunking; Management Server; NPIV; NTP v3;
Port Fencing; Registration Status Change Notification (RSCN);
Reliable Commit Service (RCS); the server should
Application Optimization (SAO); Simple Name Server (SNS); Virtual
Quasi-Fabrics Architecture (Logical Switches, Logical Fabrics
expand Fiber Channel, "In-flight" compression (Brocade LZO)
and encryption (AES-GCM-256); for DWDM MAN
10 Gbps Fiber Channel connected
FICON FICON FICON® Stacking; lossless DLS support; FICON CUP
manage Brocade G620 32gb Fc Switch In Computer Storage Field 0
Supported Management Software
Supported management software HTTP, SNMP v1/v3 (FE MIB, FC Management
MIB), SSH; Audit, Syslog; Brocade Advanced
Web Tools, APM, Brocade Fabric Watch; Brocade
Network Advisor SAN Enterprise or Brocade
Network Advisor SAN Professional/Professional
Plus; command line interface (CLI); SMI-S compliant;
domain; trial license for add-on functionality
safety Security AES-GCM-256 encryption over ISL; DH-CHAP (exchange
between machine and end device), FCAP switch authentication;
FIPS 140-2 L2 compliant, HTTPS, IPsec, IP overlay
filtering, LDAP with IPv6, port binding, RADIUS, user
Defined role-based access control (RBAC), Secure
Copy (SCP), Secure RPC, SFTP, SSH v2,
SSL, switch binding, Trusted Switch
Management access 10/100 Mbps Ethernet (RJ-45) interface over fiber optic
Channels for in-band management, 1 serial port (RJ-45), 1 USB
Diagnostics D_Port offline diagnostics, including electrical/optical loopback, link traffic/
Delay/distance; POST and embedded online/offline diagnostics, including
including environmental monitoring, FCping and Pathinfo (FC traceroute),
Frame Viewer, Non-destructive Daemon Reboot, Port Mirror
like (SPAN ports), fiber optic component health monitoring, power
Monitoring, RAStrace logs, and Rolling Reboot Detection
Mechanical parameters
Enclosure Front and rear ventilation; rear power supply, 1U
Rear-front ventilation; rear-end power supply, 1U
size Dimensions Width: 438 mm (17.23 in)
Height: 43 mm (1.7 in)
Depth: 443 mm (17.45 inches)
System weight 9.16 kg (20.20 lbs), dual power FRUs, no transceivers

Operating environment

Temperature: 0 to 40°C
Humidity: 10% to 85%, non-condensing
Non-operating ambient temperature: -25 to 70°C
Humidity: 10% to 90%, non-condensing

Brocade G620 32gb Fc Switch In Computer Storage Field 1




Brocade G620 32gb Fc Switch In Computer Storage Field 2





1. Open the packaging, check the products carefully, and take them gently.

2. The product is a brand new original unopened equipment.

3. All products 3 year warranty, and the buyer is responsible for the return shipping cost.


International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
