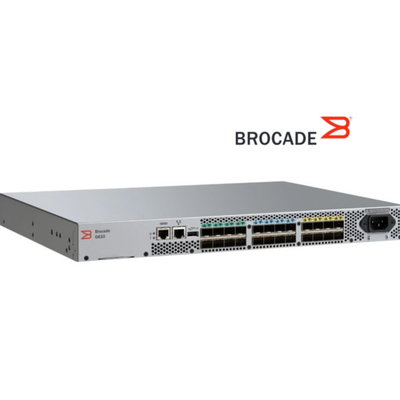

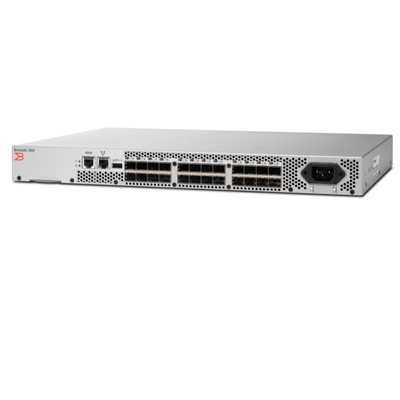

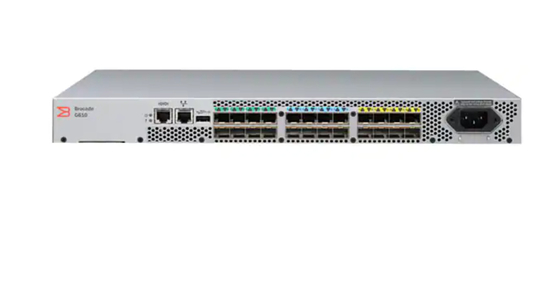

310 Brocade Fiber Switch 8gb And 16 Gbit For Storage Area Network

310 Brocade Fiber Switch 8gb And 16 Gbit For Storage Area Network
310 Brocade Fiber Switch 8gb And 16 Gbit For Storage Area Network 310 Brocade Fiber Switch 8gb And 16 Gbit For Storage Area Network 310 Brocade Fiber Switch 8gb And 16 Gbit For Storage Area Network

Large Image :  310 Brocade Fiber Switch 8gb And 16 Gbit For Storage Area Network

Product Details:
Brand Name: Brocade
Model Number: Brocade 310
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $1310.00~13100.00 Negotiable
Packaging Details: Carton Packaging
Payment Terms: T/T

310 Brocade Fiber Switch 8gb And 16 Gbit For Storage Area Network

Description
Fibre Channel Switch: Brocade310 Switch Fibre Channel Switch: Brocade310 Fibre Channel Switch
Fiber Optic Transmission: 16Gfiber Optic Transmission Number Of Ports: Brocade FC Switches 8G 24PORT
High Light:

8gb 310 Brocade Fiber Switch

,

Storage Area Network Brocade Fiber Switch

,

16gb 310 Brocade Fibre Channel Switch







Brocade 300 Specifications
Fiber Channel port Switch mode (default): 24port configurations
(Expandable via Port on Demand [PoD] license to 12-port
port increments); common (E, F, M, D, EX) ports
Brocade Access Gateway (Access Gateway) Default Port
Port mapping: 40 F_Ports, 8 N_Ports
scalability Full-featured Fabric architecture with up to 239 switches
change machine
Standard maximum support 6000 active nodes in Brocade Fabric OS® Fabric
nodes, 56 switches, and 19 hops; Brocade
31 switches and 3 hops in the M-EOS Fabric architecture;
Larger fabrics can be configured on demand
performance 2, 4, 8, and 16 Gbps port rate auto-negotiation; 10 Gbps,It can also be optionally programmed to a fixed port speed.
ISL Trunking Frame-based trunking, up to 8 links per ISL trunk
16 Gbps ports; up to 128 per ISL trunk
Gbps throughput. Using the included in Fabric OS
DPS implements switch-based cross-ISL load balancing. Opposite
There is no limit to the number of link bundling groups that can be configured in the switch.
total bandwidth 68 Gbps end-to-end full-duplex bandwidth
Maximum Fabric Latency Locally switched port latency is 700 ns; encryption/compression latency
5.5 µsec per node; forward error correction between E_Ports
(FEC) adds 400 ns (enabled by default).
Maximum frame 2112 bytes payload
framebuffer 8192, dynamic allocation
Class of service Class 2, Class 3, Class F (inter-switch frame)
Port Type D_Port (Diagnostic Port), E_Port, EX_Port, F_Port
Port, M_Port (mirror port); based on switch type
self-discovery (U_Port); optional port type control
Brocade Access Gateway Mode: F_Port and Branch
N_Port with NPIV Technology
Data traffic type Fabric switches support unicast traffic
Media Type Hot-swappable, industry-standard Small Form-Factor
Pluggable (SFP+), LC Connector; Shortwave (SWL); Long
wave (LWL); extra long wave (ELWL); maximum distance depends on
Fiber optic cable type and port speed. Supports SFP+ (2, 4, 8, 10
and 16 Gbps) optical transceivers.
USB port 1 USB port for system log file download or microcode upgrade
Fabric architecture service Brocade Advanced Performance Monitoring (APM) (includes E_Ports, F_
Top users of Ports and Fabric patterns); Brocade applies
Responsive network (inbound rate limiting, traffic isolation, QoS);
Bottleneck detection; Brocade advanced partitioning (default partition, port/
WWN Zoning, Broadcast Zoning); Dynamic Fabric
Provisioning (DFP); Dynamic Path Selection (DPS);
Extended Fabrics; Enhanced BB Credit Restoration;
Brocade Fabric Watch; FDMI; Frame redirection;
Frame-based link bundling; FSPF; integrated routing; IPoFC;
ISL Trunking; Management Server; NPIV; NTP v3;
Port Fencing; Registration Status Change Notification (RSCN);
Reliable Commit Service (RCS); the server should
Application Optimization (SAO); Simple Name Server (SNS); Virtual
Quasi-Fabrics Architecture (Logical Switches, Logical Fabrics
architecture
expand Fiber Channel, "In-flight" compression (Brocade LZO)
and encryption (AES-GCM-256); for DWDM MAN
10 Gbps Fiber Channel connected
FICON FICON FICON® Stacking; lossless DLS support; FICON CUP
manage
Supported Management Software
Supported management software HTTP, SNMP v1/v3 (FE MIB, FC Management
MIB), SSH; Audit, Syslog; Brocade Advanced
Web Tools, APM, Brocade Fabric Watch; Brocade
Network Advisor SAN Enterprise or Brocade
Network Advisor SAN Professional/Professional
Plus; command line interface (CLI); SMI-S compliant;
domain; trial license for add-on functionality
safety Security AES-GCM-256 encryption over ISL; DH-CHAP (exchange
between machine and end device), FCAP switch authentication;
FIPS 140-2 L2 compliant, HTTPS, IPsec, IP overlay
filtering, LDAP with IPv6, port binding, RADIUS, user
Defined role-based access control (RBAC), Secure
Copy (SCP), Secure RPC, SFTP, SSH v2,
SSL, switch binding, Trusted Switch
Management access 10/100 Mbps Ethernet (RJ-45) interface over fiber optic
Channels for in-band management, 1 serial port (RJ-45), 1 USB
mouth
Diagnostics D_Port offline diagnostics, including electrical/optical loopback, link traffic/
Delay/distance; POST and embedded online/offline diagnostics, including
including environmental monitoring, FCping and Pathinfo (FC traceroute),
Frame Viewer, Non-destructive Daemon Reboot, Port Mirror
like (SPAN ports), fiber optic component health monitoring, power
Monitoring, RAStrace logs, and Rolling Reboot Detection
(RRD)
Mechanical parameters
shell
Enclosure Front and rear ventilation; rear power supply, 1U
Rear-front ventilation; rear-end power supply, 1U
size Dimensions Width: 438 mm (17.23 in)
Height: 43 mm (1.7 in)
Depth: 443 mm (17.45 inches)
System weight 9.16 kg (20.20 lbs), dual power FRUs, no transceivers
environment

Operating environment

Temperature: 0 to 40°C
Humidity: 10% to 85%, non-condensing
Non-operating ambient temperature: -25 to 70°C
Humidity: 10% to 90%, non-condensing
