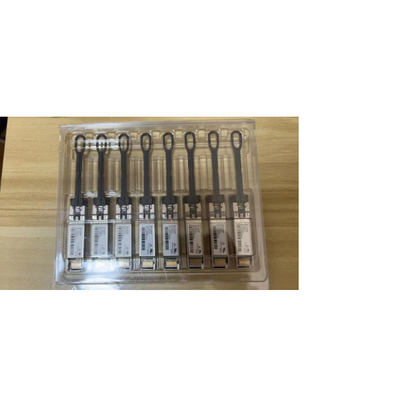

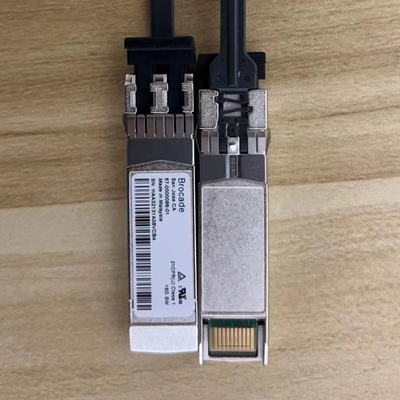

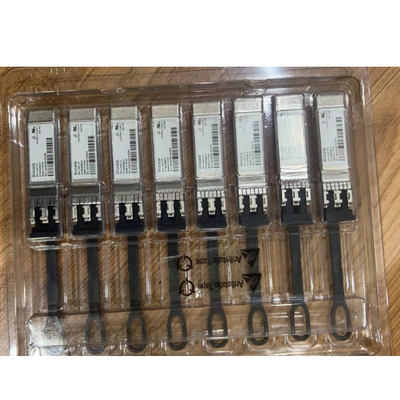

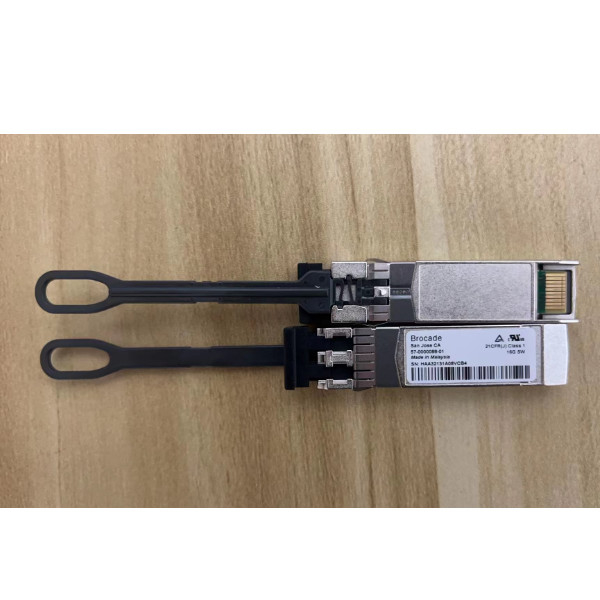

16G Multimode Module For Brocade Fiber Optic Switch

16G Multimode Module For Brocade Fiber Optic Switch
16G Multimode Module For Brocade Fiber Optic Switch 16G Multimode Module For Brocade Fiber Optic Switch 16G Multimode Module For Brocade Fiber Optic Switch 16G Multimode Module For Brocade Fiber Optic Switch 16G Multimode Module For Brocade Fiber Optic Switch

Large Image :  16G Multimode Module For Brocade Fiber Optic Switch

Product Details:
Brand Name: Brocade
Model Number: Brocade fiber optic switch 16G
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $53-60 pcs Negotiable
Payment Terms: T/T, T/T
Supply Ability: 1000

16G Multimode Module For Brocade Fiber Optic Switch

Description
Brocade: Brocade Fiber Optic Switch 16G Module 16G: Fiber Optic Switch 16G Module
Fiber Optic Switch 16G: Fiber 16G Module Module: Fiber Optic Module
High Light:

16G Multimode Module

,

Brocade Fiber Optic Switch Multimode Module

  • Take advantage of lightning-fast flash storage networking technology and adapt quickly to dynamic business demands with the Brocade G620 Switch. This powerful Gen 6 Fibre Channel switch shatters application performance barriers and simplifies scale-out network architectures—in an enviably small footprint. And with built-in instrumentation, you gain greater insight and control to reduce cost, management complexity, and risk.
    Breakthrough performance: Get the performance you need to support critical business applications and the most from your investment in solid state storage technology.
    Increased scalability: Reduce operating costs and management complexity by simplifying scale-out architectures—all in a 1U form factor.
    Operational stability: Reduce risk with the industry’s first built-in metrics. Achieve greater control and operational insights to quickly identify issues and easily meet or crush SLAs.

    Brocade G620 Switch Product Brief

Features

Handle demanding applications easily

  • Seamlessly transition to next-generation NVMe flash arrays
  • Increase performance for demanding workloads across 32G links
  • Reduce latency in high-transaction applications by up to 10x compared to other offerings


Simplify scalability and management

  • Deliver simplified scalability with the industry’s highest port density storage networking switch
  • Simplify end-to-end management of large scale environments by automating monitoring and diagnostics
  • Increase VM density with greater device support and deep visibility into virtualized workloads
  • “Pay as you grow” scalability from 24 to 64 ports for on-demand flexibility



Fiber Channel portSwitch mode (default): 24, 36 and 48 port configurations
(Expandable via Port on Demand [PoD] license to 12-port
port increments); common (E, F, M, D, EX) ports
Brocade Access Gateway (Access Gateway) Default Port
Port mapping: 40 F_Ports, 8 N_Ports
scalabilityFull-featured Fabric architecture with up to 239 switches
change machine
Standard maximum support6000 active nodes in Brocade Fabric OS® Fabric
nodes, 56 switches, and 19 hops; Brocade
31 switches and 3 hops in the M-EOS Fabric architecture;
Larger fabrics can be configured on demand
performance2, 4, 8, and 16 Gbps port rate auto-negotiation; 10 Gbps,It can also be optionally programmed to a fixed port speed.
ISL TrunkingFrame-based trunking, up to 8 links per ISL trunk
16 Gbps ports; up to 128 per ISL trunk
Gbps throughput. Using the included in Fabric OS
DPS implements switch-based cross-ISL load balancing. Opposite
There is no limit to the number of link bundling groups that can be configured in the switch.
total bandwidth68 Gbps end-to-end full-duplex bandwidth
Maximum Fabric LatencyLocally switched port latency is 700 ns; encryption/compression latency
5.5 µsec per node; forward error correction between E_Ports
(FEC) adds 400 ns (enabled by default).
Maximum frame2112 bytes payload
framebuffer8192, dynamic allocation
Class of serviceClass 2, Class 3, Class F (inter-switch frame)
Port TypeD_Port (Diagnostic Port), E_Port, EX_Port, F_Port
Port, M_Port (mirror port); based on switch type
self-discovery (U_Port); optional port type control
Brocade Access Gateway Mode: F_Port and Branch
N_Port with NPIV Technology
Data traffic typeFabric switches support unicast traffic
Media TypeHot-swappable, industry-standard Small Form-Factor
Pluggable (SFP+), LC Connector; Shortwave (SWL); Long
wave (LWL); extra long wave (ELWL); maximum distance depends on
Fiber optic cable type and port speed. Supports SFP+ (2, 4, 8, 10
and 16 Gbps) optical transceivers.
USB port1 USB port for system log file download or microcode upgrade
Fabric architecture serviceBrocade Advanced Performance Monitoring (APM) (includes E_Ports, F_
Top users of Ports and Fabric patterns); Brocade applies
Responsive network (inbound rate limiting, traffic isolation, QoS);
Bottleneck detection; Brocade advanced partitioning (default partition, port/
WWN Zoning, Broadcast Zoning); Dynamic Fabric
Provisioning (DFP); Dynamic Path Selection (DPS);
Extended Fabrics; Enhanced BB Credit Restoration;
Brocade Fabric Watch; FDMI; Frame redirection;
Frame-based link bundling; FSPF; integrated routing; IPoFC;
ISL Trunking; Management Server; NPIV; NTP v3;
Port Fencing; Registration Status Change Notification (RSCN);
Reliable Commit Service (RCS); the server should
Application Optimization (SAO); Simple Name Server (SNS); Virtual
Quasi-Fabrics Architecture (Logical Switches, Logical Fabrics
architecture
expandFiber Channel, "In-flight" compression (Brocade LZO)
and encryption (AES-GCM-256); for DWDM MAN
10 Gbps Fiber Channel connected
FICON FICONFICON® Stacking; lossless DLS support; FICON CUP
manage
Supported Management Software
Supported management software HTTP, SNMP v1/v3 (FE MIB, FC Management
MIB), SSH; Audit, Syslog; Brocade Advanced
Web Tools, APM, Brocade Fabric Watch; Brocade
Network Advisor SAN Enterprise or Brocade
Network Advisor SAN Professional/Professional
Plus; command line interface (CLI); SMI-S compliant;
domain; trial license for add-on functionality
safetySecurity AES-GCM-256 encryption over ISL; DH-CHAP (exchange
between machine and end device), FCAP switch authentication;
FIPS 140-2 L2 compliant, HTTPS, IPsec, IP overlay
filtering, LDAP with IPv6, port binding, RADIUS, user
Defined role-based access control (RBAC), Secure
Copy (SCP), Secure RPC, SFTP, SSH v2,
SSL, switch binding, Trusted Switch
Management access10/100 Mbps Ethernet (RJ-45) interface over fiber optic
Channels for in-band management, 1 serial port (RJ-45), 1 USB
mouth
DiagnosticsD_Port offline diagnostics, including electrical/optical loopback, link traffic/
Delay/distance; POST and embedded online/offline diagnostics, including
including environmental monitoring, FCping and Pathinfo (FC traceroute),
Frame Viewer, Non-destructive Daemon Reboot, Port Mirror
like (SPAN ports), fiber optic component health monitoring, power
Monitoring, RAStrace logs, and Rolling Reboot Detection
(RRD)
Mechanical parameters
shell
Enclosure Front and rear ventilation; rear power supply, 1U
Rear-front ventilation; rear-end power supply, 1U
sizeDimensions Width: 438 mm (17.23 in)
Height: 43 mm (1.7 in)
Depth: 443 mm (17.45 inches)
System weight9.16 kg (20.20 lbs), dual power FRUs, no transceivers
environment

Operating environment

Temperature: 0 to 40°C
Humidity: 10% to 85%, non-condensing
Non-operating ambienttemperature: -25 to 70°C
Humidity: 10% to 90%, non-condensing


16G Multimode Module For Brocade Fiber Optic Switch 0
Notices:

1. Open the packaging, check the products carefully, and take them gently.
2. The product is a brand new original unopened equipment.
3. All products 3 year warranty, and the buyer is responsible for the return shipping cost.

International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
