4U Rackmount Dell Poweredge Server ML DELL EMC PowerEdge R940xa

4U Rackmount Dell Poweredge Server ML DELL EMC PowerEdge R940xa
4U Rackmount Dell Poweredge Server ML DELL EMC PowerEdge R940xa 4U Rackmount Dell Poweredge Server ML DELL EMC PowerEdge R940xa 4U Rackmount Dell Poweredge Server ML DELL EMC PowerEdge R940xa 4U Rackmount Dell Poweredge Server ML DELL EMC PowerEdge R940xa 4U Rackmount Dell Poweredge Server ML DELL EMC PowerEdge R940xa

Large Image :  4U Rackmount Dell Poweredge Server ML DELL EMC PowerEdge R940xa

Product Details:
Place of Origin: China
Brand Name: DELL EMC
Model Number: PowerEdge R940xa Rack Server
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $3156-6930 pcs Negotiable
Packaging Details: Carton Packaging
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 30/pcs/week

4U Rackmount Dell Poweredge Server ML DELL EMC PowerEdge R940xa

Description
Processor: Up To Four 2nd Generation Intel® Xeon® Scalable Processors With Up To 28 Cores Per Processor Memory Module Slots: 48 DDR4 DIMM Slots (12 NVDIMM Or 24 DCPMM Slots Only)
Front Bays: Up To 8 2.5” SAS SATA (HDD/SSD) Max 61.44TB Internal Controllers: PERC H730P, H740P, H330, HBA330
External Controllers: H840, 12 Gbps SAS HBA PCle Slots: 12 X Gen3 Slots (6 X 16 Or 2 X 16 + 10 X 8)
High Light:

4U Rackmount Dell Poweredge Server

,

DELL EMC PowerEdge R940xa

,

4U Rackmount PowerEdge R940xa

GPU database acceleration and ML DELL EMC PowerEdge R940xa 4U Rack Server High Quality Public Address System

POWEREDGE R940xa


Extreme acceleration for Artificial Intelligence and Machine Learning
Rapidly transform data insights into business outcomes with the PowerEdge R940xa. The R940xa accelerates applications with powerful four-socket performance in a scalable 4U design.



Accelerate application performance
The PowerEdge R940xa drives GPU database acceleration to deliver real-time decisions for compute-intensive applications. By combining four CPUs with four GPUs, the R940xa delivers consistent high performance for demanding applications. The R940xa allows you to dynamically scale capacity and performance as your business-critical workloads evolve including:
• Maximizing performance with 2nd Generation Intel® Xeon® Scalable processors, up to 112 cores.
• Choosing up to 4 double-width GPUs or up to 4 double-width or 8 single-width FPGAs for application acceleration.
• Supporting large data sets with up to 48 DIMMs (24 of which can be PMems) and up to 15.36TB of memory.
• Scaling on-premise capacity with up to 32 x. 2.5” HDDs/SSDs and up to 4 direct-attached NVMe drives.
• Expanding quickly with up to 12 PCIe slots for external device connections.



Streamline operations with Dell EMC OpenManage
The Dell EMC OpenManage™ portfolio helps simplify IT operations across your data center, delivering intelligent, automated management of routine tasks. Combined with unique agent-free management capabilities, the R940xa is simply managed, freeing up time for high profile projects.
• Utilize a variety of OpenManage integrations and connections to take advantage of your existing IT management platform.
• Take advantage of QuickSync 2 capabilities and gain access to your servers easily through your phone or tablet.



Deliver comprehensive data center protection with built-in security
Every PowerEdge server is made with a cyber-resilient architecture, delivering security into all parts of a server’s life cycle. The R940xa uses these new security features so you can reliably and securely deliver the right data to where your customers are, no matter where they are. Dell EMC considers each part of system security, from design to end of life, to ensure trust and deliver worry-free systems. Rely on a secure component supply chain to ensure protection from factory to the data center.
• Maintain data safety with cryptographically signed firmware packages and Secure Boot.
• Protect your server from malicious malware with iDRAC9 Server Lockdown mode (requires Enterprise or Datacenter license)
• Wipe all data from storage media including hard drives, SSDs and system memory quickly and securely with System Erase.

PowerEdge R940xa
Features Technical Specification
Processor Up to four 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores each
Memory 48 DDR4 DIMM slots, Supports RDIMM /LRDIMM, up to 2933MT/s, 6TB max
Up to 12 NVDIMM, 384GB Max –
Up to 24 Intel® Optane™ DC persistent memory PMem, max 12.28TB, (15.36TB max with PMem and LRDIMM)
Supports registered ECC DDR4 DIMMs only
Storage controllers
Internal Boot
Internal Controllers: PERC H330, H730P, H740P, HBA330
External Controllers: H840, 12 Gbps SAS HBA
Software RAID:S140
Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSDs 240GB, 480GB
Internal Dual SD Module1
Drive bays Front drive bays: Up to 8x 2.5” SAS SATA (HDD/SSD) max 61.44TB, or up 24 x 2.5” SAS/SATA (HDD/SSD) max 184.32TB,
or up to 32 SAS/SATA (HDD/SSD) with up to 4 NVME PCIe SSD max 245.76TB
Power supplies Gold 1100W -48VDC
Platinum: 1100W, 1100W 240VDC2
1600W, 2000W, 2400W
Hot plug power supplies with full redundancy option
6 hot plugs fans with N +1 redundancy
Dimensions Form factor: Rack (4U) Height: 174.3 mm (6.87”)
Width: 441.16 mm (17.37”)
Depth: 835.9mm (32.9”)
Weight: 56.0kg (123.5lbs.)
*Dimensions do not include bezel
Embedded management iDRAC9
iDRAC Direct
Quick Sync 2 BLE/wireless
Bezel Optional LCD bezel or security bezel
OpenManage™ Software OpenManage Enterprise OpenManage Mobile
OpenManage Power Center
Integrations and
connections
Integrations: Microsoft® System Center,
VMware® vCenter™,
BMC Truesight,
Red Hat® Ansible® Modules
Connections: Nagios® Core & Nagios® XI,
Microfocus Operations Manager I,
IBM Tivoli Netcool/OMNIbus
Tools Dell EMC Repository Manager
Dell EMC Update Package
Dell EMC System Update
Dell EMC Server Update Utility
iDRAC Service Module
iDRAC RESTful API with Redfish
OpenManage Server Administrator
OpenManage Storage Services
Security TPM 1.2/2.0 optional
Cryptographically signed firmware
Secure Boot
Secure Boot
System Lockdown (requires iDRAC Enterprise or Datacenter)
Silicon Root of Trust Secure Erase
I/O & Ports Network Daughter Card Options
4 x 1GbE, 4 x 10GbE, 2 x 10GbE+2 x 1GbE, or 2 x 25GbE
Front ports: 1 x Dedicated iDRAC Direct
Micro-USB, 2 x USB 2.0, 1 x VGA. (Optional 1 x USB 3.0 only
offered on the 8-drive configuration)
Rear ports: 1 x Dedicated iDRAC port, 1 x Serial, 2 x USB 3.0,
1 x VGA
Internal port: 1 x USB 3.0
Video card: 2 x VGA
PCIe: Up to 12 x Gen3 slots, (6x16 slots or 2x16 + 10x8 slots)
Accelerator Options Up to 4 doublewidth GPUs or up to 4 double-width
or 8 single-width full-height FPGAs
See Dell.com/GPU for latest information.
Supported operating
systems
Canonical® Ubuntu® LTS
Citrix® Hypervisor
Oracle® Linux
Microsoft Windows Server® LTSC with Hyper-V
Red Hat® Enterprise Linux

SUSE® Linux Enterprise Server
VMware® ESXi
For specifications and interoperability details,
see Dell.com/OSsupport





The following table shows the comparison between the PowerEdge R940xa and the R930:


Feature R940xa R930
CPU 4x 2nd Generation Intel Xeon Processor Scalable
Family (Gold and Platinum)
4x Intel Xeon E5-5600 v3
CPU interconnect Intel Ultra Path Interconnect (UPI) Intel QuickPath Interconnect (QPI)
Memory ● 48x DDR4 RDIMM, LRDIMM, 12x NVDIMM
● Up to 6 TB with 48x 128 GB LRDIMM
● DCPMM 12.28 TB (15.36 TB with LRDIMM)
● 96 x DDR4 RDIMM, LRDIMM
● Up to 3 TB with 96x 32 GB LRDIMM
Disk Drives 2.5 inches - 12 Gb SAS, 6 Gb SATA 2.5 inches - 12 Gb SAS, 6 Gb SATA
Storage Controllers Adapters: HBA330, H330, H730P, H740P, 12G
SAS HBA, H840 and HBA355e
SW RAID: S140
12 Gbps PERC-9 series
PCIe SSD Up to 4x PCIe SSD 8x PCIe SSD with dedicated slots using two
extender cards.
PCIe Slots Max 12 PCIe 3.0 Max 10 PCIe 3.0
rNDC 4x 1 GB, 4x 10 GB, 2x 10 GB+2x 1 GB, or 2x 25
GB
4x 1 Gb, 4x 10 Gb, or 2x 10 Gb+2x 1 Gb
Accelerators Up to 4 double-width GPUs or up to 4 double
width or up to 8 single-width FPGAs.
Not Available
USB Ports Front: 2 ports (USB 2.0), 1 managed (micro-usb)
Rear: 2 ports (USB 3.0)
Internal: 1 port (USB 3.0)
Optional: 1 Front port (USB 3.0) - only offered on
8-drive configuration
Front: 2 ports (USB 2.0)
Rear: 2 ports (USB 2.0)
Internal: 1 port (USB 2.0)
Rack Height 4U 4U
Power Supplies ● AC (Platinum): 750 W, 1100 W, 1600 W, 2000
W, 2400 W
● Mix Mode: 750 W PSU (DC input for China
only)
● AC (Titanium): 750 W
● DC: 1100 W
● Mix Mode/HVDC: 750 W (for China only),
1100 W
● AC: 750 W, 1100 W
● DC: 1100 W
● Mix Mode/HVDC: 750 W
Feature R940xa R930
System Management Lifecycle Controller 3.x, OpenManage,
QuickSync2.0, OMPC3, Digital License Key,
iDRAC Direct (dedicated micro-USB port), Easy
Restore, vFlash
Lifecycle Controller 2.x, OpenManage, Digital
License Key, iDRAC QuickSync, iDRAC Direct,
Easy Restore
Availability ● Hot-plug Drives
● Hot-plug Redundant Cooling
● Hot-plug Redundant Power Supplies
● IDSDM
● Hot-plug Drives
● Hot-plug Redundant Cooling
● Hot-plug Redundant Power Supplies
● IDSDM



Chassis views and features
Front view of the system
4U Rackmount Dell Poweredge Server ML DELL EMC PowerEdge R940xa 0

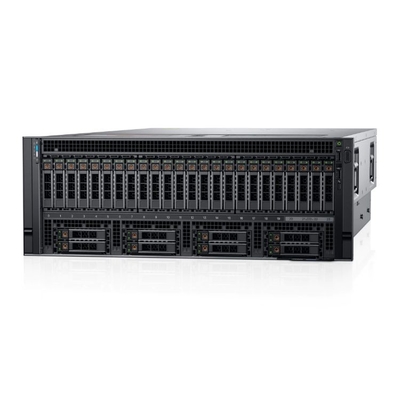

Figure 1. Front view of 32 x 2.5-inch drive system
1. Left control panel

2. Drives (32)
3. Right control panel

4. Information tag

Back view of the system
4U Rackmount Dell Poweredge Server ML DELL EMC PowerEdge R940xa 1

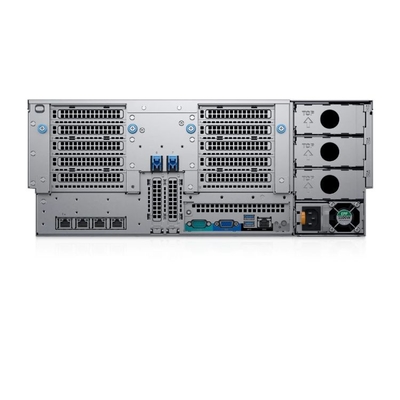

Figure 2. Back view of the system
1. Full-height expansion riser 1

2. Full-height expansion riser 2
3. Power supply units (4)

4. System identification button
5. CMA power port

6. iDRAC9 dedicated port
7. USB 3.0 ports (2)

8. VGA port
9. Serial port

10. Low profile expansion card slots (2)
11. NIC ports (4)
