192TB Storages Server DELL EMC Poweredge R740xd 2U Rack Server

192TB Storages Server DELL EMC Poweredge R740xd 2U Rack Server
192TB Storages Server DELL EMC Poweredge R740xd 2U Rack Server 192TB Storages Server DELL EMC Poweredge R740xd 2U Rack Server 192TB Storages Server DELL EMC Poweredge R740xd 2U Rack Server 192TB Storages Server DELL EMC Poweredge R740xd 2U Rack Server 192TB Storages Server DELL EMC Poweredge R740xd 2U Rack Server

Large Image :  192TB Storages Server DELL EMC Poweredge R740xd 2U Rack Server

Product Details:
Place of Origin: China
Brand Name: DELL EMC
Model Number: PowerEdge R740xd Rack Server
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $3650-5320pcs Negotiable
Packaging Details: Carton Packaging
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 50/pcs/week

192TB Storages Server DELL EMC Poweredge R740xd 2U Rack Server

Description
Processor: Up To Two 2nd Generation Intel® Xeon® Scalable Processors With Up To 28 Cores Per Processor Memory Module Slots: 24 DDR4 DIMM Slots (12 NVDIMM Or 12 DCPMM Only)
Front Bays: Up To 12 X 3.5” SAS, Max 192TB Internal Controllers: PERC H330, H730P, H740P, HBA330
External Controllers (RAID): H840, 12 Gbps SAS HBA PCIe: 8 X Gen3 Slots (4 X 16)
High Light:

192TB Storages Server 2U Rack

,

Poweredge R740xd 2U Rack Server

,

192TB Storages Server

Cheap And High Quality Enterprise Server DELL EMC PowerEdge R740xd SDS, service providers, and big data servers

POWEREDGE R740xd



Maximize storage performance and scalability
The PowerEdge R740xd delivers a perfect balance between storage scalability and performance. The 2U two-socket platform is ideal for software defined storage, service providers or as virtual desktop infrastructure.


Maximize performance and capacity
The scalable system architecture behind the R740xd with up to 24 NVMe drives creates the ideal balance between scalability and performance. The R740xd versatility is highlighted with the ability to mix any drive type to create the optimum configuration of NVMe, SSD and HDD for either performance, capacity or both. The R740xd is the platform of choice for software defined storage and is the foundation for VSAN or the PowerEdge XC.
• Maximize storage performance with up to 24 NVMe drives and ensure application performance scales to meet demands.
• Free up storage space using internal M.2 SSDs optimized for boot.
• Simplify and accelerate ScaleIO or VMware vSAN™ deployments with validated, pre-bundled and tailored Ready Nodes.
• Accelerate workloads with up to three double-width 300W GPUs, or up to six single-width 150W GPUs, or up to three double-width or up to four single-width FPGAs.


Automate maintenance with Dell EMC OpenManage
Dell EMC PowerEdge servers with OpenManage™ technology work at peak efficiency for PowerEdge servers, delivering intelligent, automated management of routine tasks. Combined with unique agent-free management capabilities, the R740xd is simply managed, freeing up time for high profile projects.
• Simplify management with the OpenManage EnterpriseTM console, with customized reporting and automatic discovery.
• Take advantage of QuickSync 2 capabilities and gain access to your servers easily through your phone or tablet.

Ensure server security from factory to you
Every PowerEdge server is designed as part of a cyber resilient architecture, integrating security into the full server life cycle. The R740xd leverages new security features built-into every new PowerEdge server strengthening protection so you can reliably and securely deliver accurate data to your customers no matter where they are. By considering each aspect of system security, from design to retirement, Dell EMC ensures trust and delivers a worry-free, secure infrastructure without compromise.
• Rely on a secure component supply chain to ensure protection from factory to the data center.
• Maintain data safety with cryptographically signed firmware packages and Secure Boot.
• Protect your server from malicious malware with iDRAC9 Server Lockdown mode (requires Enterprise or Datacenter license).
• Wipe all data from storage media including hard drives, SSDs and system memory


PowerEdge R740xd
Features Technical Specification
Processor Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores per processor
Memory 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2933MT/s, 3TB max
Up to 12 NVDIMM, 192 GB Max
Up to 12 Intel® Optane™ DC persistent memory PMem, 6.14TB max, (7.68TB max with DPCMM + LRDIMM)
Supports registered ECC DDR4 DIMMs only
Storage controllers
Internal boot
Internal Controllers: PERC H330, H730P, H740P, HBA330
External Controllers: H840, 12 Gbps SAS HBA
Software RAID:S140
Boot Optimized Storage Subsystem (BOSS):HWRAID 2 x M.2 SSDs 240GB, 480GB
Internal Dual SD Module1
Drive bays Front bays: Up to 24 x 2.5” SAS/SATA (HDD/SSD), NVMe SSD max 184.32TB or up to 12 x 3.5” SAS/SATA HDD max 216TB
Mid bay: Up to 4 x 2.5”, max 30.72TB SAS/SATA (HDD/SSD), or up to 4 x 3.5” SAS/SATA HDD, max 64TB
Rear bays: Up to 4 x 2.5”, max 30.72TB SAS/SATA (HDD/SSD), or up to 2 x 3.5” SAS/SATA HDD max 32TB
Power supplies Titanium 750W, Platinum 495W, 750W,
750W 240VDC,* 1100W,
1100W 380VDC*
1600W, 2000W and 2400W, Gold 1100W -48VDC
Hot plug power supplies with full redundancy
Up to 6 hot plugs fans with full redundancy
*Only available in China and Japan
Dimensions Form factor: Rack (2U) Height: 86.8m (3.42”)
Width*: 434mm (17.08”)
Depth*: 737.5mm (29.03”)
Weight: 33.1kg (73lbs.)
*Dimensions do not include bezel
Embedded management iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish
Quick Sync 2 wireless module (optional)
Bezel Optional LCD Bezel or Security bezel
OpenManage™ Software OpenManage Enterprise OpenManage Mobile
OpenManage Power Center
Integrations and
connections
Integrations:
Microsoft® System Center
VMware® vCenter™
BMC Truesight
Red Hat® Ansible Modules
Connections:
Nagios® Core & Nagios® XI
Micro Focus Operations Manager
IBM Tivoli Netcool/OMNIbus
Security TPM 1.2/2.0, TCM 2.0 optional
Cryptographically signed firmware
Secure Boot
System Lockdown (requires iDRAC Enterprise or Datacenter)
Silicon Root of Trust
Secure erase
I/O & Ports Network daughter card options
4 x 1GbE or 2 x 10GbE + 2 x 1GbE or 4 x 10GbE or 2 x 25GbE
Front ports: 1 x Dedicated iDRAC Direct Micro-USB, 2 x USB 2.0, 1 x USB 3.0 (optional) 1 x VGA
Rear ports: 1 x Dedicated iDRAC network port, 1 x Serial, 2 x USB 3.0, 1 x VGA
Video card: 2 x VGA
Riser options with up to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots
Accelerator options Up to three 300W or six 150W GPUs, or up to
three double-width or four single-width FPGAs.
GPU and FPGA options are available only on 24 x 2.5”
drive chassis.
See Dell.com/GPU for latest information.
Some configurations support up to 2 GPUs with NVMes.
Supported operating
systems
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor
Microsoft Windows Server® LTSC with Hyper-V
Oracle® Linux
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi
For specifications and interoperability details,
see Dell.com/OSsupport.



Chassis views and features
R740 and R740xd front views
The R740 supports up to 16 x 2.5 -inch or up to 8 x 3.5 -inch front-accessible, hot-plug hard drives that are secured by a
removable front bezel.
R740 Front view - 8 x 2.5 -inch hard drive configuration
192TB Storages Server DELL EMC Poweredge R740xd 2U Rack Server 0

R740 Front view - 16 x 2.5 -inch hard drive configuration
192TB Storages Server DELL EMC Poweredge R740xd 2U Rack Server 1

R740 Front view - 8 x 3.5 -inch hard drive configuration
192TB Storages Server DELL EMC Poweredge R740xd 2U Rack Server 2

R740xd
The R740xd supports up to 12x 3.5 -inch or up to 24 x 2.5 -inch front-accessible, hot-plug hard drives that are secured by a
removable front bezel.

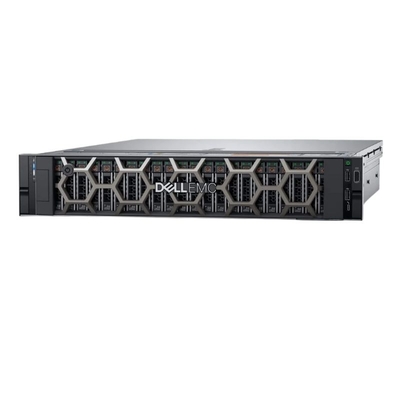

R740xd Front view - 12 x 3.5 -inch hard drive configuration
192TB Storages Server DELL EMC Poweredge R740xd 2U Rack Server 3

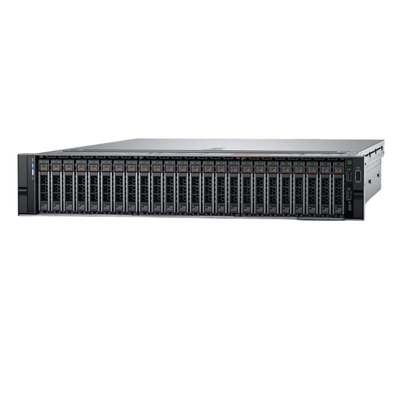

R740xd Front view - 24 x 2.5 -inch hard drive configuration
192TB Storages Server DELL EMC Poweredge R740xd 2U Rack Server 4

R740 and R740xd Rear views
The R740 back panel includes PSUs, Ethernet connectors, PCIe slots and many other features described in this guide
R740 Rear view - with 8x PCIe slots available
192TB Storages Server DELL EMC Poweredge R740xd 2U Rack Server 5R740 Rear view - with 4x PCIe slots available with riser 2 and riser 3 blanks
192TB Storages Server DELL EMC Poweredge R740xd 2U Rack Server 6R740xd
R740xd Rear view - with 2 x 3.5 -inch backplane installed
192TB Storages Server DELL EMC Poweredge R740xd 2U Rack Server 7R740xd Rear view - with 4 x 2.5 -inch backplane installed

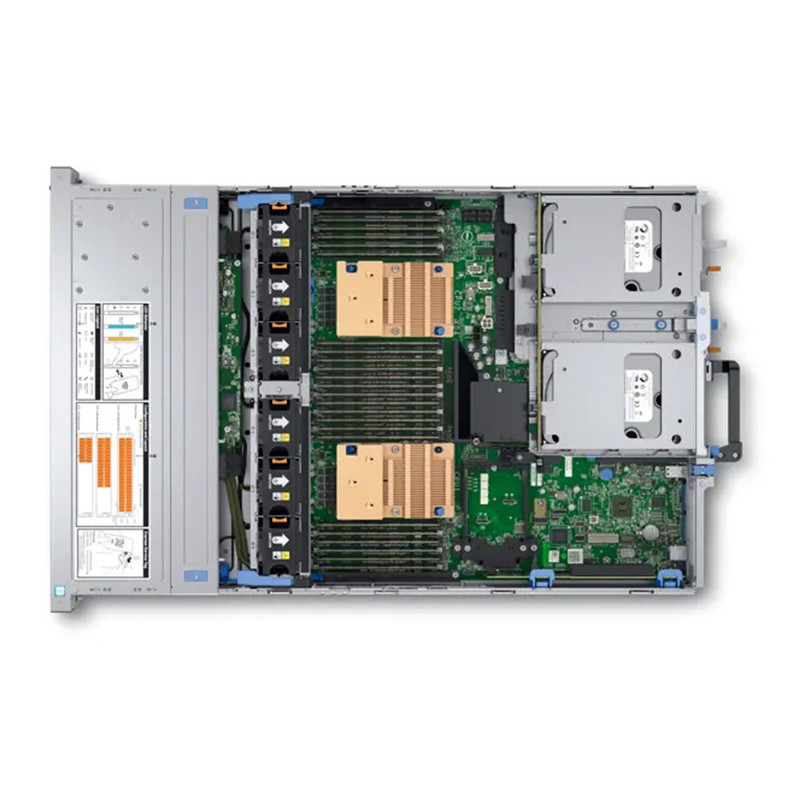

192TB Storages Server DELL EMC Poweredge R740xd 2U Rack Server 8Internal view of the system

R740xd
192TB Storages Server DELL EMC Poweredge R740xd 2U Rack Server 9

Figure 1. R740xd internal chassis view – hard drive tray and hard drive cage with NVDIMM-N battery
1. hard drive backplane

2. SAS expander card
3. cooling fan (6) in the cooling fan assembly

4. hard drive (4) in the hard drive tray
5. mid hard drive backplane

6. rear hard drive backplane
7. hard drive (2 or 4) in the hard drive cage

8. system board
9. expansion card riser 1

10. integrated storage controller card
11. NVDIMM-N battery



192TB Storages Server DELL EMC Poweredge R740xd 2U Rack Server 10

Figure 2. R740xd internal chassis view with NVDIMM-N battery on the air shroud
1. hard drive backplane

2. SAS expander card
3. cooling fan (6) in the cooling fan assembly

4. air shroud
5. expansion card riser 3

6. network daughter card
7. expansion card riser 2

8. system board
9. expansion card riser 1

10. integrated storage controller card
11. NVDIMM-N battery
