QSFP28-BIDI-100G Cisco Multimode Sfp 100GBASE-SR BiDi QSFP28 SWDM4 100m DOM Duplex LC

QSFP28-BIDI-100G Cisco Multimode Sfp 100GBASE-SR BiDi QSFP28 SWDM4 100m DOM Duplex LC
QSFP28-BIDI-100G Cisco Multimode Sfp 100GBASE-SR BiDi QSFP28 SWDM4 100m DOM Duplex LC QSFP28-BIDI-100G Cisco Multimode Sfp 100GBASE-SR BiDi QSFP28 SWDM4 100m DOM Duplex LC QSFP28-BIDI-100G Cisco Multimode Sfp 100GBASE-SR BiDi QSFP28 SWDM4 100m DOM Duplex LC QSFP28-BIDI-100G Cisco Multimode Sfp 100GBASE-SR BiDi QSFP28 SWDM4 100m DOM Duplex LC QSFP28-BIDI-100G Cisco Multimode Sfp 100GBASE-SR BiDi QSFP28 SWDM4 100m DOM Duplex LC

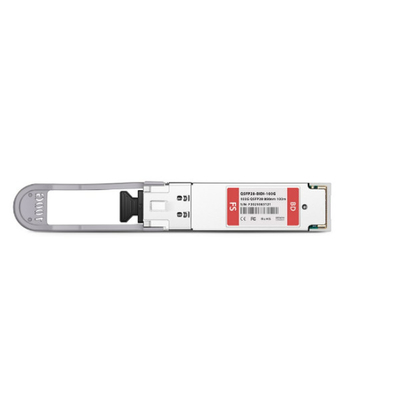

Large Image :  QSFP28-BIDI-100G Cisco Multimode Sfp 100GBASE-SR BiDi QSFP28 SWDM4 100m DOM Duplex LC

Product Details:
Brand Name: FS
Model Number: QSFP28-BIDI-100G
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $20-400 pcs Negotiable
Payment Terms: T/T, T/T
Supply Ability: 2000

QSFP28-BIDI-100G Cisco Multimode Sfp 100GBASE-SR BiDi QSFP28 SWDM4 100m DOM Duplex LC

Description
Brocade: FS(Cisco)compatible QSFP28-BIDI-100G 100G: 100GBASE-SR BiDi
Fiber Optic Switch 16G: 100GBASE-SR BiDi QSFP28 Multimode Module: Multimode Optical Module SWDM4 100m DOM
High Light:

100gbase-sr bidi cisco multimode sfp

,

100m cisco multimode sfp

,

100m multimode sfp module

Compatible:


Product Highlights

Built-in II-VI Finisar Chip, Max. Power Consumption 3.5W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Upgrade 10G Ethernet to 100G without Changing the Existing Fiber Cabling Infrastructure
4x25Gb/s 850nm VCSEL-based Transmitter
Should be Interoperable with FS QSFP28-BIDI-100G Transceiver
FS BOX - Support Real-time Configuration
Compliant to IEEE 802.3bm, and Hot Pluggable QSFP28 MSA
Class 1 Laser Safety
100G Connectivity for Data Center
The 100G SWDM4 BiDi can achieve 100G short-range transmission through duplex LC like 100G PAM4 BiDi. But quad-band SWDM4 BiDi will not interoperate with dual-wavelength PAM4 BiDi.QSFP28-BIDI-100G Cisco Multimode Sfp 100GBASE-SR BiDi QSFP28 SWDM4 100m DOM Duplex LC 0

Cisco Compatible 100GBASE-SR SWDM4 Bi-Directional QSFP28 Optical Transceiver Module for Ethernet and Data Center (MMF, 850nm, 880nm, 910nm and 940nm, 100m, LC, DOM)

The Cisco Compatible 100GBASE-SR SWDM4 Bi-Directional QSFP28 transceiver is a pluggable optical transceiver with a duplex LC connector interface for short-reach data communication and interconnect applications using Multi-Mode Fiber (MMF). It offers customers a compelling solution that enables reuse of their existing 10 Gb duplex MMF infrastructure for migration to 100 Gigabit Ethernet connectivity.

This transceiver is compliant with the QSFP28 MSA and IEEE 802.3bm CAUI-4 electrical interface. Digital diagnostics functions are also available via an I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters.

Specifications
Part Number
QSFP28-BIDI-100G
Vendor Name
FS
Form Factor
QSFP28
Max Data Rate
103.1Gbps
Wavelength
850nm
Max Cable Distance
75m@OM3/100m@OM4/150m@OM5
Connector
Duplex LC
Media
MMF
Transmitter Type
VCSEL
Receiver Type
PIN
TX Power
-5.5 - 3dBm
Minimum Receiver Power
-9.5dBm
Powerbudget
4dB
Receiver Overload
3.4dbm
Power Consumption
≤3.5W
Commercial Temperature Range
0 to 70°C (32 to 158°F)
DDM/DOM
Supported
Bit Error Ratio (BER)
5E-5 (Pre-FEC)
Inbuilt FEC
No
Protocols
QSFP28 MSA and IEEE 802.3bm CAUI-4
Application
Data Center, 100GBASE Ethernet
Warranty
5 Years


QSFP28-BIDI-100G Cisco Multimode Sfp 100GBASE-SR BiDi QSFP28 SWDM4 100m DOM Duplex LC 1
