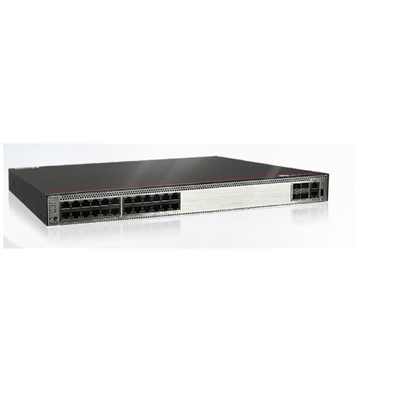

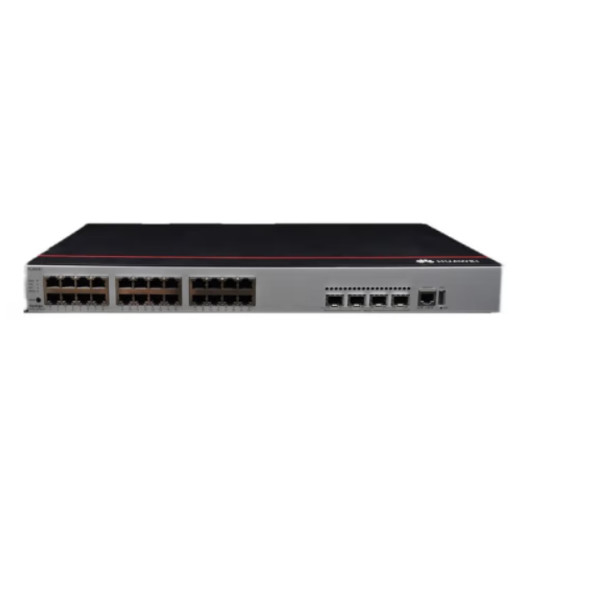

AC Power Datacom Huawei Sfp Switch S5731S-S24T4X

AC Power Datacom Huawei Sfp Switch S5731S-S24T4X
AC Power Datacom Huawei Sfp Switch S5731S-S24T4X AC Power Datacom Huawei Sfp Switch S5731S-S24T4X AC Power Datacom Huawei Sfp Switch S5731S-S24T4X AC Power Datacom Huawei Sfp Switch S5731S-S24T4X AC Power Datacom Huawei Sfp Switch S5731S-S24T4X

Large Image :  AC Power Datacom Huawei Sfp Switch S5731S-S24T4X

Product Details:
Brand Name: HUA WEI
Model Number: Huawei switch S5731S-S24T4X
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $705.7362~1143.2927 Negotiable
Payment Terms: T/T
Supply Ability: 100

AC Power Datacom Huawei Sfp Switch S5731S-S24T4X

Description
Product Name: Network Communication Switch Brand Model Number: Huawei Switch S5731S-S24T4X
Number Of Ports: 24 Gigabit Ethernet Ports Port Type: 24 Gigabit Ethernet Ports 4 10 Gigabit SFP+
High Light:

S5731S-S24T4X Huawei Sfp Switch

,

Datacom Huawei Sfp Switch

,

S5731S-S24T4X Datacom Switches

S5731S-S24T4X-A (98011852)

Overview

Table 4-1321 Basic information about the S5731S-S24T4X-A
Item Details
Description S5731S-S24T4X Bundle (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, 1*AC power)
Part Number 98011852
Model S5731S-S24T4X-A
First supported version V200R021C10SPC600
Supported Patch Version If V200R021C10SPC500 is used, install V200R021HP0121 or a later patch.

Components

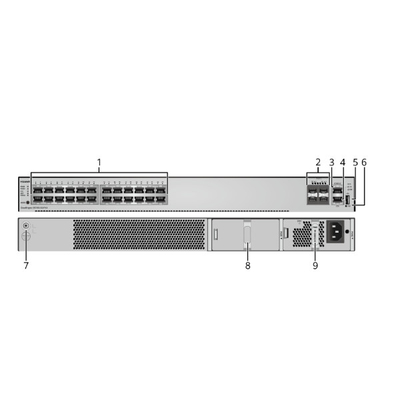

Figure 4-518 S5731S-S24T4X-A appearance
1 Twenty-four 10/100/1000BASE-T ports 2 Four 10GE SFP+ optical ports
3 One console port 4 One ETH management port
5 One USB port 6

One PNP button

NOTICE:

To restore the factory settings and reset the switch, hold down the button for at least 6 seconds.

To reset the switch, press the button.

Resetting the switch will cause service interruption. Exercise caution when you press the PNP button.

7

Ground screw

NOTE:

It is used with a ground cable.

8

Power module slot 1

9

Power module slot 2

- -

Indicators and Buttons

The S5731S-S24T4X-A has similar indicators to those on the S5731S-S48P4X-A except that the S5731S-S24T4X-A does not have a PoE mode indicator. For details, see the S5731S-S48P4X-A.

Power Supply System

The switch can use a single power module or double power modules for 1+1 power redundancy. Pluggable AC and DC power modules can be used together in the same switch. However, the power modules with natural heat dissipation and the power modules with fan cannot be used at the same time.

Heat Dissipation System

The switch has two built-in fans for forced air cooling. Air flows in from the left, right, and front sides, and exhausts from the rear panel.



This figure only shows the airflow direction and does not depict the actual device.

Technical Specifications

Table 4-1323 Technical specifications of the S5731S-S24T4X-A
Item Specification
Dimensions without packaging (H x W x D) [mm(in.)]

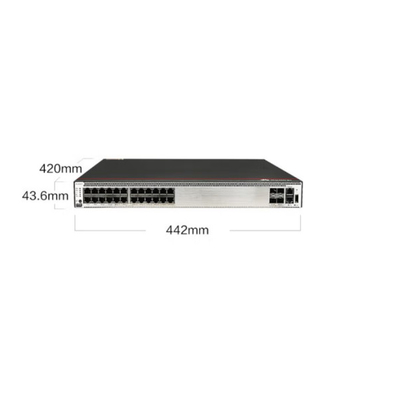

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.54 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.64 in.)

Dimensions with packaging (H x W x D) [mm(in.)] 185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.)
Chassis height [U] 1 U
Weight without packaging [kg(lb)] 5.60 kg (12.35 lb)
Weight with packaging [kg(lb)] 8.13 kg (17.92 lb)
Typical power consumption [W] 61 W
Typical heat dissipation [BTU/hour] 208.14 BTU/hour
Maximum power consumption [W] 87 W
Maximum heat dissipation [BTU/hour] 296.85 BTU/hour
Static power consumption [W] 44 W
MTBF [year] 86.81 year
MTTR [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] 45.62 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)] 31.94 dB(A)
Number of card slots 0
Number of power slots 2
Number of fans modules 2
Redundant power supply

1+1

Pluggable AC and DC power modules can be used together in the same switch, but power modules that use natural heat dissipation and power modules that use air cooling cannot be used together.

Long-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Devices cannot start when the temperature is lower than 0°C (32°F).

The operating temperature of the switch is -5°C to +45°C (23°F to 113°F) when 10GE SFP+ optical modules with 40 km or longer transmission distances are used.

Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode Pluggable power supply
Rated input voltage [V]
  • AC input: 100 V AC to 240 V AC; 50/60 Hz
  • High-voltage DC input: 240 V DC
  • DC input: –48 V DC to –60 V DC
Input voltage range [V]
  • AC input: 90 V AC to 290 V AC; 45–65 Hz
  • High-voltage DC input: 190 V DC to 290 V DC
  • DC input: -38.4 V DC to -72 V DC
Maximum input current [A] The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.
Memory 2 GB
Flash memory 1 GB in total. To view the available flash memory size, run the display version command.
Console port RJ45
Eth Management port RJ45
USB Supported
RTC Supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±7 kV
Power supply surge protection [kV]
  • Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode
  • Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Types of fans Built-in
Heat dissipation mode Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction Air flows in from the left, right, and front, and flows out from the rear.
PoE Not supported
Certification

EMC certification

Safety certification

Manufacturing certification
