32 DDR4 DIMMs Huawei Fusion Server 44 3.5 Inch Hard Disks 5288 V6 4U

32 DDR4 DIMMs Huawei Fusion Server 44 3.5 Inch Hard Disks 5288 V6 4U
32 DDR4 DIMMs Huawei Fusion Server 44 3.5 Inch Hard Disks 5288 V6 4U 32 DDR4 DIMMs Huawei Fusion Server 44 3.5 Inch Hard Disks 5288 V6 4U 32 DDR4 DIMMs Huawei Fusion Server 44 3.5 Inch Hard Disks 5288 V6 4U 32 DDR4 DIMMs Huawei Fusion Server 44 3.5 Inch Hard Disks 5288 V6 4U

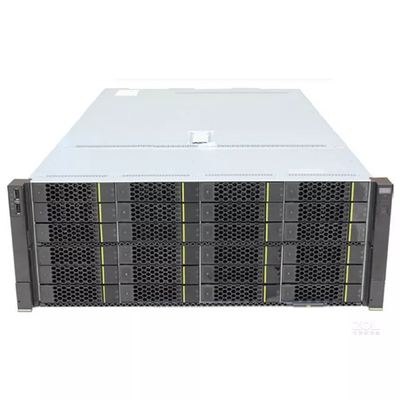

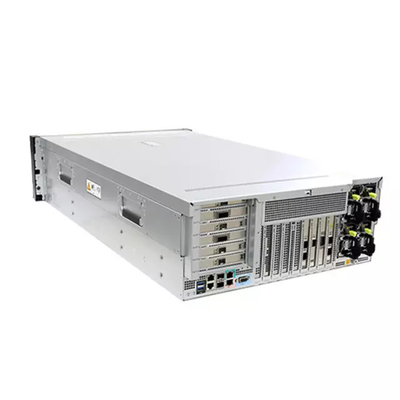

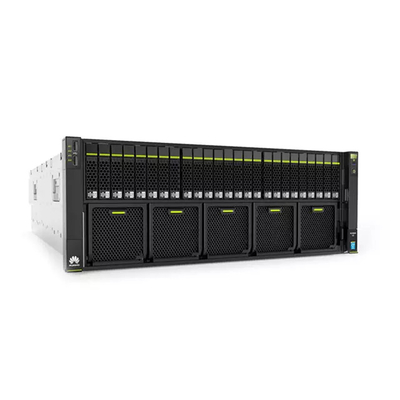

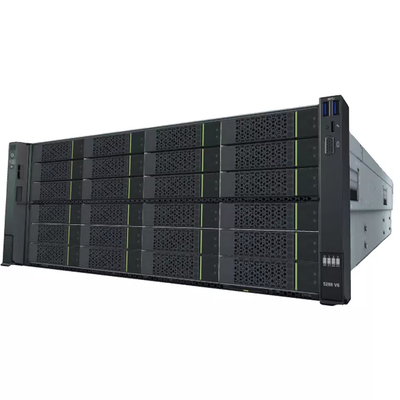

Large Image :  32 DDR4 DIMMs Huawei Fusion Server 44 3.5 Inch Hard Disks 5288 V6 4U

Product Details:
Brand Name: HUAWEI
Model Number: FusionServer 5288 V6
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $6599-7999 pcs Negotiable
Packaging Details: 100/pcs/week
Supply Ability: 1-100

32 DDR4 DIMMs Huawei Fusion Server 44 3.5 Inch Hard Disks 5288 V6 4U

Description
Form Factor:: 4U Rack Server Processors:: 1/2 3rd Generation Intel® Xeon® Scalable Processor (Ice Lake) (8300 / 6300 / 5300 / 4300 Series) , Up To 270W
1/2 3rd Generation Intel® Xeon® Scalable Processor (Ice Lake) (8300 / 6300 / 5300 / 4300 Series) , U: Intel® C621A Memory:: 32 DDR4 Memory Slots, Up To 3200 MT/s; Up To
RAID Support:: Supports RAID 0, 1, 5, 50, 6, And 60 PCIe Expansion:: Maximum Of 11 PCIe 4.0 Slots, Including One Dedicated PCIe Slot For The RAID Controller Card, Two Dedicated FLEX I/O
High Light:

32 DDR4 DIMMs Huawei Fusion Server

,

Huawei Fusion Server 4U

,

4U Fusionserver 5288 V6

FusionServer 5288 V6 4U Rack Server

,

4U Rack Server 32 DDR4

,

4U Rack Server 32 DDR4 DIMMs 44





Xfusion FusionServer 5288 V6 4U 2-socket rack server supports 32 DDR4 DIMMs 44 3.5-inch hard disks and 4 NVMe disks

FusionServer 5288 V6 is a 4U 2-socket rack server



FusionServer 5288 V6 is a 4U 2-socket rack server that meets service requirements such as hot, warm, and cold data tiered deployment and historical data archiving. With its efficient design, FusionServer 5288 V6 ensures excellent computing performance and provides flexible and ultra-large local storage expansion capabilities, reducing data storage costs. The 5288 V6 can be configured with two Intel Xeon scalable processor, 32 DDR4 DIMMs, and 44 3.5-inch + 4 NVMe SSDs in a 4 U space. Integrates patented technologies such as DEMT intelligent power management and FDM intelligent fault management, and can be configured with FusionDirector full-lifecycle management software, effectively reducing OPEX and improving ROI.



32 DDR4 DIMMs Huawei Fusion Server 44 3.5 Inch Hard Disks 5288 V6 4U 0

Technical Specifications

Specification Name Specifications
Model FusionServer 5288 V6
Form Factor 4U Rack Server
Processors 1/2 3rd Generation Intel® Xeon® scalable processor (Ice Lake) (8300 / 6300 / 5300 / 4300 Series) , up to 270W
Chip Set Intel® C621A
Memory 32 DDR4 memory slots, up to 3200 MT/s; Up to 16 Intel® Optane TM Persistent Memory 200 Series, up to 3200MT/s
Local Storage

Various hard disk configurations are supported. The hard disks are hot swappable:

· 36 to 44 3.5-inch SAS/SATA HDDs and 4 NVMe SSDs

· 24 x 3.5-inch SAS/SATA front hard disks

· 4 3.5-inch SAS/SATA internal hard disks

· 16 3.5-inch SAS/SATA hard disks and four 2.5-inch SAS/SATA/NVMe rear hard disks

· 12 3.5-inch SAS/SATA disks and eight 2.5-inch rear hard disks (4 x 2.5" HDDs + 4 x 2.5" SAS/SATA/NVMe)

Flash storage:

· Dual M.2 SSDs

RAID Support Supports RAID 0, 1, 5, 50, 6, and 60, cache supercapacitor protection, RAID level migration, disk roaming, self-diagnosis, and web-based remote configuration, and multiple network expansion capabilities
Network

OCP 3.0 NIC

The two FLEX I/O card slots support two OCP 3.0 NICs, which can be configured as required

Supports multiple OCP 3.0 NICs

Supports hot swap

PCIe Expansion A maximum of 11 PCIe 4.0 slots, including one dedicated PCIe slot for the RAID controller card, two dedicated FLEX I/O slots for OPC3.0, and eight standard PCIe 4.0 slots
Fan Four hot-swappable fans, supporting N+1 redundancy
Power Supply

2 redundant hot-swappable PSUs are configured in 1+1 redundancy mode. The optional specifications are as follows:

· 900W AC Platinum/Titanium power supply (Input: 100–240 V AC or 192–288 V DC)

· 1500 W AC Platinum PSU

· 1000 W (input: 100 V AC to 127 V AC)

· 1500 W (input: 200–240 V AC or 192–288 V DC)

· 2000 W AC Platinum PSU

· 1800 W (input: 200–220 V AC or 192–200 V DC)

· 2000 W (input: 220–240 V AC or 200–288 V DC)

Management

· The BMC chip integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening

· The BMC supports standard interfaces such as Redfish, SNMP, and IPMI2.0. Provides a remote management interface based on HTML5/VNC KVM. Supports out-of-band management functions, such as monitoring, diagnosis, configuration, agentless, and remote control, simplifying management

· FusionDirector management software can be used to provide advanced management features such as five intelligent features, implementing intelligent, automatic, visualized, and refined management throughout the lifecycle

Operating Systems Microsoft Windows Server,SUSE Linux Enterprise Server,VMware ESXi,Red Hat Enterprise Linux,CentOS,Oracle Linux,Ubuntu,Debian,openEuler etc
Security Features Security features such as power-on password, administrator password, TPM 2.0, security panel, secure boot, and cover opening detection
Operating Temperature Operating temperature: 5°C~40°C (41ºF~104ºF) (ASHARE Class A1/A2/A3)
Certifications CE,UL,CCC,FCC,VCCI,RoHS etc
Installation Kit L-shaped guide rails, retractable guide rails, and holding rails
Dimensions (H x W x D) Chassis dimensions: 175 mm x 447 mm x 790 mm



Notices:

1. Open the packaging, check the products carefully, and take them gently.
2. The product is a brand new original unopened equipment.
3. All products 3 year warranty, and the buyer is responsible for the return shipping cost.

International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
