24TB / 22TB to Fuel Data Center Expansion
Relentless growth of data means organizations must find ways to efficiently store more data. That’s where higher areal density comes into play, with its ability to boost capacities while not increasing the storage footprint. The Ultrastar DC HC580 24TB / 22TB1 HDD with OptiNANDTM technology is the next step in data density, allowing data centers to maximize their storage, especially in footprint- and power-constrained environments.
The 24TB / 22TB drive combines several innovative technologies including energy-assist magnetic recording (EAMR), HelioSeal®, triple-stage actuator (TSA) that improves TPI capability with greater control over the actuator arm, improved OptiNAND Technology and ArmorCacheTM. This innovation is incorporated into a 10-disk CMR drive, delivering the performance, quality, and reliability that data center customers require.
| Category |
Item |
24TB,22TB SATA Models |
24TB,22TB SAS Models |
| Model & Part |
Model Numbers |
WUH722424ALE6L1
WUH722424ALE6L4
WUH722422ALE6L1
WUH722422ALE6L4 |
WUH722424AL5201
WUH722424AL5204
WUH722422AL5201
WUH722422AL5204 |
| Part Numbers |
OF62795 (SED)
OF62796 (Base SE)
OF62784 (SED)
OF62785 (Base SE) |
OF62801 (SED)
OF62802 (Base SE)
OF62790 (SED)
OF62791 (Base SE) |
| Configuration |
Interface |
SATA 6Gb/s |
SAS 12Gb/s |
| Capacity (TB) |
24TB / 22TB |
24TB / 22TB |
| Format: Sector size (bytes) |
4Kn: 4096512e:512 |
4Kn: 4096512e:512 |
| Areal density (Gbits/sq. in.) |
1210 / 1109 |
1210 / 1109 |
| ArmorCache |
Supported |
Supported |
| Performance |
Data buffer (MB) |
512 |
512 |
| Rotational speed (RPM) |
7200 |
7200 |
| Latency average (ms) |
4.16 |
4.16 |
| Interface transfer rate (MB/s, max) |
600 |
1200 |
Sustained transfer rate
(MB/s, max / MiB/s, max) |
298 / 284291 / 277 |
298 / 284291 / 277 |
| Random Read 4KB QD=32 (IOPS) |
212 |
212 |
Random Write 4KB QD=32,
WCE/WCD (IOPS) |
565/565 |
565/565 |
Random 50/50 Read/
Write 4KB QD=4 (IOPS) |
220 |
220 |
| Reliability |
Error rate (non-recoverable, bits read) |
1 in 10¹⁵ |
1 in 10¹⁵ |
| Load/Unload cycles (at 40°C) |
600,000 |
600,000 |
| Availability (hrs/day × days/wk) |
24×7 |
24×7 |
| MTBF (M hours, projected) |
2.5 |
2.5 |
| Annualized Failure Rate (AFR, projected) |
0.35% |
0.35% |
| Limited warranty (yrs) |
5 |
5 |
| Acoustics |
Idle/Operating (Bels, typical) |
2.0/3.2 |
2.0/3.2 |
| Power |
Requirement |
+5 VDC, +12VDC |
+5 VDC, +12VDC |
Random 50/50 Read/Write,
4KB QD=4 @MAX IOPS (W) |
8.4 |
8.7 |
| Idle (W) |
5.5 |
5.8 |
| Power consumption efficiency at idle (W/TB) |
0.23 / 0.25 |
0.24 / 0.26 |
| Physical Size |
z-height (mm) |
26.1 |
26.1 |
| Dimensions (width × depth, mm) |

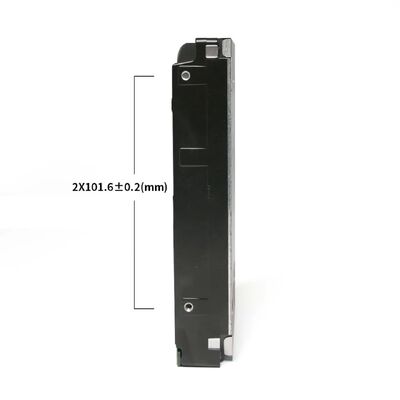

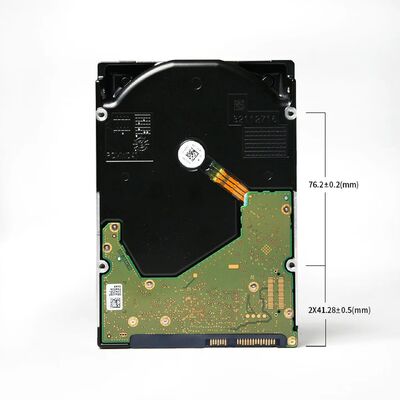

101.6 (+/-0.25) × 147 |
101.6 (+/-0.25) × 147 |
| Weight (g, max) |
670 |
670 |
| Environmental (Operating) |
Temperature |
5°C to 60°C |
5°C to 60°C |
| Shock (half-sine wave 2 ms, G) |
40 |
40 |
| Vibration (G RMS 5 to 500 Hz) |
0.7 |
0.7 |
Environmental
(Non-Operating) |
Ambient Temperature |
-40° to 70°C |
-40° to 70°C |
| Shock (half-sine wave, G) |
200 |
200 |
| Vibration (G RMS 2 to 200 Hz) |
1.04 |
1.04 |
Low Power for Lower Operating Costs
Innovative technologies such as OptiNAND energy-assisted magnetic recording (EAMR), triple-stage actuator (TSA), and HelioSeal enable high capacity with low power.
OptiNAND Technology Benefits
The Ultrastar DC HC580 is the newest-generation platform with OptiNAND technology, which integrates an iNAND® Universal Flash Storage (UFS) Embedded Flash Drive (EFD), with traditional spinning disk media. Western Digital’s new 2.4TB/disk CMR areal density is used with its proven 10-disk platform, delivering up to 24TB1 capacity with a CMR recording format. More disks and high areal density work together to maximize data
storage efficiency.
OptiNAND improves drive resiliency in the event of an emergency power off (EPO) by increasing the amount of non-volatile memory (NVM) available to flush critical metadata to the iNAND.
ArmorCache enabled by OptiNAND technology ensures that all the data in the DRAM cache is safely written to the onboard NVM device, should a sudden power loss event occur. Power to a host system may be lost without warning; operating HDD’s with write cache disabled (WCD) reduced the risk of data loss. With ArmorCache technology, host flush cache commands are no longer necessary to protect data, allowing for maximum performance in either WCD or write cache enabled (WCE) mode. This innovative feature provides enterprise power loss protection of data in WCE while increasing performance in WCD mode.
Trusted Reliability and Quality for Data at Scale
The Ultrastar DC HC580 meets modern data center reliability requirements with 2.5M MTBF2 (projected) and a 5-year limited warranty. It is performance-optimized for heavy application workloads and designed to handle workloads of up to 550TB per year. IT professionals and executives trust Western Digital and the Ultrastar DC HC580 hard drive to deliver unbeaten CM capacity and great value for their data center.
