AI Server FusionServer G5500 V7
Introduction

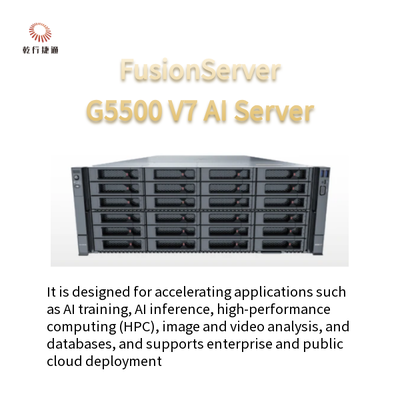

FusionServer G5500 V7 (G5500 V7) is a next-generation 4U 2-socket AI server. It supports up to 10 x dual-width GPU cards and has the capability to accommodate 4 x standard PCIe cards and 3 x OCP cards for extensive expansion. With 24 x 2.5/3.5" drives or 12 x NVMe SSDs, it provides remarkable storage options with ultra-large capacity or ultra-fast storage.
G5500 V7 features high performance, flexible architecture, solid reliability, easy deployment, and simplified management. It is designed for accelerating applications such as AI training, AI inference, high-performance computing (HPC), image and video analysis, and databases, and supports enterprise and public cloud deployment.
| Form Factor |
4U AI server |
| Processor |
2 × 4th/5th Gen Intel® Xeon® Scalable processors, with up to 385 W TDP per processor |
| Chipset |
Emmitsburg PCH |
| Memory |
32 × DIMMs at up to 5600 MT/s, up to 256 GB per DIMM |
| Local Storage |
Hot-swappable and flexible drive configurations:
- Up to 24 × 2.5/3.5" SAS/SATA drives
- Up to 12 × NVMe SSDs and 8 × SATA/SAS drives
Flash storage: dual M.2 SSDs |
| RAID |
RAID 0, 1, 10, 5, 50, 6, and 60; supercapacitors for cache data protection against power failures;
RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| GPU Card |
10 × dual-width GPU cards |
| Network |
Multiple network expansion capabilities, 3 × OCP 3.0 NICs |
| PCIe Expansion |
Up to 14 × standard PCIe 5.0 slots, including 10 × dedicated slots for GPU cards |
| Fan Module |
6 or 8 × hot-swappable counter-rotating fan modules in N+1 redundancy |
| PSU |
4 × 2000 W Platinum/Titanium, 2600 W Platinum, or 3000 W Titanium hot-swappable PSUs in N+N+M redundancy |
| Management |
The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening.
- The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management user interface based on HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management
- It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies, enabling intelligent, automatic, visualized, and refined management throughout the lifecycle |
| OS |
SUSE Linux Enterprise Server, Red Hat Enterprise Linux, and Ubuntu |
| Security |
Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection |
| Operating Temperature |
5°C to 35°C (41°F to 95°F), compliant with ASHRAE Classes A1/A2 |
| Certification |
CCC, CQC, VCCI, and CE |
| Installation Suite |
L-shaped guide rails, adjustable guide rails, and holding rails |
| Dimensions (H × W × D) |
175 mm × 447 mm × 898 mm (6.89 in. × 17.60 in. × 35.35 in.) |
Highlights
Optimal performance
- General computing: 2 x 4th or 5th Gen Intel ® Xeon® Scalable processors with 385 W TDP per processor, and 32 x DDR5 DIMMs, improving overall performance by up to 50%
- Intelligent computing: up to 10 x dual-width GPU cards, improving AI computing by 25% compared with the server with 8 x GPU cards
- Large storage: up to 24 x 2.5/3.5" SAS/SATA drives or 12 x NVMe SSDs + 8 x SATA/SAS drives
- Numerous I/Os: typical configuration of 8 x dual-width GPUs, another 6 x standard PCIe cards and 3 x OCP NICs, leading the industry
Extreme flexibility
- One-click switchover between cascaded and balanced topologies, flexibly adapting to multiple scenarios
- PCIe Retimer-free design, reducing the PCIe lane latency and system power consumption
- GPUDirect Storage/RDMA/P2P, adaptive to large-scale cluster deployment
Ultimate reliability
- Innovative drive design with vibration resistance and noise reduction, diminishing the failure rate by 60% compared to the industry average
- Enhanced system robustness design and automatic firmware recovery
- Reliable fan redundancy: 6 or 8 x customized 8080+ fans in N+1 redundancy
- PSU redundancy and high efficiency: 4 x 3000 W Titanium PSUs in N+N/N+M redundancy
