AI Server FusionServer G8550 V8
Introduction

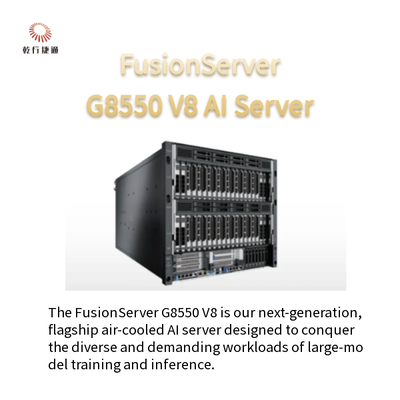

The FusionServer G8550 V8 is our next-generation, flagship air-cooled AI server designed to conquer the diverse and demanding workloads of large-model training and inference. Engineered for peak performance, rock-solid reliability, effortless deployment, and simplified maintenance, the G8550 V8 supercharges AI training and inference, HPC, video/image analytics, and intensive database applications. With its highly flexible configuration options, it seamlessly adapts to both enterprise data centers and public cloud environments, empowering your business across every computing scenario.
| Category |
Details |
| Form Factor |
10U AI server |
| Processor |
2 × 5th Gen AMD EPYC™ 9005 Series (Turin) processors, each with up to 500 W TDP |
| Memory |
24 × DDR5 DIMM slots at up to 6400 MT/s |
| Local Storage |
- Switch-expanded: 16 × 2.5" NVMe drives
- CPU direct-connected: 8 × 2.5" SAS/SATA/NVMe drives + 2 × 2.5" NVMe drives
- Internal: 2 × SATA/PCIe M.2 drives |
| RAID |
RAID 0, 1, 10, 5, 50, 6, and 60;
supercapacitors for cache data protection from power failures;
RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration |
| GPU |
20 × dual-width GPUs |
| Network |
Flexible networking capabilities, supporting 2 × OCP 3.0 NICs |
| PCIe Expansion |
14 × PCIe expansion slots |
| Fan |
20 × 8080 fans in N+1 redundancy |
| PSU |
- 8 × 3200 W dual-input CRPS modules in N+N or N+M redundancy |
| Management |
Standard iBMC Management
- One dedicated GE management port for out-of-band management
- Standard interfaces: Redfish, SNMP, IPMI2.0
- Remote console: HTML5/VNC KVM
- Key features: fault diagnosis, automated O&M, hardware security hardening, monitoring, configuration, Agentless, and remote control
Optional Software Management
- FusionDirector management software
- Five advanced intelligent features
- Intelligent, automated, visual, and granular management across the entire lifecycle
|
| OS |
SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, Oracle, Ubuntu, and openEuler... |
| Security |
Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection |
| Operating Temperature |
5°C to 35°C (41°F to 95°F), compliant with ASHRAE Class A1/A2 |
| Certification |
CE, UL, CCC, VCCI, RoHS |
| Installation Suite |
L-shaped guide rails and adjustable guide rails |
Dimensions
(H × W × D) |
441.7 mm × 447 mm × 900 mm (17.39 in. × 17.60 in. × 35.43 in.) |
Highlights
Powerful Performance
- Outstanding CPU Power: 2 x 5th Gen AMD EPYC™ 9005 Series (Turin) processors, 500 W TDP per CPU
- Ultimate Training & Inference Power: 20 x dual-width GPUs, 600 W TDP per GPU
Pioneering Architecture
- Modular Design: high convergence and low coupling across modules, allowing for flexible reconfiguration and independent evolution
- Ultra-Robust Power Supply: 8 x 3.2 kW 12 V dual-input PSUs in N+1 redundancy, with an expandable power capacity of up to 28.2 kW, fully backward-compatible with single-input power specifications
- Advanced Air Cooling: three isolated airflow zones with intelligent airflow control for key components — proven by over 1,000 hours of rigorous stability testing
Agile O&M
- Toolless & Chassis-in-Rack: slide-out and blind-mate, effortless hot-swapping for key modules
- Flexible Topology: multi-logical configurations for seamless workload tailoring
