Rack Server FusionServer 1158H V7
Introduction

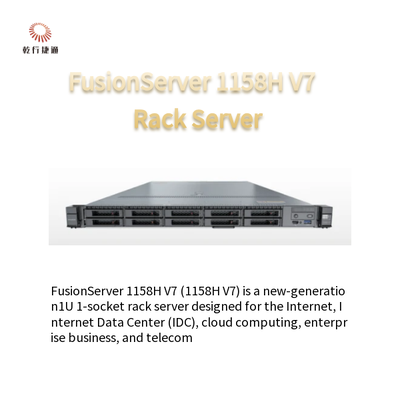

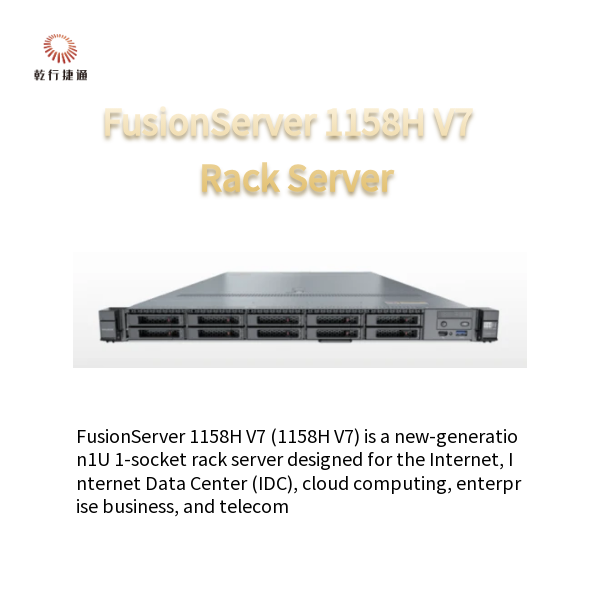

1158H V7 (10 drives) FusionServer 1158H V7 (1158H V7) is a new-generation 1U 1-socket rack server designed for the Internet, Internet Data Center (IDC), cloud computing, enterprise business, and telecom. The 1158H V7 is ideal for IT core services, virtualization, high-performance computing (HPC), and other complex workloads. The 1158H V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management.
Technical Specifications
| Technical Specifications |
| Form Factor |
1U rack server |
| Processor |
1 x 4th Gen AMD® EPYC 9004 Series processors (Genoa),
with up to 400 W TDP per processor |
| Memory |
24 x DDR5 DIMMs slots, delivering up to 4800 MT/s |
| Local Storage |
Hot-swappable and flexible drive configurations:
• 10 x 2.5" SAS/SATA/SSDs (up to 4 x NVMe SSDs or 8 x SAS/SATA drives)
• 10 x 2.5" SAS/SATA/NVMe drives/SSDs
• 2 x M.2 SSDs (SATA/NVMe) |
| RAID |
RAID 0, 1, 10, 5, 50, 6, and 60;
supercapacitor for cache data protection against power failures;
RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| Network |
2 x OCP 3.0 NIC, which can be configured as required and supports hot swap and PCIe 5.0 |
| PCIe Expansion |
5 x PCIe expansion slots, including 2 x FlexIO expansion slot dedicated for an OCP 3.0 NIC and 3 x standard PCIe slots, one of which supports PCIe 5.0 |
| Fan Module |
8 x hot-swappable counter-rotating fan modules in N+1 redundancy |
| PSU |
900W Platinum/Titanium hot-swappable power supply, 1500W/2000W Platinum power supply, supports 1+1 redundancy |
| Management |
The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening.
• The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management interface based on HTML5/VNC KVM, and supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management.
• It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies, enabling an intelligent, automatic, visualized, and refined management throughout the lifecycle. |
| OS |
FusionOS, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler |
| Security |
Power-on password, administrator password, Trusted Platform Module (TPM) 2.0*, security panel, secure boot, and chassis cover opening detection |
| Operating Temperature |
5°C to 40°C (41°F to 104°F), compliant with ASHRAE Classes A1 to A3 |
| Certification |
CE, NRTL, CCC, FCC, VCCI, and RoHS |
| Installation Suite |
L-shaped, adjustable, and holding rails |
Dimensions
(H x W x D) |
43.5 mm × 447 mm × 798 mm (1.71 in. × 17.60 in. × 31.42 in.) |
Highlights
High Computing Density
- High computing density: 1 x 400 W CPUs with highest specifications and 24 x DDR5 DIMMs in a 1U space
- Fast interconnections boosting applications: PCIe 5.0 and 400 Gbit/s interconnections between NICs
- High-speed flash multiplying performance: 10 x 2.5" SAS/SATA drives/NVMe SSDs
Solid Reliability and Security
- Heat pipe remote heat dissipation technology, ensuring reliable heat dissipation and stronger temperature adaptation and improving the heat dissipation capability of a single heat sink by 50%
- Automatically collect fault information when the CPU crashes to support quick fault location
- RoT-based secure boot
Efficient Energy Saving
- The unique algorithm is provided for the lowest power consumption of fans and CPUs, saving energy by up to 8% compared with the industry average
- Three core power supply technologies used to improve supply power and efficiency and enable the industry-leading power conversion rate and the power loss 12.5% lower than the industry average
- Intelligent service awareness and dynamic CPU clock speed adjustment based on actual service loads
Intelligent O&M
- Automatic version push and contactless upgrades, improving upgrade efficiency by 20 times
- 75% tool-based deployment, improving deployment efficiency by 10 times
- Takeover of all vendors' servers, automatic asset locating, real-time tracking, and 100% accuracy of asset stocktaking
