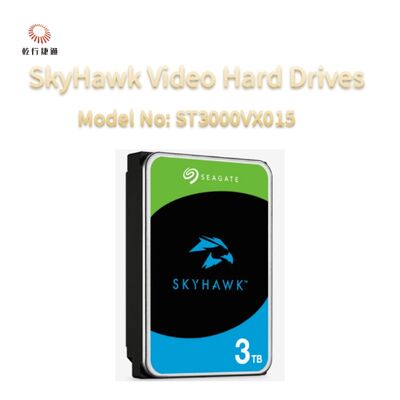

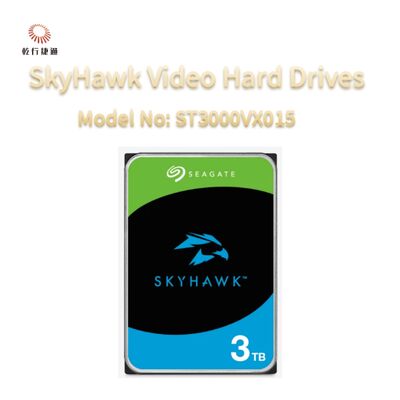

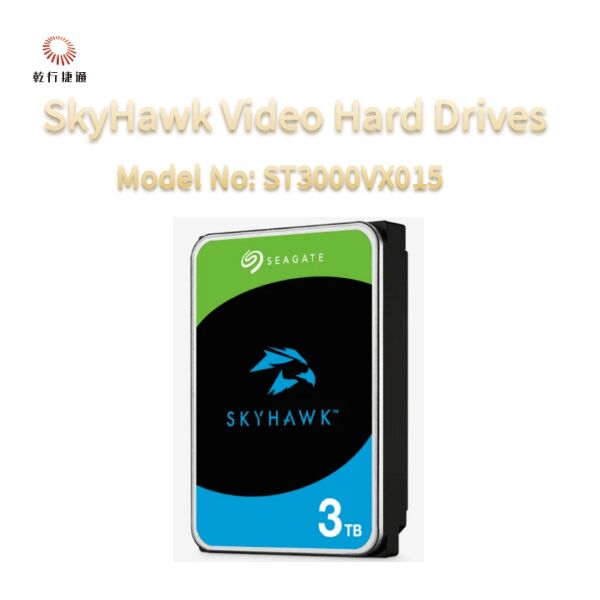

SkyHawk™ leverages Seagate's extensive experience in designing drives purpose-built for video applications.
| Specifications |
4TB |
3TB |
2TB |
1TB |
| Standard Model Numbers with SRS |
ST4000VX016 |
ST3000VX015 |
ST2000VX017 |
ST1000VX013 |
| SkyHawk™ Health Management Included |
Yes |
Yes |
Yes |
Yes |
| Interface |
SATA 6Gb/s |
SATA 6Gb/s |
SATA 6Gb/s |
SATA 6Gb/s |
| Recording Technology |
CMR |
CMR |
CMR |
CMR |
| Drive Design |
Air |
Air |
Air |
Air |
| Features and Performance |
|
|
|
|
| Drive Bays Supported |
Up to 16 |
Up to 8 |
Up to 8 |
Up to 8 |
| Cameras Supported |
Up to 64 |
Up to 64 |
Up to 64 |
Up to 64 |
| RV Sensors |
Yes |
- |
- |
- |
| Max Sustained Transfer Rate OD (MB/s) |
180MB/s |
180MB/s |
180MB/s |
180MB/s |
| Cache (MB) |
256MB |
256MB |
256MB |
256MB |
| Reliability/Data Integrity |
|
|
|
|
| Tarnish Resistant |
Yes |
Yes |
Yes |
Yes |
| Load/Unload Cycles |
600,000 |
600,000 |
600,000 |
600,000 |
| Nonrecoverable Read Errors Rate,Max |
1 per 10E14 |
1 per 10E14 |
1 per 10E14 |
1 per 10E14 |
| Power-On Hours per year |
8,760 |
8,760 |
8,760 |
8,760 |
| Workload Rate Limit (WRL) |
180 |
180 |
180 |
180 |
| Mean Time Between Failures (MTBF) (hours) |
1000000hr |
1000000hr |
1000000hr |
1000000hr |
| Warranty, Limited (years) |
3 |
3 |
3 |
3 |
| Rescue Data Recovery Services (years) |
3 |
3 |
3 |
- |
| Power Management |
|
|
|
|
| Startup Current, Typical (12V, A) |
1.8A |
1.8A |
1.8A |
1.8A |
| Average Operating Power (W) |
3.7W |
3.7W |
3.7W |
3.7W |
| Idle Average (W) |
2.5W |
2.5W |
2.5W |
2.5W |
| Standby Mode/Sleep Mode, Typical (W) |
0.25W |
0.25W |
0.25W |
0.25W |
| Voltage Tolerance (5V) |
±5% |
±5% |
±5% |
±5% |
| Voltage Tolerance (12V) |
±10% |
±10% |
±10% |
±10% |
| Environmental/Temperature |
|
|
|
|
| Operating (ambient, min °C) |
0°C |
0°C |
0°C |
0°C |
| Operating (drive reported, max °C) 4 |
65°C |
65°C |
65°C |
65°C |
| Nonoperating (ambient, min °C) |
-40°C |
-40°C |
-40°C |
-40°C |
| Physical |
|
|
|
|
| Height (mm/in, max) |
20.20mm/0.795in |
20.20mm/0.795in |
20.20mm/0.795in |
20.20mm/0.795in |
| Width (mm/in, max) |
101.6mm/4.0in |
101.6mm/4.0in |
101.6mm/4.00in |
101.6mm/4.00in |
| Depth (mm/in, max) |
146.99mm/5.787in |
146.99mm/5.787in |
146.99mm/5.787in |
146.99mm/5.787in |
| Weight (g/lb, typical) |
630g/1.389lb |
490g/1.08lb |
415g/0.915lb |
415g/0.915lb |
| Carton Unit Quantity |
25 |
25 |
25 |
25 |
| Cartons per Pallet/Cartons per Layer |
40/8 |
40/8 |
40/8 |
40/8 |
Key Advantages
ImagePerfect™ firmware is designed to ensure seamless video footage capture in 24×7 workloads that record video from 64 HD cameras.
SkyHawk Health Management actively helps protect your video storage by focusing on prevention, intervention, and recovery options.Included is RAID RapidRebuild™,which provides 3× faster volume rebuilds over traditional RAID rebuilds.
Unparalleled data protection with included Rescue Data Recovery Services plan,helping protect important video data with Seagate's in-house data recovery services.
RV sensors built in allow drives to maintain performance in multi-bay systems, giving customers the flexibility to scale their systems when more storage is needed.
ATA streaming support enables recordings from up to 64 HD cameras for smooth,uninterrupted footage.
1M hours MTBF, 3-year limited warranty represents an improved total cost of ownership (TCO) with reduced maintenance costs.
Lower power consumption means a reduction in heat emissions, which improves reliability in surveillance solutions. Tarnish-resistant components help protect drive from environmental elements, increasing field reliability.
