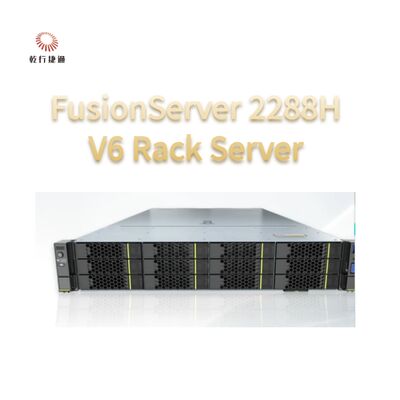

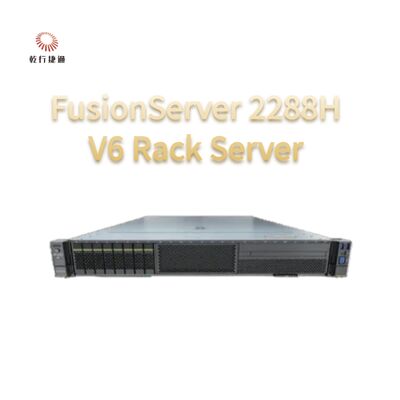

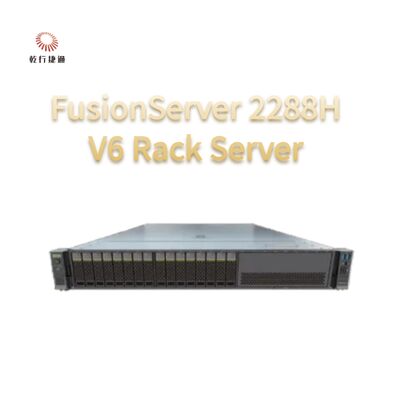

FusionServer 2288H V6 Server22
| Flexible Configurations, Meeting Various Workloads |
FusionSerer 2288H V6 is a 2U 2-socket rack serer with flexible configurations and can be widely used in doud computing,virtualization.databases, and big data. The 2288H V6 is configured with two Intel Xeon Scalable processors, 32 DDR4 DIMMss, and 14 PCle slotsproviding large-capacity storage for local resources. It incorporates patented technologies, such as DEMT and FDM and integratesFusionDirector software for entire-lifecycle management, helping customers drive down OPEX and improve ROI
Superior Performance and Flexible Configuration
Two Intele Xeon Scalable processors can run on a 2U space, wth an UPl bus speed of up to 11.2 GT/s between processors.Each processor supports up to 40 computing cores. It supports Intele Turbo Boost, hyper-threading, and AVX-512, improving thecomputing performance of a single processor by up to 46% compared with that of the previous generation.
Provides 16/32 DDR4 DIMMss and delivers the maximum memory capacity of up to 8 TB (with 256 GB DIMMs). This is idealfor application scenarios that require large-capacity memory.
Supports the use of 16 Optane ThM PMem 200 series with 16 DDR4 DIMMss. The memory capacity is up to 12 TB (with 512 GBOptane TM PMem and 256 GB DDR4 DIMMss) to meet the demands of various workloads
Supports a maximum of four 300 W fullheight ful-ength (FHFL) dual-width GPU acceleration cards, eight FHFL single-wdthGPU acceleration cards, or eleven HHHL single-width GPU accelerator cards, providing powerful heterogeneous computingcapabilities.
Supports a maximum of 45 x 2.5-inch drives or 34 full-NVMe SSDs, meeting high-capacity storage requirements.
Supports OCP 3.0 NICs. The two FlexlO card slots support two OCP 3.0 network adapter respectively, which can be configured asrequired.
Supports boot speedup storage technology (BSST). The OS is installed on two M.2 SSDs, which is deployed separately fromservice data. Supports hardware RAID and hot swappable for M.2 SSDs.
Smart Power Saving and Better Energy Efficiency
Adopts DEMT, driving down overall equipment power consumption by up to 18% without compromising workload performancethrough multiple power-saving measures such as component hibernation, PID algorithm based fan speed tuning, and active-standby power supplies.
Uses 80 PLUS Titanium PSUs that provide a conversion efficiency of up to 96% and has passed the Energy Conservation andEnvironmentally-friendly Certification released by CQC.
Supports 900 W, 1200 W, 1500 W, 2000 W, and 3000 W PSU options, adapting flexibly to different power requirements. The1200 W and 1500 W PSUs use DC and HVDC technologies, improving energy efficiency.
Intelligent Management and Open Integration
Integrates FusionDirector for intelligent full-lifecycle O&M, improving O&M efficiency by 30%
Inteligent maintenance integrates diagnosis and recovery, and accurately manages key components. The faut diagnosisaccuracy reaches 93% and the breakdown rate decreases by 50%.
Intelligent upgrade enables one-cick automation, coud-based collaboration for quick policy formulation, and firmwareversions automatic completeness and upgrade in batches, improving efficiency by 20x
Intelligent discovery enables 100% accuracy of component-evel visualization, automatic asset inventorying in seconds, and
real-time track tracing.
Intelligent energy saving enables refined dynamic energy management. It integrates the DEMT 2.0, saving 18% of thesystem energy.
Intelligent deployment enables pipelined deployment and one-click switchover on demand, improving deploymentefficiency by 10x.
Provides standardized open interfaces and development guides, facilitating seamless integration with third-party
management software.
| Server Type |
2U rack server |
| Processors |
One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Chipset |
Intel C621A |
| Memory |
16/32 DDR4 DIMMss, up to 3,200 MT/s; 16 Optane™ PMem 200 series, up to 3,200 MT/s. |
| Local Storage |
Supports various drive configurations and hot swappable:
•8-31 x 2.5-inch SAS/SATA/SSD drives
•12-20 x 3.5-inch SAS/SATA drives
•4/8/16/24 NVMe SSDs
•45 x 2.5-inch drives or 34 full-NVMe SSDs
Supports flash storage:
•Dual M.2 SSDs |
| RAID Support |
Supports RAID 0, 1, 10, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration. |
| Network |
Provides expansion capability of multiple types of networks.
Provides OCP 3.0 NICs. The two FlexlO card slots support two OCP 3.0 network adapter respectively, which can be configured as required.
Hot swappable function supported. |
| PCIe Expansion |
Provides up to 14 PCIe 4.0 expansion slots for a variety of applications. |
Heterogeneous
Acceleration Cards |
Supports four 300 W FHFL dual-width GPU accelerator cards, eleven HHHL single-width GPU accelerator cards, or eight FHFL single-width GPU accelerator cards. |
| Fan Modules |
Four hot-swappable counter-rotating fan modules in N+1 redundancy mode |
| Power Supply |
Two hot-swappable PSUs in 1+1 redundancy mode. Supported options include:
• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC)
• 1500 W AC Platinum PSUs
1000 W (input: 100 V to 127 V AC)
1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC)
• 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC)
• 1200 W -48 V to -60 V DC PSUs (input: -38.4 V to -72 V DC)
• 3000 W AC Titanium PSUs
2500 W (input: 200 V to 220 V AC)
2900 W (input: 220 V to 230 V AC)
3000 W (input: 230 V to 240 V AC)
• 2000 W AC Platinum PSUs
1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC)
2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC) |
| Management |
The iBMC chip integrates one dedicated GE management portto provide comprehensive management functions such as faut diagnosis.automated O&M, and hardware security hardening.
• The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 20; provides a remote management user interface based on HTMLS/VNC KM; provides out-of-band management funcions such as monitoring, diagnosis, configuration,Agentess and remote control for smartand simplified management.
• (Optional Configured with the FusionDirector management software to provide advanced management functions such as five intelligenttechnologies, realizing intelligent, automatic, visualized, and refined management throughout the lifecycle |
| Operating Systems |
Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, etc. |
| Security Features |
Power-on password, administrator password, TPM 2.0, security panel, secure boot, and cover opening detection. |
| Operating Temperature |
5°C to 45°C (41°F to 113°F) (ASHRAE Classes A1 to A4 compliant) |
| Certifications |
CE, UL, CCC, FCC, VCCI, RoHS, etc |
| Installation Kit |
L-shaped guide rails, adjustable guide rails, and holding rails. |
Dimensions
(H x W x D) |
86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10in.) |
