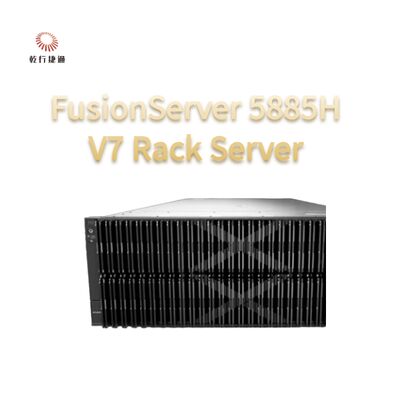

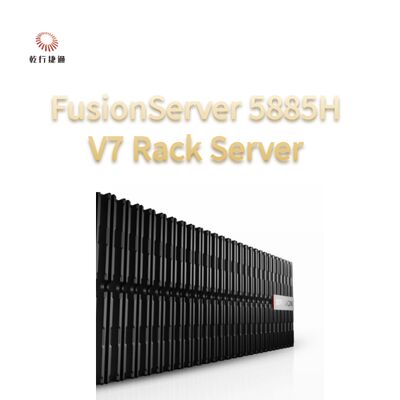

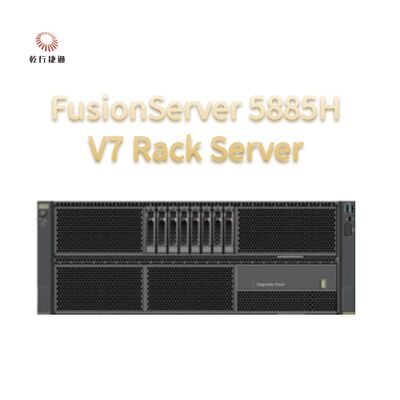

FusionServer
5885H V7 Rack Server5
H
Introductiona
FusionServer 5885H V7 (5885H V7) is a 4U 4-socket rack server designed for the Internet Data Center (IDC), cloud computing, enterprise business, and telecom. It is also ideal for various applications, such as databases, virtualization, and in-memory computing. The 5885H V7 features high-performance computing, large-capacity storage, low power consumption, high scalability and reliability, easy deployment, and simplified management.
er
High Efficiency, Stability, and Scalability
- 4 x new-generation Intel ® Xeon® Scalable processors (Sapphire Rapids) in 4U space, up to 60 x cores and 120 x threads per processor, with TDP up to 350 W - Up to 64 x DDR5 DIMMs, delivering up to 16 TB total memory capacity (calculated based on a maximum of 256 GB capacity per DDR5 memory module) and featuring high speed and availability - Up to 52 x 2.5" drives - Up to 24 x 2.5" NVMe SSDs, improving storage density and I/O performance - Up to 21 x standard expansion slots - 1 x GE/10GE/25GE/100GE OCP 3.0 NIC that supports orderly hot swap
Reliability and Security
- Unique AI memory fault self-healing ensures stable system running and reduces system downtime by 66% - RoT-based secure boot ensures security everywhere
Efficient Energy Saving
- Automatic version push and upgrades can be completed without onsite attendance, improving upgrade efficiency by 20 times - 75% streamlined deployment steps are performed by tools, improving deployment efficiency by 10 times - Supports takeover of all vendors' servers, automatic asset location identification, and real-time tracking, 100% accuracy for asset stocktaking
Intelligent O&M Rack Server
- The unique algorithm is provided for the lowest power consumption of fans and CPUs, saving energy by up to 8% compared with the industry average - Industry-leading power supply technology for higher efficiency: Three core technologies improve power and efficiency, enabling the industry-leading power conversion rate and the power loss 12.5% lower than the industry average - Intelligent service awareness and dynamic load adjustment: The CPU working frequency is dynamically adjusted based on the actual service loader
Technical Specifications
| Form Factor |
4U rack server |
| Processor |
2 or 4 x 4th Gen Intel® Xeon® Scalable processors (Sapphire Rapids) with TDP up to 350 W per processor |
| Chipset |
Emmitsburg PCH |
| Memory |
64 x DDR5 DIMMs |
| Local Storage |
Hot-swappable drives configurations:
- 8, 24, 25, or 50 x front 2.5" SAS/SATA drives
- 4 x front 2.5" SAS/SATA drives and 8 x NVMe SSDs
- 24 x front NVMe SSDs
- 25 x front 2.5" SAS/SATA drives and 24 x front NVMe SSDs
- 36 x front E1.S SSDs
- Up to 52 x 2.5" drives
Flash storage: Flash storage:2 x M.2 SSDs, supporting hardware RAID |
| RAID |
RAID 0, 1, 10, 1E, 5, 50, 6, or 60; supercapacitors for cache data protection from power failures; RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| Network |
Multiple network expansion capabilities: 1 x OCP 3.0 NIC, supporting hot swap |
| PCIe Expansion |
Up to 22 x PCIe slots, including 1 x FlexIO slot dedicated for the OCP 3.0 NIC and 21 x standard PCIe slots |
| GPU Card |
4 x dual-width GPU cards; 14 x single-width GPU cards |
| Fan Module |
6 or 8 x hot-swappable fan modules in N+1 redundancy |
| PSU |
900 W/1200 W/1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 2+2 redundancy |
| Management |
The iBMC chip integrates one dedicated management GE network port, providing comprehensive
management features such as fault diagnosis, automatic O&M, and hardware security hardening.
- The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote
management user interface based on HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management- It is optional to configure the FusionDirector management software that provides advanced
management features such as five intelligent technologies, enabling intelligent, automatic,
visualized, and refined management throughout the lifecycle |
| OS |
FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler |
| Security |
Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection |
| Operating Temperature |
5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A1/A2/A3/A4 |
| Certification |
CE, UL, CCC, FCC, VCCI, and RoHS |
| Installation Suite |
L-shaped guide rails, adjustable guide rails, and holding rails |
Dimensions
(H x W x D) |
Chassis with 2.5" drives: 175 mm x 447 mm x 898 mm (6.89 in. x 17.60 in. x 35.35 in.) |
