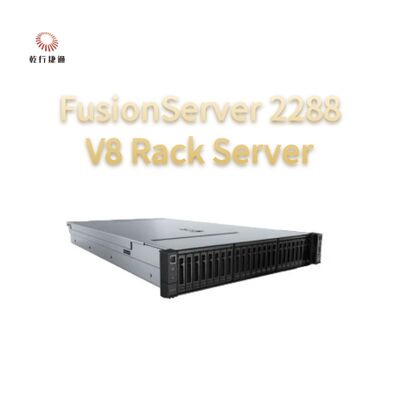

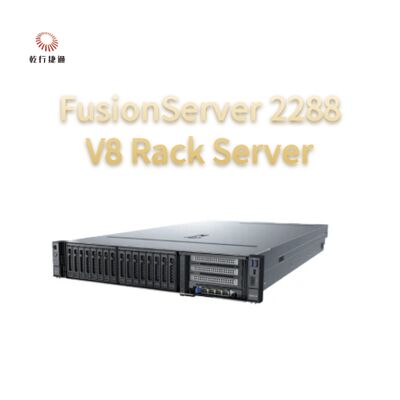

R a c k S e r v e r FusionServer 2288 V8
Introduction
The FusionServer 2288 V8 is a next-generation 2U2P rack server tailored to meet the demands of AI inference, cloud computing, virtualization, High-Performance Computing (HPC), graphics processing, VDI, and big data analytics.
Offering low power consumption, unmatched scalability, solid reliability, and ease of management and deployment, the 2288 V8 is an ideal choice for addressing massive workloads in industries such as Internet, telecom, government and enterprise, finance, and manufacturing.
Highlights
Supreme Computing - Power-Packed Performance:2 x Intel ® Xeon®6 6700P/6500P/6700E series processors - Exceptional Scalability:Up to 10 x standard PCIe slots and 2 x OCP 3.0 slots, supporting PCIE 5.0 and cables routing from the front panel - High-speed flash memory and diverse configurations: (1)Up to 20 x 3.5”drives*； (2) Up to 33 x 2.5”drives*; (3) Up to 36 x E3.s SSDs*
Outstanding Security - Enhanced Maintenance Efficiency: Quick, precise PCIe link fault diagnosis, boosting efficiency by 50% - Reduced System Downtime: Industry-exclusive AI memory self-healing, with precise memory link diagnosis, cutting downtime by 66% Optimal
Energy Efficiency - Dynamic Energy Management: Intelligent, non-disruptive tuning based on workloads, achieving peak energy efficiency without rebooting - Industry-Leading Power Supply: 97% power conversion efficiency, driven by three core innovations, setting the benchmark
| Form Factor |
2U Rack Server |
| Processor |
2 x Intel ® Xeon®6 6700P/6500P/6700E Scalable processors with TDP 350W per processor |
| Memory |
32 x memory slots available for DDR5 DIMMs at up to 6400 MT/s or MRDIMMs at up to 8000 MT/s |
| Local Storage |
Hot-swappable drives configurations:
- Up to 20 x 3.5”drives*
- Up to 33 x 2.5”drives*
- Up to 36 x E3.s SSDs*
Flash storage: 2 x M.2 SSDs, hardware RAID, and hot swap |
| RAID |
RAID 0, 1, 10, 1E, 5, 50, 6, or 60; supercapacitors for cache data protection from power failures;
RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| Network |
Multiple network expansion capabilities; 2 x FlexIO card slots dedicated for OCP 3.0 NICs
which can be configured as required; supporting hot swap and PCIe 5.0 |
| PCle Expansion |
Up to 10 x standard PCIe slots and 2 x OCP 3.0 slots, supporting PCIE 5.0 and cables routing from the front panel |
| GPU Card |
4 x dual-width GPU cards* |
| Fan |
4 or 6 x hot-swappable counter-rotating fans in N+1 redundancy |
| PSU |
900 W/1200 W/1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy |
| Management |
The iBMC chip integrates one dedicated management GE network port, providing comprehen-sive management features such as fault diagnosis, automatic O&M, and hardware security hardening.
The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management user interface based on HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management.
It is optional to configure The FusionDirector management software that provides advanced management features such as five intelligent technologies, enabling intelligent, automatic,visualized, and refined management throughout the lifecycle |
| OS |
Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, Oracle, Ubuntu, and openEuler |
| Security |
Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection |
| Operating Temperature |
5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A1/A2/A3/A4 |
| Installation Suite |
L-shaped guide rails, adjustable guide rails, and holding rails |
| Dimensions (H x W x D) |
86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.) |
Notices:
1. Open the packaging, check the products carefully, and take them gently.
2. The product is a brand new original unopened equipment.
3. All products 1 year warranty, and the buyer is responsible for the return shipping cost.
International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
