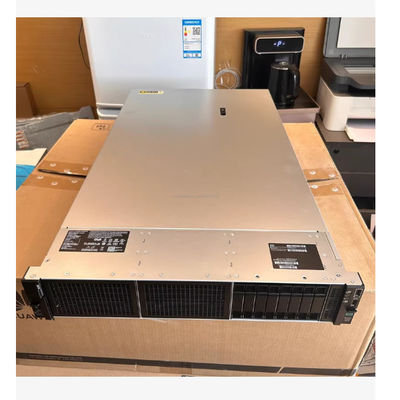

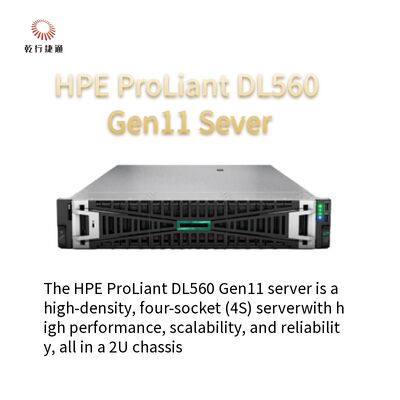

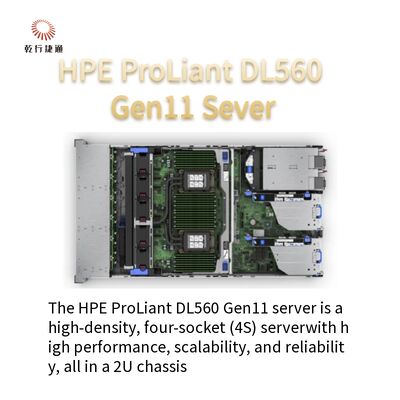

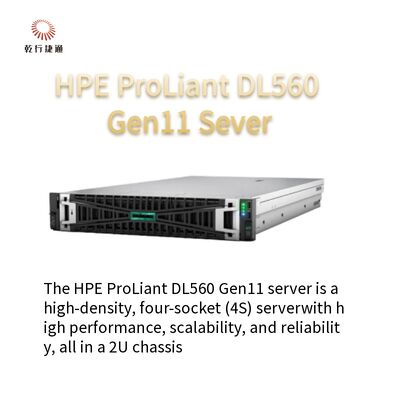

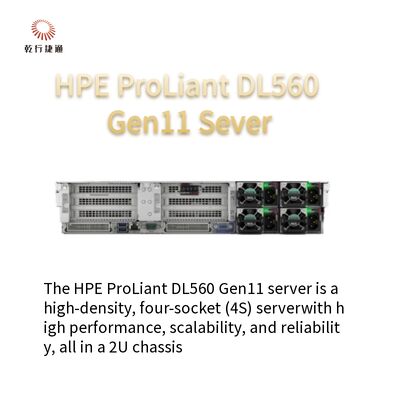

Revolutionize Data Center HPE ProLiant DL560 Gen11 Animation Video Ultimate Speed And Scalable Server

Processor

Processor typeIntel®

Processor family4th Generation Intel® Xeon® Scalable Processors

Processor number2 or 4

Processor core available8 to 60 core, depending on processor.

Processor speed3.7 GHz maximum, depending on processor.

Processor cache22.5 MB to 112.5 MB L3, depending on processor.

Server Memory

Memory typeHPE DDR5 SmartMemory

Maximum memory16 TB with 256 GB DDR5

Memory slots64

Memory protection featuresRAS – Advanced ECC, online spare, mirroring, combined channel (lockstep) functionality, and HPE Fast Fault Tolerant Memory (ADDDC); Intel Optane Persistent Memory

Server Cooling

System fan featuresLiquid cooling solution, Hot-plug redundant fans, Performance Fan Kit or High Performance Fan Kit, depending on model.

Server Expansions

Expansion slotsUp to 6 PCIe Gen5, and 2 OCP 3.0, for detailed descriptions reference the QuickSpecs.

Server Controllers

Network controller1 Gb, 10 Gb, 10/25 Gb, 100 Gb, or 200 Gb, in PCIe adapter or OCP 3.0 form factor; for detailed descriptions reference the QuickSpecs.

Storage controllerHPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller,
HPE SR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller,
HPE SR932i-p Gen11 x32 Lanes 8GB Wide Cache PCI SPDM Plug-in Storage Controller,
HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller,
HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller,
HPE SR308i-p Gen11 x8 Lanes 2GB Cache PCI Plug-in Storage Controller,
HPE SR308i-o Gen11 x8 Lanes 2GB Cache OCP Storage Controller,
HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller,
HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller,
HPE MR216i-o Gen11 x16 Lanes without Cache OCP SPDM Storage Controller, for detailed descriptions reference the QuickSpecs.

Server Drives

Drive supported8, 16, or 24 SFF SAS/SATA/SSD/NVMe, depending on configuration.

Optical drive typeOptional DVD-ROM Optional via Universal Media Bay External support only.

Server Power

Power supply type800W, 1000W, 1600W or 2200W Dual hot-plug redundant 1+1 redundant or 2+2 redundant or 3+1 redundant
and 4+0 redundant, depending on model.

Management Software

Infrastructure managementHPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE OneView Advanced (optional, requires licenses), and HPE GreenLake COM.

Security

SecurityHPE TPM 2.0 standard on motherboard. Optional locking Bezel Kit, Intrusion Detection Kit.

Warranty

Warranty3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: https://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage, to supplement the product warranty, is available. For more information, visit https://www.hpe.com/support.
