Product Details:
|
Highlight: | H3C S6520X-EI Series Enhanced 10GE Switches,H3C Layer 3 Core Switches |
---|
Detailed parameters
Main parameters:
Port parameters
Features
Other parameters
Main parameters:

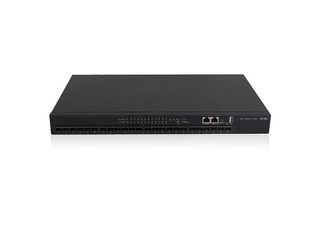

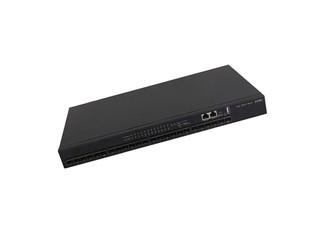

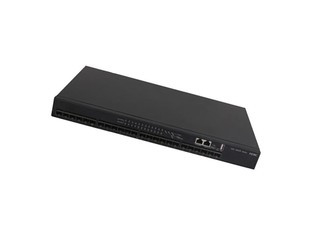

The model number is S6520X-24ST-SI
Product Type: 10 Gigabit Ethernet Switch
The backplane bandwidth is 2.56Tbps/23.04Tbps
Packet forwarding rate of 360Mpps
MAC address table Static MAC addresses are supported
Blackhole MAC addresses are supported
You can set the maximum number of MAC addresses on a port to learn
Openflow 1.3.1 is supported
Port parameters
Port structure POE power supply, PWR and HPWR models support 802.3at/POE+ power supply standard, UPWR model supports 802.3bt/POE++ power supply standard
Port Description: 24 x 1/10G SFP Plus ports (2 x Combo 1G/2.5G/5G/10G Base-T Adaptive Ethernet ports)
Control port: 1 console port, 1 management Ethernet port, 1 USB port, 1 micro USB port
Features
VLANs support port-based VLANs (4094)
Default VLANs are supported
QINQ is supported
Flexible QINQ is supported
VLAN MAPPING IS SUPPORTED
PVST+ support RPVST+ support
QOS ALLOWS YOU TO LIMIT THE RATE AT WHICH A PORT CAN RECEIVE PACKETS AND THE RATE AT WHICH PACKETS CAN BE SENT
CAR function is supported
Each port supports 8 output queues
It supports flexible queue scheduling algorithms, which can be set based on ports and queues at the same time, and supports multiple modes such as SP and WRR
802.1p and DSCP priority re-labeling of packets is supported
Support L2 (Layer 2) ~ L4 (Layer)
4) Packet filtering function, which provides traffic classification based on source MAC address, destination MAC address, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, port, protocol, and VLAN
Time Range
Multicast Management supports IGMP Snooping v2/v3
IGMP Snooping Fast-leave is supported
IGMP Snooping Group-policy is supported
Support PIM-SM, PIM-SSM
Support for PIM snooping
MVRP is supported
MFF is supported
Enhanced Layer 3 multicast protocol is supported
Network management supports IPv4, IPv6 static routing, RIP and other Layer 3 dynamic routing protocols
Policy Router support is supported;
RIP v1/2 and RIPng are supported
Layer 3 routing protocols, such as equivalent cost routing, VRRP, OSPFv1/v2, OSPF v3, BGP, and ISIS, are supported
Security management supports hierarchical user management and password protection
Centralized MAC address authentication is supported
802.1X is supported
Support for Storm Constrain
AAA certification is supported
RADIUS authentication is supported
HWTACACS is supported
SSH 2.0 is supported
Port isolation is supported
IP+MAC+port binding is supported
IP Source Guard is supported
HTTPs are supported
SSL is supported
Support PKI (Public Key Infrastructure)
CPU protection is supported
