10/100/1000BASE-T Ethernet Electrical Interface RJ45 10/100/1000BASE-T Ethernet electrical interface is mainly used for receiving and transmitting 10 Mbit/100/Gigabit services.
10GE SFP+ Ethernet Optical Interface The SFP+ SFP+ Ethernet optical interface supports 1000M adaptive and is mainly used for receiving and transmitting gigabit/10000 gigabit services.
Industrial-grade optical transceiver (only supports optical transceiver with a maximum distance of ≤10km)
Console interface The RJ45 console interface is used to connect to the console and implement on-site configuration functions.

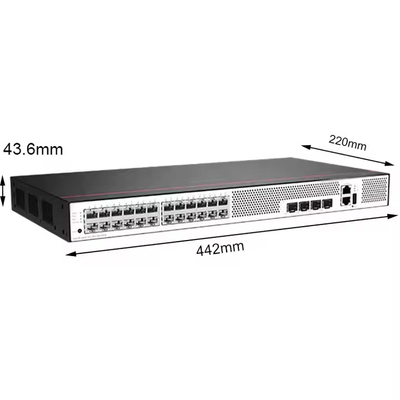

Dimensions (W x D x H, excluding packaging material) [mm]
Basic dimensions (depth is the distance excluding the protruding structural parts of the front and rear panels): 442.0mm× 220.0mm×43.6mm
Maximum dimensions (depth is the maximum distance from the port protruding on the front panel to the structural member protruding on the rear panel): 442.0mm× 227.0mm×43.6mm
Dimensions (W x D x H, including packaging material) [mm] 550.0mm× 360.0mm×90.0mm
Chassis height [U] 1U
Weight (excluding packaging materials) [kg] 2.45kg
Weight (including packaging materials) [kg] 3.34kg
Typical power consumption [W] 32.7W
Typical heat dissipation value [BTU/hour] 111.58BTU/hour
Maximum power consumption [W] 47.6W
Maximum heat dissipation value [BTU/hour] 162.42BTU/hour
Quiescent power consumption [W] 18.4W
MTBF [years] 64.3years
MTTR [hours] 2hours
Availability > 0.99999
Ambient Noise (Sound Power) [dB(A)] 39dB(A)
Ambient Noise (Sound Pressure) [dB(A)] 27.2dB(A)
The number of card slots is 0
The number of power slots is 0
Number of Fan Modules 1
Power redundancy is not supported
Long-term operating ambient temperature [°C]
-5°C~+50°C (0m~1800m altitude, supporting non-industrial optical module)
-5°C~+55°C (0m~1800m altitude, supporting ≤10km industrial-grade optical module)
Operating Ambient Temperature Variation Limit [°C]
1800m~5000m, the maximum temperature specification is reduced by 1°C for every 220m increase in altitude.
The device does not support starting when the ambient temperature is below 0°C.
When the optical module is ≥ 70km distance, the operating temperature is -5°C~+45°C.
Storage temperature [°C] -40°C~+70°C
Long-term working environment relative humidity [RH] 5%RH~95%RH, non-condensing
Long-term working altitude [m] 0m~5000m
Storage altitude [m] 0m~5000m
Power supply system: Built-in AC power supply
Rated input voltage [V]
AC input: 100V AC~240V AC; 50/60Hz
High voltage DC input: 110V DC~250V DC
Input voltage range [V]
AC input: 90V AC~264V AC; 47Hz~63Hz
High voltage DC input: 88V DC~300V DC
Maximum input current [A] 2A
RAM 512MB
Flash 512MB
Console interface type RJ45
ETH management port type is not supported
USB interface is not supported
Real-time clocks (RTCs) are not supported
