Product Details:
|
| High Light: | 3204/16G/2T/R530-8i Rack Server Host,Lenovo SR588 Database Virtualization,2U Rack Server Host |
||
|---|---|---|---|
Shape/height

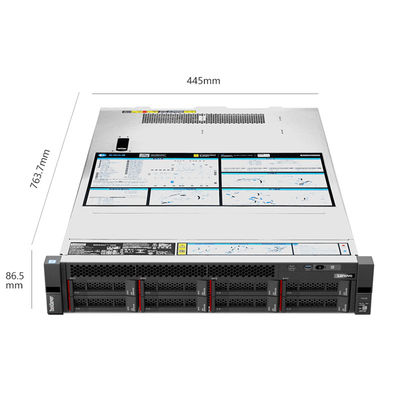

Outline/height 2U
processor
Processors up to 2 2nd Gen Intel ® Xeon ® Scalable processors Platinum series, up to 150W, up to 24 cores per CPU
memory
MemoryUp to 1TB of 2933MHz TruDDR4 (plan supported) memory with 16 sockets and support for Intel ® Optane ™ DC persistent memory
hard disk
Disk bays for up to 16 x 2.5-inch drives or 12 x 3.5-inch hot-swappable drives or up to 8 x 3.5-inch easy-swappable drives;
Up to 4 NVMe drives can be supported with an optional AnyBay backplane
Scalability
Expansion slots with up to 6 PCIe 3.0 slots provide flexibility for multiple I/O configurations via expansion cards
Internal memory
Up to: 168TB (3.5-inch SAS/SATA HDD);
107.6TB (3.5-inch SSD);
38.4TB (2.5-inch SAS/SATA);
122.9TB (2.5-inch SSD);
16TB (2.5-inch direct-attached NVMe);
Up to 2 M.2 SSDs (with Raid 1 support)
Internet
The network interface comes standard with a 2 GbE port;
LOM interface as standard;
Optional ML2
power supply
Power supply up to 2 hot-swappable/redundant 550W/750W Platinum, 750W Titanium
Administrative
administering the XClarity Administrator;
XClarity Controller (embedded hardware);
Optional XClarity Pro
operating system
Operating systems Microsoft, SUSE, Red Hat, VMware are supported
safe
Security Lenovo ThinkShield, Locking Panel, Locking Top Cover;
TPM 2.1 as standard;
Optional TCM
Availability and redundancy
Availability and redundancy hot-swappable HDD/SSD/NVMe,
Hot-swappable power supplies and fans,
Optical pathway diagnostics,
PFA for all major components, ASHRAE A4 support (with limitations),
Optional XClarity Pro with remote alarming.
port
NIC ports come standard with 2 GbE ports;
1 dedicated GbE management port as standard;
Choose up to 2 x 1GbE, 2 x 10GBase-T, or 2 x 10GBase SFP+
HBA/RAID support
HBA/RAID supports software RAID (up to 8 ports) as standard;
Up to 16-port HBAs/or hardware RAID with flash cache
serve
Limited warranty 3 years, 7*24*4 nationwide door-to-door limited warranty service and installation service
