Network Communication Datacom Switches HUAWEI S5731S-S32ST4X-A1

Network Communication Datacom Switches HUAWEI S5731S-S32ST4X-A1
Network Communication Datacom Switches HUAWEI S5731S-S32ST4X-A1 Network Communication Datacom Switches HUAWEI S5731S-S32ST4X-A1 Network Communication Datacom Switches HUAWEI S5731S-S32ST4X-A1 Network Communication Datacom Switches HUAWEI S5731S-S32ST4X-A1

Large Image :  Network Communication Datacom Switches HUAWEI S5731S-S32ST4X-A1

Product Details:
Brand Name: HUA WEI
Model Number: HUAWEI switch S5731S-S32ST4X-A1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $705.7362~1143.2927 Negotiable
Payment Terms: T/T
Supply Ability: 100

Network Communication Datacom Switches HUAWEI S5731S-S32ST4X-A1

Description
Product Name: Network Communication Switch Brand Model Number: HUAWEI Switch S5731S-S32ST4X-A1
Number Of Ports: 32port Port Type: 24 Gigabit SFP Uplink 4 10 Gigabit SFP+
High Light:

Network Communication Datacom Switches

,

HUAWEI S5731S-S32ST4X-A1 Datacom Switches

S5731S-S32ST4X-A1 (98011809)

Table 4-1367 Basic information about the S5731S-S32ST4X-A1

Item Details
Description S5731S-S32ST4X-A1(8*10/100/1000BASE-T ports, 24*GE SFP ports, 4*10GE SFP+ ports, AC power, front access)
Part Number 98011809
Model S5731S-S32ST4X-A1
First supported version V200R021C01



Components

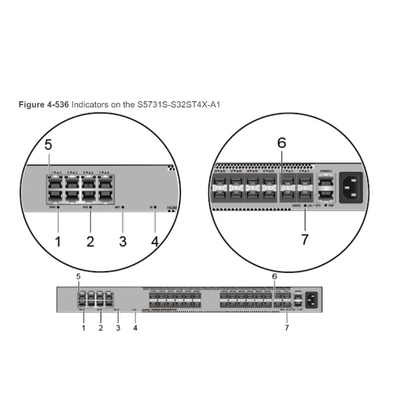

Figure 4-535 S5731S-S32ST4X-A1 appearance
1 Eight 10/100/1000BASE-T ports 2 Twenty-four 100/1000BASE-X ports
3 Four 10GE SFP+ ports 4 One console port
5 One ETH management port 6

One PNP button

NOTICE:

To restore the factory settings and reset the switch, hold down the button for at least 6 seconds.

To reset the switch, press the button.

Resetting the switch will cause service interruption. Exercise caution when you press the PNP button.

7

AC socket

NOTE:

It is used with an AC power cable.

8

Ground screw

NOTE:
It is used with a ground cable.

Power Supply System

The switch has a built-in AC power module and does not support pluggable power modules.

Heat Dissipation System

The switch has two built-in fans for forced air cooling. Air flows in from the left side and front panel, and exhausts from the right side.

Technical Specifications

Table 4-1370 Technical specifications of the S5731S-S32ST4X-A1
Item Specification
Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.40 in. x 8.66 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.40 in. x 8.94 in.)

Dimensions with packaging (H x W x D) [mm(in.)] 90 mm x 550 mm x 355 mm (3.54 in. x 21.65 in. x 13.98 in.)
Chassis height [U] 1 U
Weight without packaging [kg(lb)] 3.13 kg (6.90 lb)
Weight with packaging [kg(lb)] 4.49 kg (9.90 lb)
Typical power consumption [W] 66.85 W
Typical heat dissipation [BTU/hour] 228.10 BTU/hour
Maximum power consumption [W] 93.92 W
Maximum heat dissipation [BTU/hour] 320.46 BTU/hour
Static power consumption [W] 41.71 W
MTBF [year] 32.56 year
MTTR [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] 41.42 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)] 27.74 dB(A)
Number of card slots 0
Number of power slots 0
Number of fans modules 2
Redundant power supply Not supported
