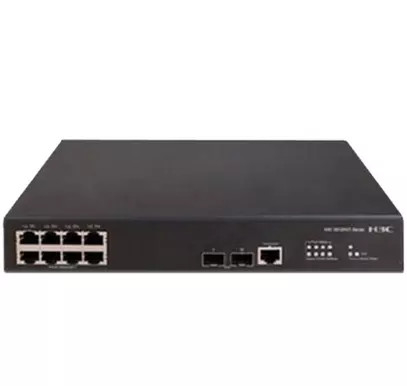

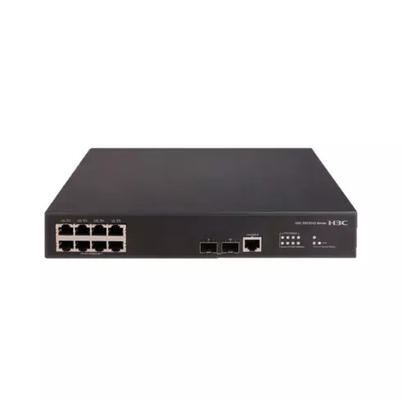

Full Gigabit Two Layer 8 Port Poe Managed Switch S5120V2-10P-PWR-LI H3C

Full Gigabit Two Layer 8 Port Poe Managed Switch S5120V2-10P-PWR-LI H3C
Full Gigabit Two Layer 8 Port Poe Managed Switch S5120V2-10P-PWR-LI H3C Full Gigabit Two Layer 8 Port Poe Managed Switch S5120V2-10P-PWR-LI H3C Full Gigabit Two Layer 8 Port Poe Managed Switch S5120V2-10P-PWR-LI H3C Full Gigabit Two Layer 8 Port Poe Managed Switch S5120V2-10P-PWR-LI H3C

Large Image :  Full Gigabit Two Layer 8 Port Poe Managed Switch S5120V2-10P-PWR-LI H3C

Product Details:
Place of Origin: China
Brand Name: H3C
Model Number: S5120V2-10P- PWR-LI
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $330-460 pcs Negotiable
Packaging Details: Carton Packaging
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 50/pcs/week

Full Gigabit Two Layer 8 Port Poe Managed Switch S5120V2-10P-PWR-LI H3C

Description
Switching Capacity: 20Gbps Packet Forwarding Rate: 15Mpps
Dimensions (H × W × D): 43.6× 330 × 230 Mm Console Ports: 1
Weight: ≤ 3kg Fixed Ports: 8*10/100 /1000TX+2*SFP
High Light:

Two Layer 8 Port Poe Managed Switch

,

Full Gigabit 8 Port Poe Managed Switch

,

S5120V2-10P-PWR-LI H3C

S5120V2-10P-PWR-LI H3C 8-port full gigabit two-layer network-managed POE power supply switch

H3C S5120V2-LI Gigabit Access Switch Series



H3C S5120V2-LI is the latest development of Gigabit Layer 2 access switch. It’s the second generation intelligent managed switches designed for networks requiring high performance, high port density and easy to use.
H3C S5120V2-LI series switch offers Gigabit connectivity with10/100/1000 autosensing ports and SFP optical uplink ports.

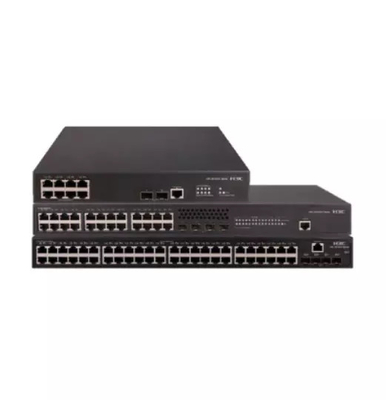

H3C S5120V2-LI series switch includes eight models as follows:
S5120V2-10P-LI:8 *10/100/1000TX+ 2*SFP
S5120V2-20P-LI:16*10/100/1000TX+ 4*SFP
S5120V2-28P-LI:24 *10/100/1000TX+ 4*SFP
S5120V2-52P-LI:48*10/100/1000TX+ 4*SFP
S5120V2-10P-PWR-LI:8 *10/100/1000TX+ 2*SFP
S5120V2-28P-PWR-LI:24 *10/100/1000TX+ 4*SFP
S5120V2-28P-HPWR-LI:24*10/100/1000 BASE-T + 4*SFP + 4*10/100/1000 BASE-T COMBO
S5120V2-52P-PWR-LI:48*10/100/1000TX+ 4*SFP

Specification

Feature

S5120V2
-10P-LI

S5120V2
-20P-LI

S5120V2
-28P-LI

S5120V2
-52P-LI

S5120V2
-10P- PWR-LI

S5120V2
-28P- PWR-LI

S5120V2
-28P- HPWR-LI

S5120V2
-52P- PWR-LI

Switching capacity 20Gbps 40Gbps 56Gbps 104Gbps 20Gbps 56Gbps 56Gbps 104Gbps
Packet forwarding rate 15Mpps 30Mpps 41.7Mpps 77.4Mpps 15Mpps 41.7Mpps 41.7Mpps 77.4Mpps


Dimensions (H × W × D)

43.6×
266 ×
161 mm

43.6×
330 ×
230 mm

43.6×
440 ×
160 mm

43.6×
440 ×
230 mm

43.6×
330 ×
230 mm

43.6×
440 ×
260 mm

43.6×
440 ×
260 mm

43.6×
440 ×
260 mm

Weight ≤ 1.5kg ≤ 2kg ≤ 2.5kg ≤ 3.5kg ≤ 3kg ≤ 4kg ≤ 4.5kg ≤ 6kg
Console ports 1



Fixed ports


8*10/100
/1000TX


16*10/10
0/1000TX


24*10/10
0/1000TX


48*10/10
0/1000TX


8*10/100
/1000TX


24*10/10
0/1000TX

24*10/10
0/1000TX
+4*10/100/ 1000 BASE-T Combo


48*10/10
0/1000TX

+2*SFP +4*SFP +4*SFP +4*SFP +2*SFP +4*SFP + 4*SFP +4*SFP


Input voltage range


100 VAC to 240 VAC @ 50 Hz/60 Hz

AC: 100-240V @50/60Hz
DC: -48V~-60V





Power consumption



MIN: 7W MAX: 12W



MIN: 9W MAX: 19W



MIN: 9W MAX: 23W



MIN: 18W MAX: 41W



MIN: 13W MAX:153W (PoE
125W)



MIN: 19W MAX: 240W(PoE
170W)

MIN:
AC: 23W DC: 16W MAX:
AC: 446W
(PoE 370W) DC:
790W(PoE
740W)

MIN:
AC: 36W DC: 26W MAX:
AC: 467W
(PoE 370W) DC:
807W(PoE
740W)

Operating temperature 0ºC to 45ºC
Operating humidity 10% RH to 95% RH, non-condensing
Stacking Intelligent Resilient Framework 2 (IRF2)


Link aggregation

1G/10GE port aggregation
Static aggregation
Dynamic aggregation
Multichassis link aggregation

Jumbo frame Supported
MAC address table Blackhole MAC Address MAC learning limit
Flow control 802.3x flow control and half-duplex backpressure


VLAN

Port-based VLAN QinQ
Voice VLAN
MAC VLAN

ARP

ARP Detection
ARP speed limit

ND Supported
VLAN virtual port Supported



DHCP

DHCP Client
DHCP Snooping
DHCP Relay
DHCP Server
DHCP Option82

DNS Static and Dynamic DNS IPV4 and IPV6
Routing protocols IPV4/IPV6 static routing RIP/ RIPng, OSPFV1/V2/V3
Multicast

IGMP Snooping V1/V2/V3
MVR

Strom suppression Storm suppression based on port bandwidth percentage Storm suppression based on PPS


Layer 2 ring network protocol

STP/RSTP/MSTP
STP Root Protection
Smart Link
RRPP

Mirroring

Flow mirroring
Port mirroring


QoS/ACL

Packet filter
Flexible queue scheduling algorithms based on ports and queues, including SP, WRR and SP+WRR Bidirectional ACL
Port-based speed limit Flow redirection
Time-range





Security

Hierarchical user management and password protection MAC- based authentication
802.1X
SSH2.0
Port isolation
IP source guard
HTTPs
EAD

IEEE

IEEE 802.3x
IEEE 802.3ad
IEEE 802.3af
IEEE 802.3at
IEEE 802.1p
IEEE 802.1x
IEEE 802.1q
IEEE 802.1d
IEEE 802.1w
IEEE 802.1s

Loading and upgrading Loading and upgrading through FTP/TFTP




Management and maintenance

Configuration from CLI
Login through Telnet, and the console port
Simple Network Management Protocol(SNMP)
Remote Monitoring (RMON)
IMC network management system
WEB management
System log
Alarming based on severity
IRF
NTP
Debugging information output
Telnet-based remote maintenance
NQA
DLDP
Virtual Cable Test


Full Gigabit Two Layer 8 Port Poe Managed Switch S5120V2-10P-PWR-LI H3C 0Full Gigabit Two Layer 8 Port Poe Managed Switch S5120V2-10P-PWR-LI H3C 1
