AirEngine 8760-X1-PRO Huawei WLAN Device With Built In 16T16R Smart Antenna

AirEngine 8760-X1-PRO Huawei WLAN Device With Built In 16T16R Smart Antenna
AirEngine 8760-X1-PRO Huawei WLAN Device With Built In 16T16R Smart Antenna AirEngine 8760-X1-PRO Huawei WLAN Device With Built In 16T16R Smart Antenna AirEngine 8760-X1-PRO Huawei WLAN Device With Built In 16T16R Smart Antenna AirEngine 8760-X1-PRO Huawei WLAN Device With Built In 16T16R Smart Antenna AirEngine 8760-X1-PRO Huawei WLAN Device With Built In 16T16R Smart Antenna

Large Image :  AirEngine 8760-X1-PRO Huawei WLAN Device With Built In 16T16R Smart Antenna

Product Details:
Place of Origin: China
Brand Name: HUAWEI
Model Number: AirEngine 8760-X1-PRO Access Point
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $700-1000 pcs Negotiable
Packaging Details: Carton Packaging
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 100/pcs/week

AirEngine 8760-X1-PRO Huawei WLAN Device With Built In 16T16R Smart Antenna

Description
Power Input: DC: 48 V ± 10% PoE Power Supply: In Compliance With IEEE 802.3bt Port: 2 X 10 GE Electrical And 1 X 10 GE SFP+
Maximum Number Of Users: ≤ 1024 (dual-radio Mode) ≤ 1152 (triple-radio Mode) Operating Temperature: –10°C To 50°C
MIMO:Spatial Streams: 2.4 GHz: 4x4:4; 5 GHz: 12x12:8 2.4 GHz: 4x4:4; 5 GHz-0: 8x8:8; 5 GHz-1: 4x4:4 Radio Protocols: 802.11a/b/g/n/ac/ac Wave 2/ax
High Light:

AirEngine 8760-X1-PRO 16T16R Smart Antenna

,

AirEngine 8760-X1-PRO 16T16R Antenna

,

8760-X1-PRO 16T16R Antenna

Huawei Wi-Fi 6 indoor Access Point Fit Fat AP AirEngine 8760-X1-PRO with built-in 16T16R Smart Antennas

AirEngine 8760-X1-PRO Access Point



AirEngine 8760-X1-PRO — Huawei’s flagship Wi-Fi 6 (802.11ax) indoor Access Point (AP) — features 16 Smart Antennas and is equipped to handle high-density and bandwidth-hungry scenarios.

Unique to Huawei and derived from innovations made in 5G technologies, the 16 built-in, dual-band Smart Antennas achieve an astonishing device rate of up to 10.75 Gbit/s, delivering a fiber-like wireless experience. Smart Antennas also effectively improve signal gain, with signals following users to achieve complete coverage with zero blind spots.

Equipped with Software-Defined Radios (SDRs) by default, and with the ability to flexibly switch between three modes — dual-radio, triple-radio, and dual-radio + one scanning radio — AirEngine 8760-X1-PRO is designed for challenging high-density environments where interference is heavy. Such strengths make the AP a good fit for enterprise office, government, and higher education use, plus primary and secondary education.



16T16R Antennas



Unique to Huawei, 16T16R antennas support up to 16 spatial streams, achieving throughput of up to 10.75 Gbit/s and enabling the AP to provide a fiber-like network experience for heavy-traffic services such as AR, VR, and 4K HD video.



Smart Antennas



Built-in dual-band co-planar Smart Antennas suppress interference automatically, double signal strength, and provide 20% greater coverage distance, realizing high-quality wireless coverage with zero blind spots.



100 Mbit/s Everywhere



OFDMA and MU-MIMO joint scheduling across the entire network significantly improves network-wide performance for high-density access. Independent scanning radio continuously optimizes the network, delivering a lightning-fast experience.



Specifications

Parameters AirEngine 8760-X1-PRO
Dimensions (H x W x D) 61 mm x 220 mm x 220 mm
Power Input DC: 48 V ± 10%
PoE power supply: in compliance with IEEE 802.3bt
Maximum Number of Users ≤ 1024 (dual-radio mode)
≤ 1152 (triple-radio mode)
Note: The actual number of users varies according to the environment
Port 2 x 10 GE electrical and 1 x 10 GE SFP+
Built-in Bluetooth BLE 5.0
IoT Built-in IoT slots
Operating Temperature –10°C to 50°C
Antenna Type Built-in Smart Antennas
MIMO: Spatial Streams 2.4 GHz: 4x4:4; 5 GHz: 12x12:8
2.4 GHz: 4x4:4; 5 GHz-0: 8x8:8; 5 GHz-1: 4x4:4
Radio Protocols 802.11a/b/g/n/ac/ac Wave 2/ax
Maximum Rate 10.75 Gbit/s

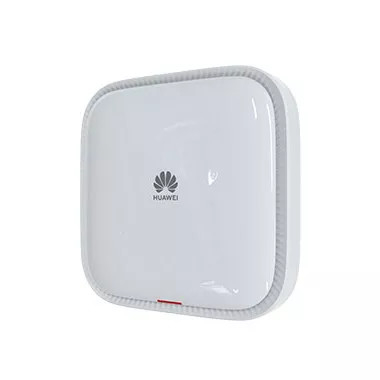

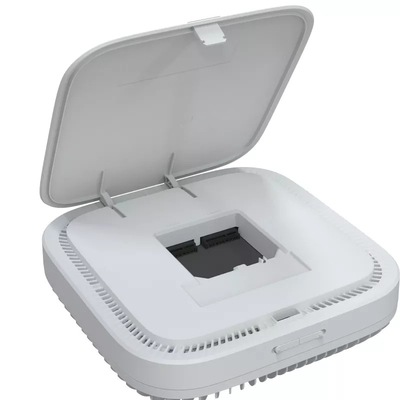

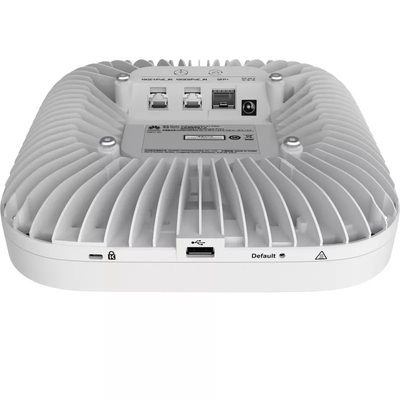

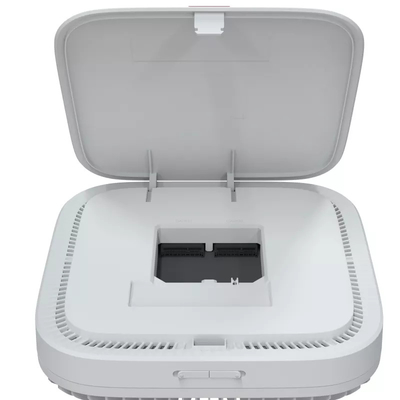

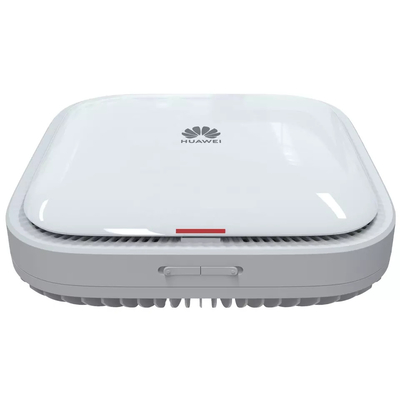

AirEngine 8760-X1-PRO Huawei WLAN Device With Built In 16T16R Smart Antenna 0

AirEngine 8760-X1-PRO Huawei WLAN Device With Built In 16T16R Smart Antenna 1

Notices:



1. Open the packaging, check the products carefully, and take them gently.

2. The product is a brand new original unopened equipment.

3. All products 1 year warranty, and the buyer is responsible for the return shipping cost.



International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
