10GE Uplink Access Point Huawei Wifi 6 AirEngine 6760-X1E Support Smart Antenna

10GE Uplink Access Point Huawei Wifi 6 AirEngine 6760-X1E Support Smart Antenna
10GE Uplink Access Point Huawei Wifi 6 AirEngine 6760-X1E Support Smart Antenna 10GE Uplink Access Point Huawei Wifi 6 AirEngine 6760-X1E Support Smart Antenna 10GE Uplink Access Point Huawei Wifi 6 AirEngine 6760-X1E Support Smart Antenna 10GE Uplink Access Point Huawei Wifi 6 AirEngine 6760-X1E Support Smart Antenna 10GE Uplink Access Point Huawei Wifi 6 AirEngine 6760-X1E Support Smart Antenna

Large Image :  10GE Uplink Access Point Huawei Wifi 6 AirEngine 6760-X1E Support Smart Antenna

Product Details:
Place of Origin: China
Brand Name: HUAWEI
Model Number: AirEngine 6760-X1E
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $500-800 pcs Negotiable
Packaging Details: Carton Packaging
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 100/pcs/week

10GE Uplink Access Point Huawei Wifi 6 AirEngine 6760-X1E Support Smart Antenna

Description
Power Input: DC: 48 V ± 10% PoE Power Supply: In Compliance With IEEE 802.3bt Port: 1 X 10 GE, 1 X GE Electrical, And 1 X 10 GE SFP+
Maximum Number Of Users: ≤ 1024 (dual-radio Mode) ≤ 1152 (triple-radio Mode) Operating Temperature: –10°C To 50°C
IoT: Built-in IoT Slots Radio Protocols: 802.11a/b/g/n/ac/ac Wave 2/ax
High Light:

10GE Uplink Access Point

,

Access Point Huawei Wifi 6

,

Wifi 6 AirEngine 6760-X1E

NEW Huawei WiFi 6 Access Point AirEngine 6760-X1E supports smart antenna and 10GE uplink wireless Indoor Access Point

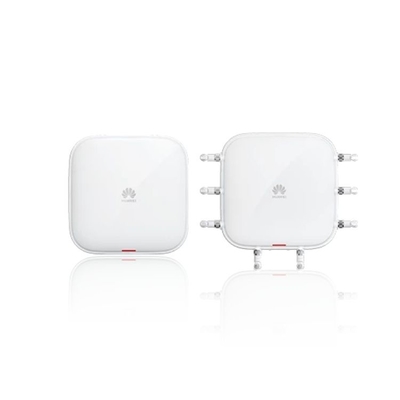

AirEngine 6760-X1 & 6760-X1E Access Points



Huawei AirEngine 6760-X1 and Huawei AirEngine 6760-X1E — indoor Wi-Fi 6 (802.11ax) Access Points (APs) — support ten spatial streams as the default, with support for up to 12 spatial streams possible through a Right to Use (RTU) software license. In addition, both APs support Software-Defined Radio (SDR) and can flexibly switch between three modes — dual-radio, triple-radio, and dual-radio + one scanning radio — making them ideal for high-interference or high-density access scenarios.

Support for 10 GE optical or electrical uplinks offers increased flexibility in terms of deployment, maximizing and protecting customer investment. This make the APs a good fit for small- and medium-sized enterprise office, education, and manufacturing environments.

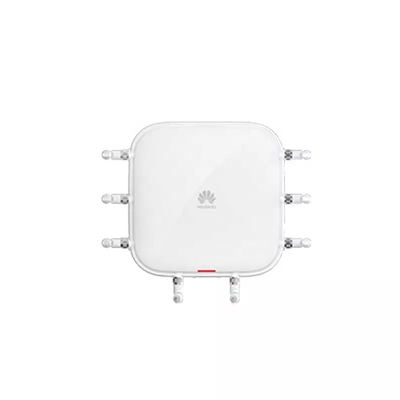

AirEngine 6760-X1 benefits from built-in Smart Antennas — unique to Huawei and derived from innovations made in 5G technology — to effectively improve signal gain and enable signals to follow users, achieving high-quality signal coverage with zero blind spots. Alternatively, AirEngine 6760-X1E can be connected to multiple external antennas, to adapt to complex environments, such as narrow corridors and high-rise buildings.



Dynamic Turbo

Huawei's unique SmartRadio intelligent application acceleration intelligently detects latency-sensitive applications — such as VR, AR, and gaming services — to ensure that latency remains as low as 10 ms, effectively eliminating dizziness and frame-freezing in multi-user concurrency scenarios.



Smart Antennas

Unique to Huawei, built-in dual-band co-planar Smart Antennas automatically suppress interference, achieve 20% greater coverage distance than competitor Wi-Fi 6 products, and offer a two-fold increase in overall signal strength. The result is high-quality wireless coverage with zero blind spots.



IoT Expansion

Both AirEngine 6760-X1 and AirEngine 6760-X1E support BLE 5.0 by default and adapt to multiple IoT protocols, such as RFID and ZigBee, through the built-in, dual-IoT slot design and USB port. This meets access requirements for a diverse range of IoT terminals.



Specifications

Parameters AirEngine 6760-X1 & 6760-X1E
Dimensions (H x W x D) 61 mm x 220 mm x 220 mm
Power Input DC: 48 V ± 10%
PoE power supply: in compliance with IEEE 802.3bt
Maximum Number of Users ≤ 1024 (dual-radio mode)
≤ 1152 (triple-radio mode)
Note: The actual number of users varies according to the environment
Port 1 x 10 GE, 1 x GE electrical, and 1 x 10 GE SFP+
IoT Built-in IoT slots
Operating Temperature –10°C to 50°C
Antenna Type AirEngine 6760-X1: Built-in Smart Antennas
AirEngine 6760-X1E: External antennas
MIMO: Spatial Streams Basic capability:
2.4 GHz: 4x4:4; 5 GHz: 6x6:6
Capability upgrade via RTU license:
2.4 GHz: 4x4:4; 5 GHz: 8x8:8
2.4 GHz: 4x4:4; 5 GHz-0: 4x4:4; 5 GHz-1: 4x4:4
Radio Protocols 802.11a/b/g/n/ac/ac Wave 2/ax
Maximum Rate Basic capability: 8.35 Gbit/s
RTU license upgrade: 10.75 Gbit/s



10GE Uplink Access Point Huawei Wifi 6 AirEngine 6760-X1E Support Smart Antenna 0

10GE Uplink Access Point Huawei Wifi 6 AirEngine 6760-X1E Support Smart Antenna 1

Notices:



1. Open the packaging, check the products carefully, and take them gently.

2. The product is a brand new original unopened equipment.

3. All products 1 year warranty, and the buyer is responsible for the return shipping cost.



International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
