Product Details:
|
| Power Input: | DC: 48 V ± 10% PoE Power Supply: In Compliance With IEEE 802.3bt | Port: | 1 X 10 GE, 1 X GE Electrical, And 1 X 10 GE SFP+ |
|---|---|---|---|
| Maximum Number Of Users: | ≤ 1024 (dual-radio Mode) ≤ 1152 (triple-radio Mode) | Operating Temperature: | –10°C To 50°C |
| IoT: | Built-in IoT Slots | Radio Protocols: | 802.11a/b/g/n/ac/ac Wave 2/ax |
| High Light: | BLE 5.0 Access Point Wifi 6,Huawei 5G AirEngine 6760-X1,Huawei Access Point Wifi 6 |
||

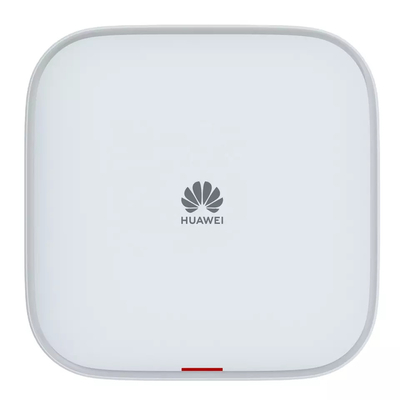

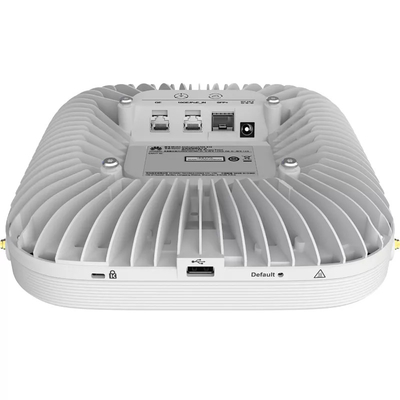

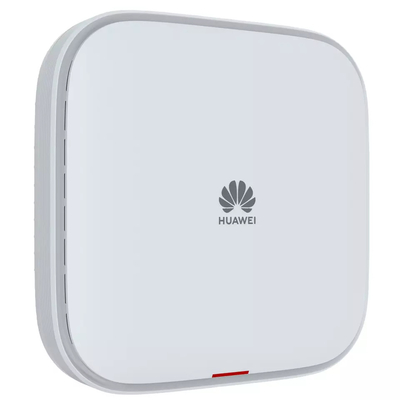

NEW Huawei 5G technology AirEngine 6760-X1 indoor Wi-Fi 6 Access Point AP supports 1152 users and BLE 5.0
AirEngine 6760-X1 & 6760-X1E Access Points
Huawei AirEngine 6760-X1 and Huawei AirEngine 6760-X1E — indoor Wi-Fi 6 (802.11ax) Access Points (APs) — support ten spatial streams as the default, with support for up to 12 spatial streams possible through a Right to Use (RTU) software license. In addition, both APs support Software-Defined Radio (SDR) and can flexibly switch between three modes — dual-radio, triple-radio, and dual-radio + one scanning radio — making them ideal for high-interference or high-density access scenarios.
Support for 10 GE optical or electrical uplinks offers increased flexibility in terms of deployment, maximizing and protecting customer investment. This make the APs a good fit for small- and medium-sized enterprise office, education, and manufacturing environments.
AirEngine 6760-X1 benefits from built-in Smart Antennas — unique to Huawei and derived from innovations made in 5G technology — to effectively improve signal gain and enable signals to follow users, achieving high-quality signal coverage with zero blind spots. Alternatively, AirEngine 6760-X1E can be connected to multiple external antennas, to adapt to complex environments, such as narrow corridors and high-rise buildings.
Huawei's unique SmartRadio intelligent application acceleration intelligently detects latency-sensitive applications — such as VR, AR, and gaming services — to ensure that latency remains as low as 10 ms, effectively eliminating dizziness and frame-freezing in multi-user concurrency scenarios.
Smart Antennas
Unique to Huawei, built-in dual-band co-planar Smart Antennas automatically suppress interference, achieve 20% greater coverage distance than competitor Wi-Fi 6 products, and offer a two-fold increase in overall signal strength. The result is high-quality wireless coverage with zero blind spots.
IoT Expansion

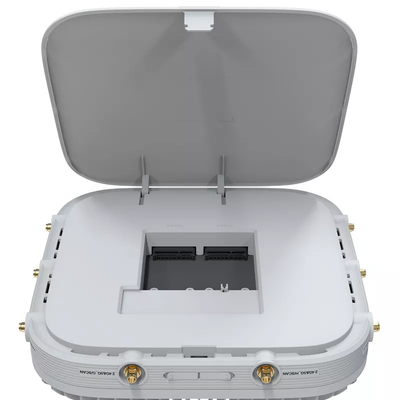

Both AirEngine 6760-X1 and AirEngine 6760-X1E support BLE 5.0 by default and adapt to multiple IoT protocols, such as RFID and ZigBee, through the built-in, dual-IoT slot design and USB port. This meets access requirements for a diverse range of IoT terminals.
Specifications
| Parameters | AirEngine 6760-X1 & 6760-X1E |
| Dimensions (H x W x D) | 61 mm x 220 mm x 220 mm |
| Power Input | DC: 48 V ± 10% PoE power supply: in compliance with IEEE 802.3bt |
| Maximum Number of Users | ≤ 1024 (dual-radio mode) ≤ 1152 (triple-radio mode) Note: The actual number of users varies according to the environment |
| Port | 1 x 10 GE, 1 x GE electrical, and 1 x 10 GE SFP+ |
| IoT | Built-in IoT slots |
| Operating Temperature | –10°C to 50°C |
| Antenna Type | AirEngine 6760-X1: Built-in Smart Antennas AirEngine 6760-X1E: External antennas |
| MIMO: Spatial Streams | Basic capability: 2.4 GHz: 4x4:4; 5 GHz: 6x6:6 Capability upgrade via RTU license: 2.4 GHz: 4x4:4; 5 GHz: 8x8:8 2.4 GHz: 4x4:4; 5 GHz-0: 4x4:4; 5 GHz-1: 4x4:4 |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2/ax |
| Maximum Rate | Basic capability: 8.35 Gbit/s RTU license upgrade: 10.75 Gbit/s |
