Product Details:
|
| Form Factor: | 1U Rack | Chipset: | Intel C621/C622/C624 |
|---|---|---|---|
| Processor: | Supports Single And Dual Intel® Xeon® Series Scalable Processors | Memory: | Supports Up To 24 DDR4 2400/2666/2933 MT/s DIMMs; Each CPU Supports 12 DIMMs, Two CPUs Support 24 DIMMs |
| Storage: | Each Front Node Supports Up To 4 X 3.5-inch Hard Drives And 2 X SATA SSD Hard Drives Or 10 X 2.5-inch Hard Drives; Each Rear Node Supports Up To 2 X SATA M.2 SSDs | Storage Controller: | SATA Controller On Motherboard, Supports RAID 0/1/5/10; NVMe Controller Interface On Motherboard Configurable With Intel® NVMe RAID Key |
| High Light: | NF5180M5 A 1U Rack Storage Server,NF5180M5 A 1U Rack Storage Server Seamless,NF5180M5 Rack Storage Server |
||

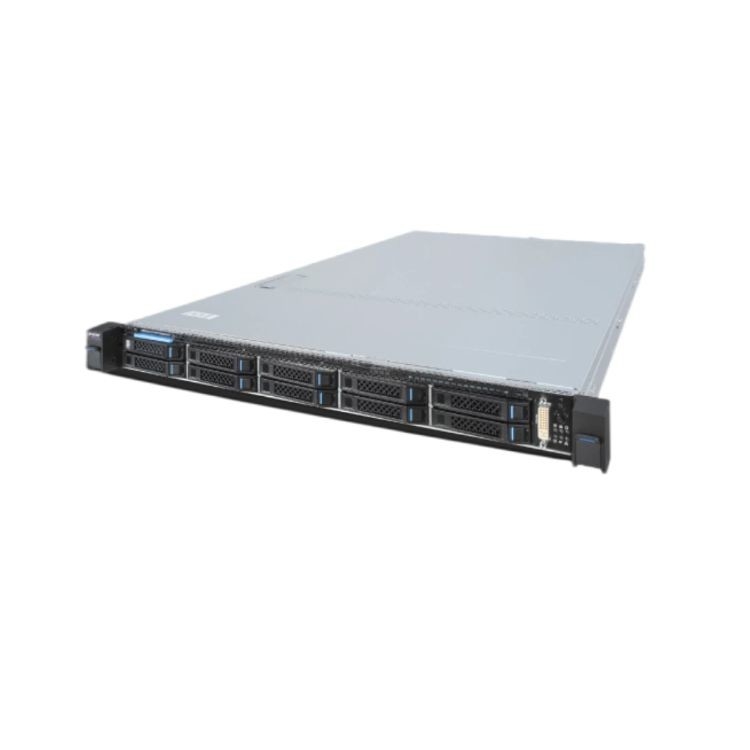

Inspur NF5180M5 A 1U 2-socket rack server with seamless compute density and scalability integration
Inspur NF5180M5
A 1U 2-socket rack server with seamless compute density and scalability integration
Excellent performance, High efficiency

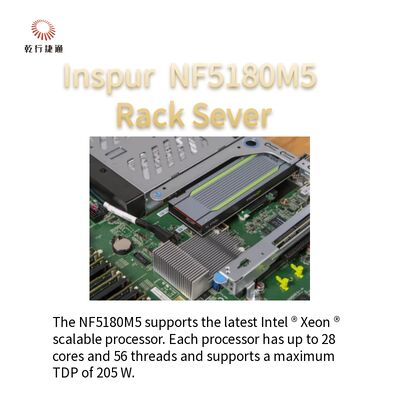

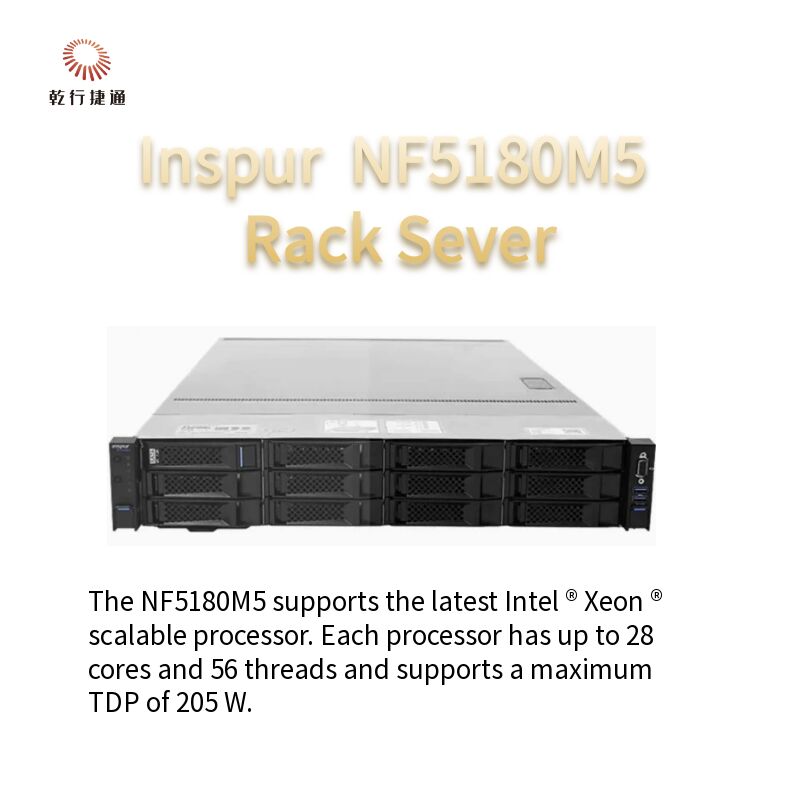

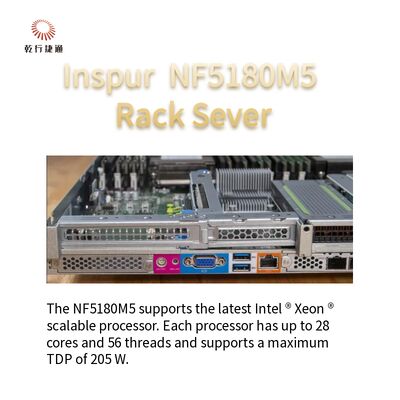

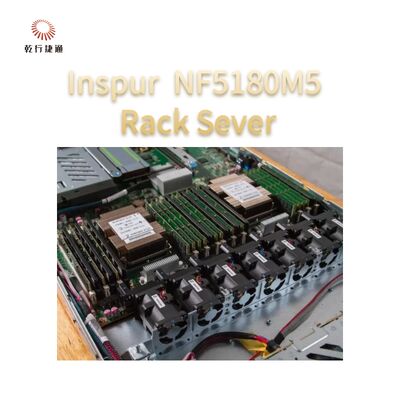

The NF5180M5 supports the latest Intel ® Xeon ® scalable processor. Each processor has up to 28 cores and 56 threads and supports a maximum TDP of 205 W.
Configurable to a maximum of 24 DDR4-2933 DIMMs for a total of 3TB. The NF5180M5 also supports RDIMM, LDRIMM,ECC, memory imaging, and hot standby.
Supports up to 8 Optane™ PMem.
The 10 hot swappable NVMe SSD hard drives have an all-flash configuration and provide a ten-fold input/output operations per second (IOPS) increase compared to SATA SSDs for high-end enterprise applications, providing increased storage bandwidth.
Multiple configurations, superior scalability
Each front node supports up to 4 x 3.5-inch hard drives and 2 x SATA SSDs or 10 x 2.5-inch hard drives, while each rear node supports 2 x SATA SSDs, thus achieving a significant increase in storage to provide large-scale storage.
Supports 2 x SATA M.2 or 2 x PCIe M.2 SSDs for faster and more secure operating system startups.
A flexible OCP/PHY card slot is available for 10G, 25G, and 40G network ports, providing highly flexible network configurations for different applications.
Supports 3 PCIe 3.0 slots for customers requiring flexibility for diverse system scalability and performance.
Secure, reliable, easy to operate, and accessible Based on humanization designs, tool-free maintenance is available for certain components, further lowering the maintenance time and increasing operation availability. Inspur’s unique intelligent control technology optimizes internal cooling to ensure server stability even at temperatures of up to 35°C/95℉.
With the latest BMC technology, our technical support personnel are able to use a web management interface as well as the LED and front UID indicators to identify the location and status of fault issues. This simplifies maintenance, reduces troubleshooting time, and increases system availability.
All swappable components have a fool-proof design for easier maintenance.
| Model | Description |
| Specifications | 1U rackmount |
| Processor | Supports single and dual Intel® Xeon® series scalable processors: |
| supports up to 28 cores at a frequency of 2.2 GHz; maximum 3.6 GHz (8 cores); 2 UPI interconnected chains with maximum speed of 10.4 GT/s per chain and maximum power of 205W; maximum turbo frequency 4.00 GHz(24 cores) | |
| Chipset | Intel C621/C622/C624 |

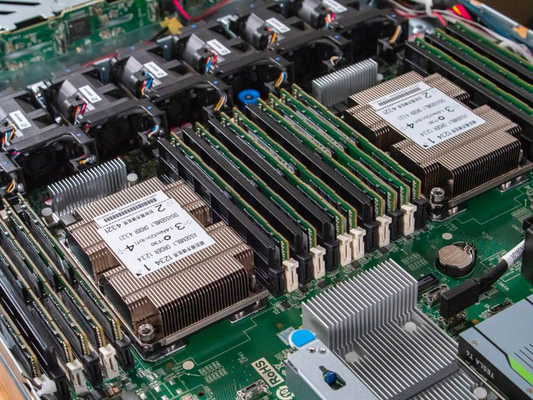

| Memory | Supports up to 24 DDR4 2400/2666/2933 MT/s DIMMs; each CPU supports 12 DIMMs, two CPUs support 24 DIMMs; |
| each CPU supports RDIMM/LRDIMM/Optane™ PMem; supports up to 3TB (64 GB per DIMM); supports up to 512GB per Optane™ PMem | |
| (The maximum number of supported Optane™ PMem is related to the specific configuration) | |

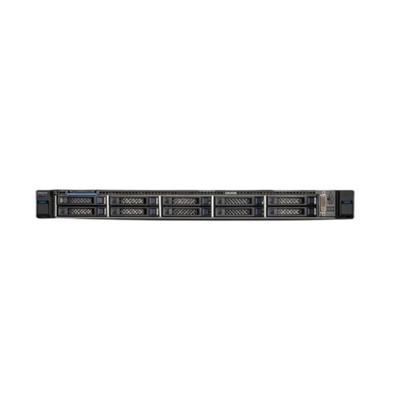

| Storage | Each front node supports up to 4 x 3.5-inch hard drives and 2 x SATA SSD hard drives or 10 x 2.5-inch hard drives; each rear node supports up to 2 x SATA M.2 SSDs; |
| each internal node supports 2 x SATA M.2 or 2 x PCIe M.2 SSDs | |
| (the maximum number of supported hard drives is configuration-specific) | |
| Storage controller | SATA controller on motherboard, supports RAID 0/1/5/10; NVMe controller interface on motherboard configurable with Intel® NVMe RAID key |
| Network port | 10 Gb/s PHY; 10G b/s, 25 Gb/s OCP |
| I/O expansion slot | Expands up to 2 x standard PCIe x16 slots, each PCIe slot is a x8 slot |
| Ports | Front: 1 x USB2.0 port, 1 x USB3.0 port (2 x USB2.0 ports in 2.5 chassis), 1 x VGA port, 1 x UID indicator and button |

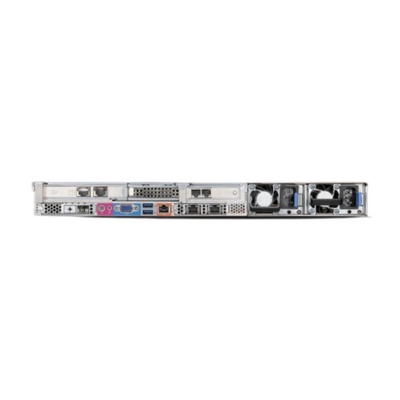

| Rear: 2 x USB3.0 ports, 1 x VGA port, 1 x 1 GB management port, and 1 x UID indicator and button | |
| Internal: | 1 x USB2.0 port, 1 x serial port |
| Fan | 7 x hot-swappable N+1 redundancy dual-rotor fans |
| Power supply | Supports 2 x 550W/800W/1300W/1600W PSUs (platinum), 1+1 redundancy |
| System management | The onboard BMC management module supports IPMI, SOL, KVM Over IP, and virtual media, and provides 1 external 1 Gb RJ45 network port |
| Operating system | Supports Windows/ Red Hat/ SUSE/ Centos/ Debian/ XenServer/ Oracle Linux/ ESXi/ Ubuntu etc. |
| Size | 435mm (W) x 43mm (H) x 751mm (D) |
| 17.13 inch (W) x 1.60 inch (H) 29.57 inch (D) | |
| Weight | Less than 28 kg at full load, please refer to the technical white paper for further details |
| Operating temperature | 5℃-35℃ |
| 41℉-95℉ | |
| (please refer to the technical white paper for more details) | |
| Performance Data | SPEC official result: Link Best application: Intel Xeon Gold 6238R Intel Xeon Silver 4215R |
