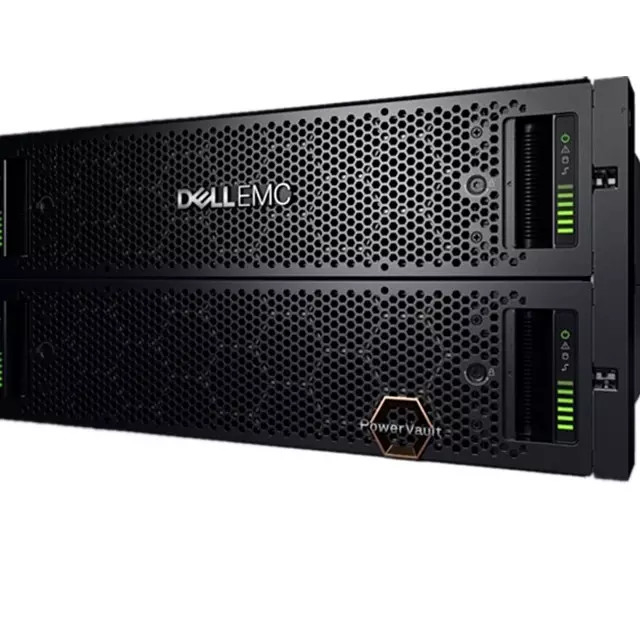

5U Rackmount Server DELL EMC PowerVault ME5084 Storage Array

5U Rackmount Server DELL EMC PowerVault ME5084 Storage Array
5U Rackmount Server DELL EMC PowerVault ME5084 Storage Array 5U Rackmount Server DELL EMC PowerVault ME5084 Storage Array 5U Rackmount Server DELL EMC PowerVault ME5084 Storage Array 5U Rackmount Server DELL EMC PowerVault ME5084 Storage Array

Large Image :  5U Rackmount Server DELL EMC PowerVault ME5084 Storage Array

Product Details:
Place of Origin: China
Brand Name: DELL EMC
Model Number: PowerVault ME5084 Storage Array
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $15000-46800 pcs Negotiable
Packaging Details: Carton Packaging
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 10/pcs/week

5U Rackmount Server DELL EMC PowerVault ME5084 Storage Array

Description
Rack Size: 5U Processor: Intel® Xeon Processor
Internal Storage: 84x 3.5” Drive Bays (2.5” Drive Carriers Supported) System Memory: 16GB Per Controller (32GB Total)
NAS Support: Supported With NX Series Windows NAS Appliance Host Interface: FC, ISCSI (optical Or BaseT), SAS
High Light:

DELL EMC PowerVault ME5084

,

5U Rackmount Server

,

ME5084 Storage Array

DELL EMC PowerVault ME5084 Storage Array SAN/DAS Multiple protocols: SAS, FC, iSCSI 12Gb SAS backend



Dell EMC PowerVault ME5084 Storage Array

Entry storage purpose-built and optimized for SAN/DAS
The, simple, fast and affordable Dell PowerVault ME5 storage platforms are optimized to run a variety of mixed workload applications – physical and virtual – for small to medium size businesses. Whether you need to consolidate your block storage, support applications without the need for low latency flash and NVMe, take advantage of intelligent data management or scale capacity to keep pace with data growth, then PowerVault ME5 is ready to meet your growing business needs. The flexibility of PowerVault ME5 offers multiple protocols, supports a wide range of drive types and capacities, scales up to 8PB1 capacity, validated with Dell PowerEdge Servers (16G ready) and is delivered to you with all-inclusive software – so you’ll have the needed data services to store, manage, and protect your data.
Using fast Intel Xeon processors, Dell PowerVault ME5 storage implements a dual-active controller architecture, 12GB/sec read and 10GB/sec write throughput and uses a 12Gb SAS backend protocol for rapid capacity expansion.

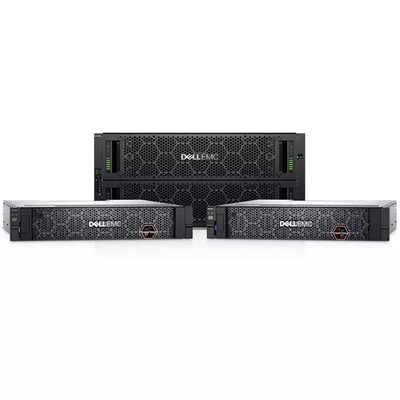

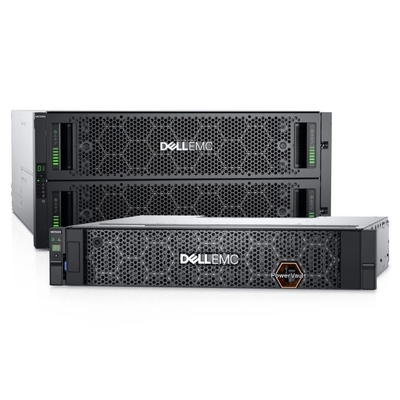

Dell PowerVault ME5 base system and expansion models
The two non-dense ME5 base arrays start at 2U and the dense ME5 array starts at 5U. The base models all support dual-active controllers with each controller including 16GB of memory.



PowerVault ME5 Specifications
Chassis Overview
Chassis format All-in-one: dual controllers, internal drive bays, networking and with expansion options
Rack size 2U or 5U
Controllers 2 hot-swappable per chassis (dual-active)
Single/dual controller support for 2U models
Dual controller support only for 5U model
Processor Intel® Xeon Processor
Internal storage ME5012: 12 x 3.5” drive bays (2.5” drive carriers supported)
ME5024: 24 x 2.5” drive bays
ME5084: 84x 3.5” drive bays (2.5” drive carriers supported)
System memory 16GB per controller (32GB total)
Expansion Capacity
Expansion enclosures ME412: 12 x 3.5” drive bays (12Gb SAS)
ME424: 24 x 2.5” drive bays (12Gb SAS)
ME484: 84 x 3.5” drive bays (12Gb SAS)
Min/Max drive count ME5012: 2/264
ME5024: 2/276
ME5084: 28/336
Max raw capacity1 ME5012: 2.40PB (with 9xME412 expansion) | ME5012: 1.89PB (with 9xME424 expansion)
ME5024: 2.34PB (with 9xME412 expansion) | ME5012: 1.83PB (with 9xME424 expansion)
ME5012: 5.28PB (with 3xME484 expansion) | ME5024: 5.22PB (with 3xME484 expansion)
ME5084: 6.72PB (with 3xME484 expansion)
NAS Support Supported with NX Series Windows NAS appliance
Storage media SAS and NL-SAS drives; different drive types, transfer rates, rotational speeds can be mixed in the same system:
• NLSAS 7.2K 3.5” – 4TB, 8TB, 12TB, 16TB, 16TB FIPS, 20TB
• SAS 10K 2.5” – 1.2TB, 2.4TB, 2.4TB FIPS
• SSD – 960GB RI, 1.6TB MU, 1.92TB, 3.84TB, 3.84TB FIPS, 7.68TB RI
• SDD and HDD: FIPS-certified SEDs
Network, Expansion Enclosure and I/O
Host interface FC, iSCSI (optical or BaseT), SAS
Max 32Gb FC ports 8 per array (support auto-negotiate to 16Gb)
Max 25Gb iSCSI
ports
8 SFP+ or SFP28 ports per array
Max 10Gb iSCSI
ports
8 BaseT ports per array (only support auto negotiate to 1Gb)
Max 12Gb SAS ports 8 12Gb SAS ports
Max management
ports
2 per array (1Gb BASE-T)
Disk expansion
protocol
12Gb SAS
Disk interface
expansion ports
2 x 12Gb SAS (wide-Port) per array (1 port per controller)
Up to 9 2U expansion enclosures per 2U base array
Up to 3 5U expansion enclosures per 2U base array
Up to 3 5U expansion enclosures per 5U base array
Functional
Array configurations All-flash, hybrid flash, HDD only arrays
Storage format Native block-level SAN or DAS
Data Optimization
Auto-tiering Up to 3 primary (media-based) tiers
RAID support RAID 1, 5, 6, 10, or ADAPT RAID; any combination of RAID levels can exist in single array
ADAPT RAID Distributed erasure coding that reduces rebuild times when drive failures occur
Thin provisioning Active by default on all volumes, operates at full performance across all features
Snapshots 1024 maximum re-direct-on-write snapshots per array
Data Mobility and Migration
Replication Asynchronous replication via FC or iSCSI – ME4 to ME5; ME5 to ME4; ME5 to ME5
Target/source relationships may be one-to-many or many-to-one
Volume copy Copy complete standalone volumes
Data Protection, Disaster Recovery, Security
Business continuity VMware Site Recovery Manager
Data-at-rest encryption Self-encrypting drives (SEDs) in SSD or HDD formats
Full Disk Encryption (FDE) based on AES-256
Drives certified to FIPS 140-2 Level 2
Key manager Internal controller key management
Management
Management support PowerVault Manager HTML5 GUI element manager, CLI, OpenManage Enterprise 3.9
VMware vCenter VMware vCenter plugin to manage ME5 arrays through vCenter.
Scripting CLI API
Redfish/Swordfish REST API
Supported host OS Windows 2022, 2019 and 2016
RHEL 8.2 and 7.8
SLES 15.2 and 12.5
VMware 7.0 and 6.7
Citrix XenServer 8.x and 7.x
Virtualization
integration
VMware vSphere (ESXi)
vCenter; SRM
Microsoft Hyper-V
Physical Base System
Rack size ME5012 (2U), ME5024 (2U), ME5084 (5U)
Base system height ME5012: 8.79 cm (3.46 inches)
ME5024: 8.79 cm (3.46 inches)
ME5084: 22.23 cm (8.75 inches)
Base system width ME5012: 48.30 cm (19.01 inches)
ME5024: 48.30 cm (19.01 inches)
ME5084: 48.30 cm (19.01 inches)
Base system depth ME5012: 61.87mm (24.36 inches)
ME5024: 54.78mm (21.56 inches)
ME5084: 981mm (38.62 inches)
Weight (max configuration) ME5012: 32.00 kg (71.00 lbs)
ME5024: 30.00 kg (66.00 lbs)
ME5084: 135.00 kg (298.00 lbs)
Weight (empty) ME5012: 4.80 kg (10.56 lbs) without drives
ME5024: 4.80 kg (10.56 lbs) without drives
ME5084: 64.00 kg (141.00 lbs) without drives
Physical Expansion Enclosure
Rack size ME412 (2U), ME424 (2U), ME484 (5U)
Expansion height ME412: 8.79 cm (3.46 inches)
ME424: 8.79 cm (3.46 inches)
ME484: 22.23 cm (8.75 inches)
Expansion width ME412: 48.30 cm (19.01 inches)
ME424: 48.30 cm (19.01 inches)
ME484: 48.30 cm (19.01 inches)
Expansion depth ME412: 60.29 cm (23.74 inches)
ME424: 60.29 cm (23.74 inches)
ME484: 97.47 cm (38.31 inches)
Weight (max configuration) ME412: 28.00 kg (62.00 lbs)
ME424: 25.00 kg (55.00 lbs)
ME484: 130.00 kg (287.00 lbs)
Weight (empty) ME412: 4.80 kg (10.56 lbs) without drives
ME424: 4.80 kg (10.56 lbs) without drives
ME484: 64.00 kg (141.00 lbs) without drives
Base System Power
Power/wattage ME5012: 580W
ME5024: 580W
ME5084: 2200W
Heat dissipation ME5012: 1980 BTU
ME5024: 1980 BTU
ME5084: 7507 BTU
Voltage ME5012: 100-240 VAC
ME5024: 100-240 VAC
ME5084: 200-240 VAC
Frequency 50/60 Hz
Amperage ME5012: 7.6-3.0A (x2)
ME5024: 7.6-3.0A (x2)
ME5084: 11.07-9.23A (x2)
Expansion Power
Power/wattage ME412: 580W
ME424: 580W
ME484: 2200W
Heat dissipation ME412: 1980 BTU
ME424: 1980 BTU
ME484: 7507 BTU
Voltage ME412: 100-240 VAC
ME424: 100-240 VAC
ME484: 200-240 VAC
Frequency 50/60 Hz
Amperage ME412: 7.6-3.0A (x2)
ME424: 7.6-3.0A (x2)
ME484: 11.07-9.23A(x2)
Environmental Operating Conditions
Operating temperature 5°C - 35°C (41°F - 95°F, derated by 1°C per 300mm above 900m)
Non-operating temperature -40°C to 70°C (-40 to 158°F) Maximum temperature changes in an hour: 20°C
Operating humidity
ranges (non-condensing)
-12C dew point minimum, 8% to 85% maximum, non-condensing
Non-operating humidity (non
condensing)
21°C dew point maximum, 5% to 100% maximum, non-condensing
Service & Warranty
Services Dell ProSupport Enterprise Suite and Dell ProDeploy Enterprise Suite. Optional ProSupport Plus is available offering
pro-active and preventative services to improve performance and stability.



PowerVault ME5084 Storage Array

  • Up to 6PB capacity with ME484 expansions (20U)
  • Up to 336 drives (84 x 3.5" drive bays)
  • Supported by CloudIQ predictive storage analytics
  • SAN/DAS Multiple protocols: SAS, FC, iSCSI
  • Dual-active controller architecture
  • 12Gb SAS backend
  • All premium software features included



5U Rackmount Server DELL EMC PowerVault ME5084 Storage Array 0

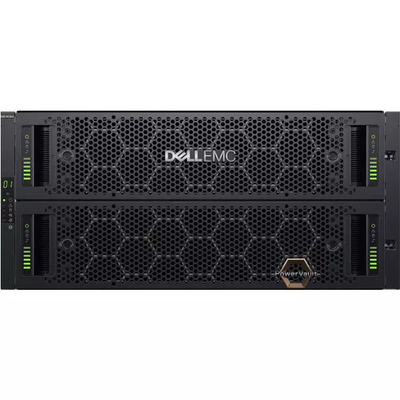

ME5084   84 drive / 5U




Notices:



1. Open the packaging, check the products carefully, and take them gently.

2. The product is a brand new original unopened equipment.

3. All products 1 year warranty, and the buyer is responsible for the return shipping cost.



International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
