RB3011UiAS-RM 1GB RAM Datacom Switches PoE Out On Port 10 2x1.4GHz CPU

RB3011UiAS-RM 1GB RAM Datacom Switches PoE Out On Port 10 2x1.4GHz CPU
RB3011UiAS-RM 1GB RAM Datacom Switches PoE Out On Port 10 2x1.4GHz CPU RB3011UiAS-RM 1GB RAM Datacom Switches PoE Out On Port 10 2x1.4GHz CPU

Large Image :  RB3011UiAS-RM 1GB RAM Datacom Switches PoE Out On Port 10 2x1.4GHz CPU

Product Details:
Place of Origin: China
Brand Name: MikroTik
Model Number: RB3011UiAS-RM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $195-205 pcs Negotiable
Packaging Details: Carton Packaging
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 50/pcs/week

RB3011UiAS-RM 1GB RAM Datacom Switches PoE Out On Port 10 2x1.4GHz CPU

Description
Architecture: ARM 32bit CPU: IPQ-8064
CPU Core Count: 2 CPU Nominal Frequency: 1.4 GHz
Dimensions: 443 X 92 X 44 Mm RouterOS License: 5
Operating System: RouterOS Size Of RAM: 1 GB
Storage Size: 128 MB Storage Type: NAND
MTBF: Approximately 200'000 Hours At 25C Tested Ambient Temperature: -20°C To 70°C
High Light:

RB3011UiAS-RM 1GB RAM Datacom Switches

,

RB3011UiAS-RM 1GB RAM Switches

,

RB3011UiAS-RM 1GB Datacom Switches

1U rackmount, 10xGigabit Ethernet, SFP, USB 3.0, LCD, PoE out on port 10, 2x1.4GHz CPU, 1GB RAM, RouterOS L5



RB3011UiAS-RM

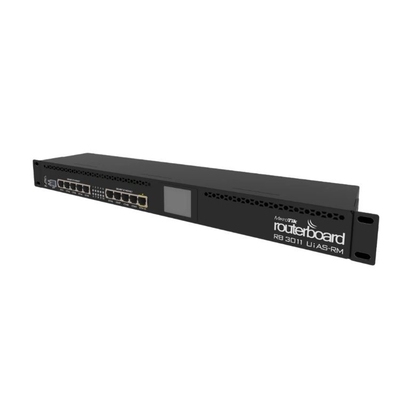

The RB3011 is a new multi port device, our first to be running an ARM architecture CPU for higher performance than ever before. The RB3011 has ten Gigabit ports divided in two switch groups, an SFP cage and for the first time a SuperSpeed full size USB 3.0 port, for adding storage or an external 3G/4G modem.

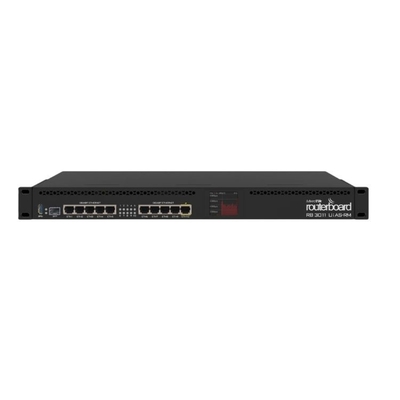

RB3011UiAS-RM Unit comes with 1U rackmount enclosure, a touchscreen LCD panel, a serial console port and PoE output functionality on the last Ethernet port.

Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 10-30 V
Max power consumption 30 W
Max power consumption without attachments 10 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 10-30 V


PoE-out

Details
PoE-out ports Ether10
PoE out Passive PoE
Max out per port output (input 18-30 V) 600 mA
Max total out (A) 600 mA


Ethernet

Details
10/100/1000 Ethernet ports 10


Fiber

Details
SFP ports 1


Peripherals

Details
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1


Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes


Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP20





RB3011UiAS-RM 1GB RAM Datacom Switches PoE Out On Port 10 2x1.4GHz CPU 0



RB3011UiAS-RM 1GB RAM Datacom Switches PoE Out On Port 10 2x1.4GHz CPU 1

Notices:



1. Open the packaging, check the products carefully, and take them gently.

2. The product is a brand new original unopened equipment.

3. All products 1 year warranty, and the buyer is responsible for the return shipping cost.



International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
