The S7700 series design is based on Huawei's intelligent multi-layer switching technology to provide intelligent service
optimization methods, such as MPLS VPN, traffic analysis, comprehensive HQoS policies, controllable multicast, load balancing,
and security, in addition to high-performance Layer 2 to Layer 4 switching services. The S7700 also features super scalability

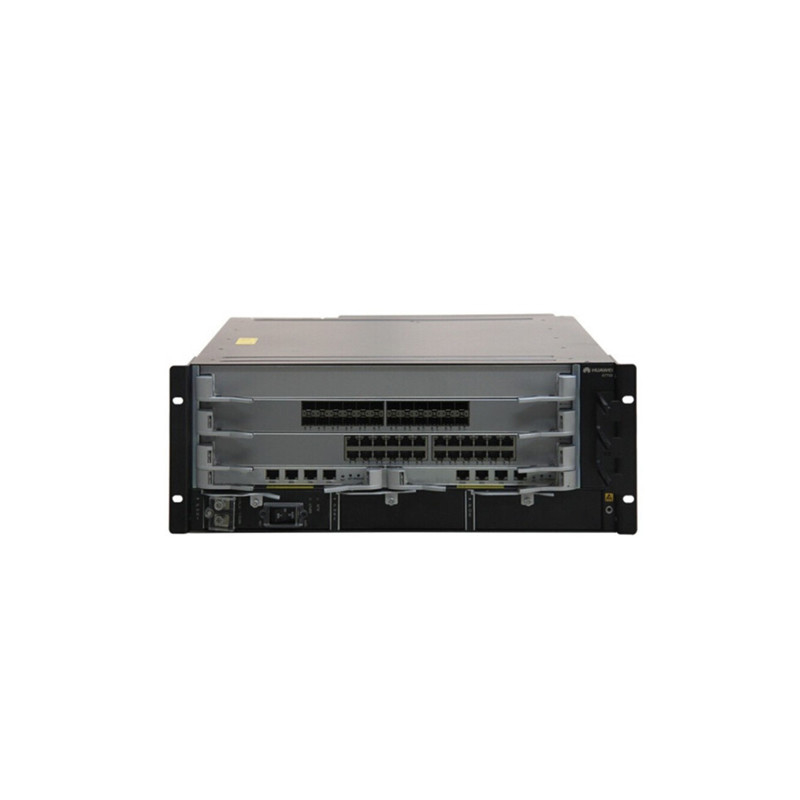

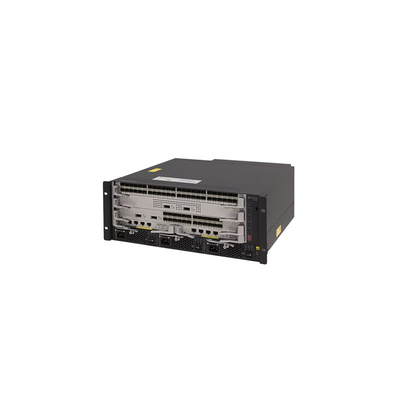

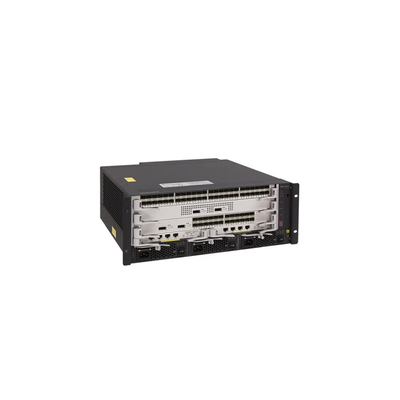

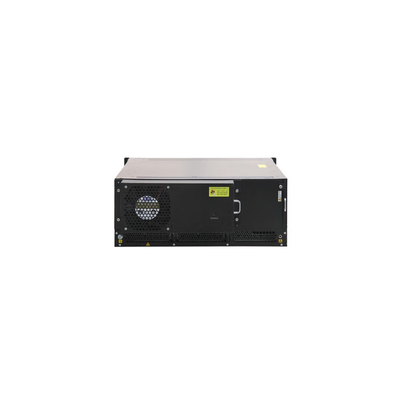

The S7700 series is available in three models: S7703, S7706, and S7712. The switching capacity and port density of all four
models is expandable. The S7700 is developed based on a new hardware platform and adopts a left-to-rear ventilation channel
to achieve better energy efficiency. Key components work in redundancy mode to minimize risks of system breakdown and
service interruption. Using innovative energy-saving chips, the S7700 provides an industry-leading solution for a sustainable
energy-saving network, and can function either as an aggregation or core node on a campus network or in a data center to
provide integrated wireless access.
Features and Highlights
Agile Switch, Enabling Networks to Be More Agile for Services
The high-speed ENP chip used in the S7700 series is tailored for Ethernet. The chip's flexible packet processing and traffic
control capabilities can meet current and future service requirements, helping build a highly scalable network.
The built-in native AC on S7700 series switches allows enterprises to build a wireless network without additional AC hardware.
S7700 switch can manage up to 4K APs. It is a core switch that provides up to Tbit/s AC capabilities, avoiding the performance
bottleneck on independent AC devices. The native AC capabilities help organizations better cope with challenges in the high
speed wireless era.
The S7700 series' unified user management function authenticates both wired and wireless users, ensuring a consistent user
experience no matter whether they are connected to the network through wired or wireless access devices. The unified user
management function supports various authentication methods, including PPPoE, 802.1x, MAC address, and Portal
authentication, and is capable of managing users based on user groups, domains, and time ranges. These functions implement
user and service management and enable the transformation from device-centric management to user-centric management.
Huawei's Super Virtual Fabric 2.0 (SVF 2.0) technology can not only virtualize fixed-configuration switches into S7700 switch
line cards but also virtualize APs as switch ports. With this virtualization technology, a physical network with core/aggregation
switches, access switches, and APs can be virtualized into a "super switch", greatly simplifying network management.
Huawei's Packet Conservation Algorithm for Internet (iPCA) technology changes the traditional method that uses simulated
traffic for fault location. iPCA technology monitors network quality for any service flow at any network node, at any time, and
without extra costs. It can detect temporary service interruptions within one second and can identify faulty ports accurately. This
cutting-edge fault detection technology turns "extensive management" into "fine granular management."
Huawei's IEEE 1588v2 and Synchronous Ethernet (SyncE) solutions enable high-precision time synchronization between
network devices. Compared with the Global Positioning System (GPS) time synchronization solution, Huawei's solutions
enhance security while reducing costs.
The Service Chain feature virtualizes the value-added service processing capabilities, such as firewall, so that campus networks
can utilize these capabilities in an undifferentiated manner. That is, these capabilities can be used without location constraint.
Note: The CS7700 series switches can manage 16 APs by default . You can purchase licenses for more AP management on
Powerful Service Processing Capabilities
The S7700 provides high-density 10GE ports,Multi-GE ports, 40GE ports and 100GE ports. Each S7712 chassis can provide a
maximum of 576 x 10GE ports, 288 x Multi-GE, 144 x 40GE ports or 96 x 100GE ports, meeting the requirements of bandwidth
consuming applications, such as multimedia conferencing and data access.
The S7700's multi-service routing and switching platform meets requirements for service bearing at the access layer,
aggregation layer, and core layer of enterprise networks. The S7700 provides wireless access along with voice, video, and data
services, helping enterprises build integrated full-service networks with high availability and low latency.
The S7700 supports distributed Layer 2/Layer 3 MPLS VPN functions, including MPLS, VPLS, HVPLS, and VLL, implementing
VPN access for enterprise users.
The S7700 supports various Layer 2 and Layer 3 multicast protocols such as PIM SM, PIM DM, PIM SSM, MLD, and IGMP
snooping. It can provide enterprises with multi-terminal high definition video surveillance and video conferencing services.
Carrier-class Reliability and Visual Fault Diagnosis
Huawei's high reliability design ensures that the S7700 is 99.999% reliable. The S7700 provides redundant backup for key
components, including main processing units (MPUs), power supply units, and fans trays, all of which are hot swappable.
The S7700 innovatively implements the Cluster Switch System (CSS) function through switch fabrics, and packets are only
switched once when they are forwarded between chassis. This addresses the problem of low switching efficiency caused by
multiple switching processes during inter-chassis forwarding in clusters established using line cards. In addition, inter-chassis
link aggregation can be used to improve link use efficiency and prevent single-point failures.
The S7700 can use service ports as cluster ports, enabling flexible port utilization.
The S7700 supports High-speed Self Recovery (HSR) technology. Using Huawei's ENP cards, the S7700 is the industry's only
switch that implements end-to-end IP MPLS bearer network protection switchover within 50 ms, improving network reliability.
The S7700 has a dedicated fault detection subcard that provides hardware-based BFD and hardware-based OAM including
IEEE 802.3ah, 802.1ag, and ITU-Y.1731. Hardware-based OAM implements 3.3 ms fault detection and can check session
connectivity of all terminals in real time when a network fault occurs. The S7700 can also work with a network management
system (NMS). The NMS provides a graphical fault diagnosis interface and traverses all network elements and links
automatically to help users detect and locate faults quickly.
Enhanced QoS Mechanism, Improving the Voice and Video Experience
The S7700's HQoS control mechanisms classify traffic based on information from the link layer to the application layer. With
advanced queue scheduling and congestion control algorithms, the S7700 performs accurate multi-level scheduling for data
flows, satisfying enterprises' QoS requirements for a variety of services and user terminals.
The S7700 supports hardware-based low delay queues for multicast packets so that the video service can be processed with
high priority and low delay. This feature guarantees the high quality of key services in an enterprise, such as video conference
The S7700 uses innovative priority scheduling algorithms to optimize the QoS queue scheduling mechanism for voice and video
services. The improved scheduling mechanism shortens the delay of the VoIP service and eliminates the pixelation effect in the
video service, improving user experience.
High-performance IPv6 Service Processing, Resulting in A Smooth Transition From IPv4
Both the hardware platform and software platform of the S7700 support IPv6. The S7700 has earned the IPv6 Ready Phase 2
The S7700 supports IPv4/IPv6 dual stack, various tunneling technologies, IPv6 static routing, RIPng, OSPFv3, BGP+, IS-ISv6,
and IPv6 multicast. These features meet the demand for IPv6 networking and combined IPv4 and IPv6 networking.
Superb Traffic Analysis Capability, Resulting in Real-time Network Performance
The S7700 supports NetStream for the real-time collection and analysis of network traffic statistics.
The S7700 supports the V5, V8, and V9 NetStream formats and provides aggregation traffic templates to reduce the burden on
the network collector system. In addition, the S7700 supports real-time traffic collection, dynamic report generation, traffic
attribute analysis, and traffic exception trap.
NetStream monitors network traffic in real time and analyzes the device's throughput, providing data for network structure
optimization and capacity expansion.
Comprehensive Security Mechanisms, Protecting Enterprises from Internal and External
The S7700 supports MAC security (MACSec) that enables hop-by-hop secure data transmission. The S7700 can be applied to
scenarios that pose high requirements on data confidentiality, such as government and finance sectors.
NGFW is a next-generation firewall card that can be installed on an S7700. In addition to the traditional defense functions such
as firewall, identity authentication, and Anti-DDoS, the NGFW supports IPS, anti-spam, web security, and application control
The S7700 provides comprehensive NAC solutions for enterprise networks. It supports MAC address authentication, Portal
authentication, 802.1x authentication, and DHCP snooping-triggered authentication. These authentication methods ensure the
security of various access modes, such as dumb terminal access, mobile access, and centralized IP address allocation.
Innovative Energy-saving Chips, Allowing for Intelligent Power Consumption Control
The S7700 uses innovative energy-saving chips, which can dynamically adjust power on all ports based on traffic volume. An
idle port enters a sleep mode to reduce power consumption.
The S7700 supports Power over Ethernet (PoE) and uses different energy management modes according to the powered
device (PD) type, ensuring flexible energy management.
The S7700 supports IEEE 802.3az Energy Efficient Ethernet and provides the low power idle mode for the PHY line card. If the
link utilization is low, the S7700 switches to a lower speed or power PHY to reduce power consumption.
The Huawei cloud management platform allows users to configure, monitor, and inspect switches on the cloud, reducing
on-site deployment and O&M manpower costs and decreasing network OPEX. Huawei switches support both cloud
management and on-premise management modes. These two management modes can be flexibly switched as required to
achieve smooth evolution while maximizing return on investment (ROI).
VXLAN is used to construct a Unified Virtual Fabric (UVF). As such, multiple service networks or tenant networks can be
deployed on the same physical network, and service and tenant networks are isolated from each other. This capability truly
achieves 'one network for multiple purposes'. The resulting benefits include enabling data transmission of different services or
customers, reducing the network construction costs, and improving network resource utilization. The S7700 series switches are
VXLAN-capable and allow centralized and distributed VXLAN gateway deployment modes. These switches also support the
BGP EVPN protocol for dynamically establishing VXLAN tunnels and can be configured using NETCONF/YANG.
Open Programmability System (OPS) is an open programmable system based on the Python language. IT administrators can
program the O&M functions of a switch through Python scripts to quickly innovate functions and implement intelligent O&M.
Big Data Security Collaboration
The S7700 uses NetStream to collect campus network data and then report such data to the Huawei HiSec Insight. The
purposes of doing so are to detect network security threats, display the security posture across the entire network, and enable
automated or manual response to security threats. The HiSec Insight delivers the security policies to the iMaster NCE
Campus(or Agile Controller). The iMaster NCE-Campus(or Agile Controller) then delivers such policies to switches that will
handle security events accordingly. All these ensure campus network security.
Open Intelligent Diagnosis System (OIDS) integrates the device health monitoring and fault diagnosis functions – that are
typically deployed on a Network Management System (NMS) – into the switch software to implement intelligent diagnosis on a
single switch. After OIDS is deployed on a switch, the switch periodically collects and records the running information and
automatically determines whether a fault occurs. If a fault occurs, the switch automatically locates the fault or helps locate the
fault. All these merits increase fault locating efficiency of O&M staff while improving device maintainability.
CloudEngine S7700 provides telemetry technology to collect device data in real time and send the data to the CampusInsight (a
campus network analysis component of Huawei iMaster NCE). The CampusInsight then analyzes network data based on the
intelligent fault identification algorithm, accurately displays the real-time network status, effectively demarcates and locates
faults in a timely manner, and identifies network problems that affect user experience, accurately guaranteeing user experiences.
The S7700 supports both the traditional feature-based licensing mode and the latest Huawei IDN One Software (N1 mode for
short) licensing mode. The N1 mode is ideal for deploying Huawei CloudCampus Solution in the on-premises scenario, as it
greatly enhances the customer experiences in purchasing and upgrading software services with simplicity
Software Package Features in N1 Mode
|Basic network functions:
Layer 2 functions, IPv4, IPv6, MPLS, SVF, and others
|Basic network automation based on the Agile
⚫ Basic automation: Plug-and-play, SSID, and AP
⚫ Basic monitoring: Application visualization
⚫ NE management: Image and topology management
⚫ WLAN enhancement: Roaming and optimization for
up to 128 Aps
⚫ User access authentication
|Advanced network automation and intelligent O&M:
VXLAN, free mobility, and CampusInsight basic functions
Note: Only V200R019C00 and later versions can support N1 mode
