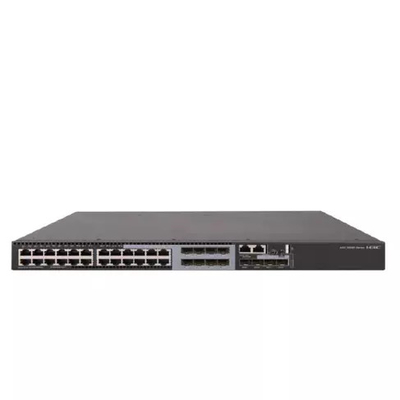

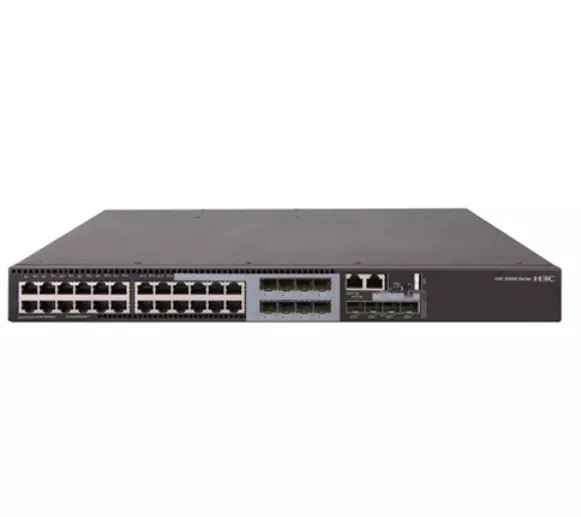

LS-S5120V2-20P-LI H3C Server 104Gbps Switching Capacity

LS-S5120V2-20P-LI H3C Server 104Gbps Switching Capacity
LS-S5120V2-20P-LI H3C Server 104Gbps Switching Capacity LS-S5120V2-20P-LI H3C Server 104Gbps Switching Capacity LS-S5120V2-20P-LI H3C Server 104Gbps Switching Capacity

Large Image :  LS-S5120V2-20P-LI H3C Server 104Gbps Switching Capacity

Product Details:
Place of Origin: China
Brand Name: H3C
Model Number: LS-S5120V2-20P-LI
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $190-245 pcs Negotiable
Packaging Details: 50/pcs/week
Payment Terms: T/T
Supply Ability: 1-100

LS-S5120V2-20P-LI H3C Server 104Gbps Switching Capacity

Description
Switching Capacity: 104Gbps Box Switching Capacity: 598Gbps
Packet Forwarding Rate:: 78 Mpps CPU:: 1 Core, 800MHz
Flash/SDRAM:: 512MB/512MB Management Ethernet Ports: 1
High Light:

LS-S5120V2-20P-LI H3c Server

,

104Gbps H3c Server

S-S5120V2-20P-LI H3C 16 Gigabit electrical ports 4 Gigabit optical ports Layer 2 enterprise-level series switch

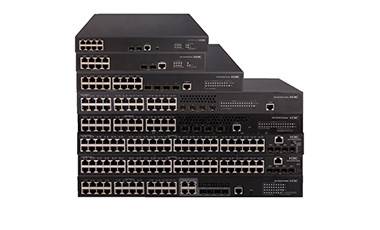

H3C S5120V2-LI Gigabit Access Switch Series



H3C S5120V2-LI is the latest development of Gigabit Layer 2 access switch. It’s the second generation intelligent managed switches designed for networks requiring high performance, high port density and easy to use.
H3C S5120V2-LI series switch offers Gigabit connectivity with10/100/1000 autosensing ports and SFP optical uplink ports.
H3C S5120V2-LI series switch includes eight models as follows:
S5120V2-10P-LI:8 *10/100/1000TX+ 2*SFP
S5120V2-20P-LI:16*10/100/1000TX+ 4*SFP
S5120V2-28P-LI:24 *10/100/1000TX+ 4*SFP
S5120V2-52P-LI:48*10/100/1000TX+ 4*SFP
S5120V2-10P-PWR-LI:8 *10/100/1000TX+ 2*SFP
S5120V2-28P-PWR-LI:24 *10/100/1000TX+ 4*SFP
S5120V2-28P-HPWR-LI:24*10/100/1000 BASE-T + 4*SFP + 4*10/100/1000 BASE-T COMBO
S5120V2-52P-PWR-LI:48*10/100/1000TX+ 4*SFP

Specification

Feature S5120V2
-10P-LI
S5120V2
-20P-LI
S5120V2
-28P-LI
S5120V2
-52P-LI
S5120V2
-10P- PWR-LI
S5120V2
-28P- PWR-LI
S5120V2
-28P- HPWR-LI
S5120V2
-52P- PWR-LI
Switching capacity 20Gbps 40Gbps 56Gbps 104Gbps 20Gbps 56Gbps 56Gbps 104Gbps
Packet forwarding rate 15Mpps 30Mpps 41.7Mpps 77.4Mpps 15Mpps 41.7Mpps 41.7Mpps 77.4Mpps

Dimensions (H × W × D)
43.6×
266 ×
161 mm
43.6×
330 ×
230 mm
43.6×
440 ×
160 mm
43.6×
440 ×
230 mm
43.6×
330 ×
230 mm
43.6×
440 ×
260 mm
43.6×
440 ×
260 mm
43.6×
440 ×
260 mm
Weight ≤ 1.5kg ≤ 2kg ≤ 2.5kg ≤ 3.5kg ≤ 3kg ≤ 4kg ≤ 4.5kg ≤ 6kg
Console ports 1


Fixed ports

8*10/100
/1000TX

16*10/10
0/1000TX

24*10/10
0/1000TX

48*10/10
0/1000TX

8*10/100
/1000TX

24*10/10
0/1000TX
24*10/10
0/1000TX
+4*10/100/ 1000 BASE-T Combo

48*10/10
0/1000TX
+2*SFP +4*SFP +4*SFP +4*SFP +2*SFP +4*SFP + 4*SFP +4*SFP

Input voltage range

100 VAC to 240 VAC @ 50 Hz/60 Hz
AC: 100-240V @50/60Hz
DC: -48V~-60V




Power consumption


MIN: 7W MAX: 12W


MIN: 9W MAX: 19W


MIN: 9W MAX: 23W


MIN: 18W MAX: 41W


MIN: 13W MAX:153W (PoE
125W)


MIN: 19W MAX: 240W(PoE
170W)
MIN:
AC: 23W DC: 16W MAX:
AC: 446W
(PoE 370W) DC:
790W(PoE
740W)
MIN:
AC: 36W DC: 26W MAX:
AC: 467W
(PoE 370W) DC:
807W(PoE
740W)
Operating temperature 0ºC to 45ºC
Operating humidity 10% RH to 95% RH, non-condensing
Stacking Intelligent Resilient Framework 2 (IRF2)

Link aggregation
1G/10GE port aggregation
Static aggregation
Dynamic aggregation
Multichassis link aggregation
Jumbo frame Supported
MAC address table Blackhole MAC Address MAC learning limit
Flow control 802.3x flow control and half-duplex backpressure

VLAN
Port-based VLAN QinQ
Voice VLAN
MAC VLAN
ARP ARP Detection
ARP speed limit
ND Supported
VLAN virtual port Supported


DHCP
DHCP Client
DHCP Snooping
DHCP Relay
DHCP Server
DHCP Option82
DNS Static and Dynamic DNS IPV4 and IPV6
Routing protocols IPV4/IPV6 static routing RIP/ RIPng, OSPFV1/V2/V3
Multicast IGMP Snooping V1/V2/V3
MVR
Strom suppression Storm suppression based on port bandwidth percentage Storm suppression based on PPS

Layer 2 ring network protocol
STP/RSTP/MSTP
STP Root Protection
Smart Link
RRPP
Mirroring Flow mirroring
Port mirroring

QoS/ACL
Packet filter
Flexible queue scheduling algorithms based on ports and queues, including SP, WRR and SP+WRR Bidirectional ACL
Port-based speed limit Flow redirection
Time-range




Security
Hierarchical user management and password protection MAC- based authentication
802.1X
SSH2.0
Port isolation
IP source guard
HTTPs
EAD
IEEE IEEE 802.3x
IEEE 802.3ad
IEEE 802.3af
IEEE 802.3at
IEEE 802.1p
IEEE 802.1x
IEEE 802.1q
IEEE 802.1d
IEEE 802.1w
IEEE 802.1s
Loading and upgrading Loading and upgrading through FTP/TFTP



Management and maintenance
Configuration from CLI
Login through Telnet, and the console port
Simple Network Management Protocol(SNMP)
Remote Monitoring (RMON)
IMC network management system
WEB management
System log
Alarming based on severity
IRF
NTP
Debugging information output
Telnet-based remote maintenance
NQA
DLDP
Virtual Cable Test


LS-S5120V2-20P-LI H3C Server 16 Gigabit Electrical Ports 4 Gigabit Optical Ports 0LS-S5120V2-20P-LI H3C Server 16 Gigabit Electrical Ports 4 Gigabit Optical Ports 1
