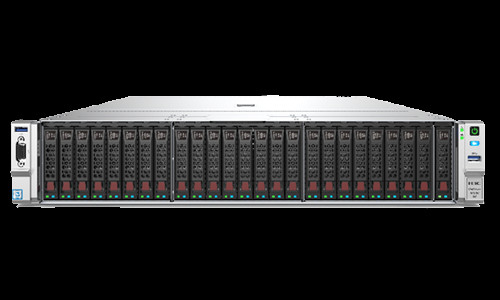

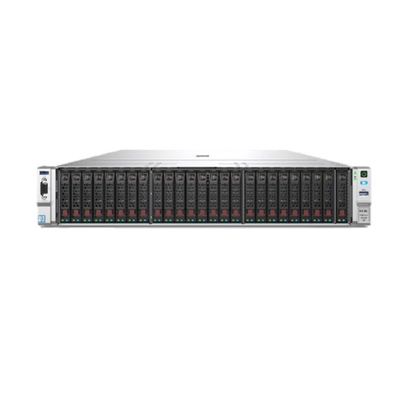

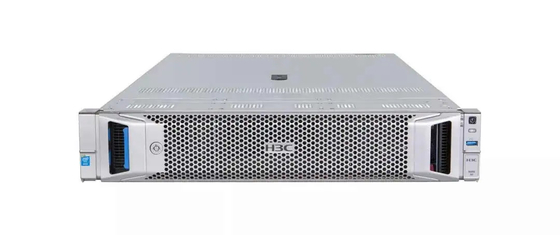

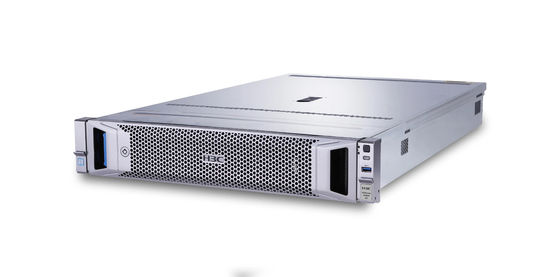

H3C Rackmount Storage Server UniServer R4900 G5 2U

H3C Rackmount Storage Server UniServer R4900 G5 2U
H3C Rackmount Storage Server UniServer R4900 G5 2U H3C Rackmount Storage Server UniServer R4900 G5 2U H3C Rackmount Storage Server UniServer R4900 G5 2U H3C Rackmount Storage Server UniServer R4900 G5 2U H3C Rackmount Storage Server UniServer R4900 G5 2U

Large Image :  H3C Rackmount Storage Server UniServer R4900 G5 2U

Product Details:
Brand Name: H3C
Model Number: UniServer R4900 G5
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $5650-7850 pcs Negotiable
Packaging Details: 50/pcs/week

H3C Rackmount Storage Server UniServer R4900 G5 2U

Description
CPU: 2 X 3rd Generation Intel® Xeon® Ice Lake SP Series (each Processor Up To 40 Cores And Maximum 270W Power Consumption) Memory:: 32 X DDR4 DIMM Slots , Maximum 12.0 TB
Storage Controller:: Embedded RAID Controller (SATA RAID 0, 1, 5, And 10) FBWC:: 8 GB DDR4 Cache, Depending On Model, Support Supercapacitor Protection
Storage:: Up To Front 12LFF Bays, Internal 4LFF Bays , Rear 4LFF+4SFF Bays* PCIe Slots:: 4 X PCIe 4.0 Standard Slo
High Light:

H3C Rackmount Storage Server

,

UniServer R4900 G5 Rackmount Storage Server

,

2U H3C Server

2U Rackmount H3C R4900 G5

,

2U Rackmount Storage H3C R4900 G5

,

2U Rackmount Storage R4900 G5





H3C UniServer R4900 G5 self-developed mainstream 2U rack server With 14 x PCIe slots 3rd Gen Intel Xeon Big Data Storage

H3C UniServer R4900 G5 Server

Highlights: High Performance High Reliability, High Scalability

New generation H3C UniServer R4900 G5 provide outstanding scalable capacity supporting up to 28 NVMe drives to enhance configuration flexibility for modern data centers

H3C UniServer R4900 G5 server is a H3C self-developed mainstream 2U rack server.

R4900 G5 utilizes the most recent 3rd Gen Intel®Xeon® Scalable processors and 8 channel DDR4 memory with 3200MT/s speed to strongly lift the bandwidth up to 60% compared with previous platform.

With 14 x PCIe3.0 I/O slots and 2 xOCP 3.0 to reach excellent IO scalability.

Maximum 96% power efficiency and 5~45℃ operating temperature provide users a TCO returns in a greener data center.



R4900 G5 is optimized for scenarios:

- Virtualization — Support multiple types of core workloads on a single server to simplify Infra-investment.

- Big Data — Manage exponential growth of structured, unstructured, and semi-structured data.

- Storage intensive application — dismiss the performance bottleneck

- Data warehouse/analysis — Query data on demand to help service decision

- Customer relationship management (CRM) — Help you to gain comprehensive insights into business data to improve customer satisfaction and loyalty

- Enterprise resource planning (ERP) — Trust the R4900 G5 to help you manage services in real time

- (Virtual Desktop Infrastructure)VDI —Deploy remote desktop services to provide your employees with the working flexibility anytime, anywhere

- High-performance computing and deep learning — Provide sufficient GPUs to support machine learning and AI applications

- Housing Data center graphics for high-density cloud gaming and media streaming

- The R4900 G5 supports Microsoft® Windows® and Linux operating systems, as well as VMware and H3C CAS and can operate perfectly in heterogeneous IT environments.

Specification



CPU 2 x 3rd generation Intel® Xeon® Ice Lake SP series
(each processor up to 40 cores and maximum 270W power consumption)
Chipset Intel® C621A
Memory 32 x DDR4 DIMM slots , maximum 12.0 TB
Up to 3200 MT/s data transfer rate,support RDIMM or LRDIMM
Up to 16 Intel ® Optane™ DC Persistent Memory Module PMem 200 series ( Barlow Pass)
Storage controller Embedded RAID controller (SATA RAID 0, 1, 5, and 10)
Standard PCIe HBA controller or storage controller, depending on model
FBWC 8 GB DDR4 cache, depending on model, support supercapacitor protection
Storage Up to front 12LFF bays, internal 4LFF bays , Rear 4LFF+4SFF bays*
Up to front 25SFF bays, internal 8SFF bays , Rear 4LFF+4SFF bays*
Front/Internal SAS/SATA HDD/SSD/NVMe Drives, maximum 28 x U.2 NVMe Drives
SATA or PCIe M.2 SSDs, 2 x SD card kit , depending on model
Network 1 x onboard 1 Gbps management network port
2 x OCP 3.0 slots for 4 x 1GE or 2 x 10GE or 2 x 25GE NICs
PCIe Standard slots for 1/10/25/40/100/200GE/IB Ethernet adapter
PCIe slots 14 x PCIe 4.0 standard slots
Ports VGA ports (Front and Rear) and serial port (RJ-45)
6 x USB 3.0 ports (2 front, 2 rear, 2 internal)
1 dedicated management Type-C port
GPU 14 x single-slot wide or 4 x double-slot wide GPU modules
Optical drive External optical disk drive , optional
Management HDM OOB system (with dedicated management port) and H3C iFIST/FIST, LCD touchable smart model
Security Intelligent Front Security Bezel *
Chassis Intrusion Detection
TPM2.0
Silicon Root of Trust
Two-factor authorization logging
Power supply 2 x Platinum 550W/800W/850W/1300W/1600W/2000/2400W (1+1 redundancy) , depending on model
800W –48V DC power supply (1+1 Redundancy)
Hot swappable redundant fans
Standards CE,UL , FCC,VCCI,EAC, etc.
Operating temperature 5°C to 45°C (41°F to 113°F)
The maximum operating temperature varies by server configuration. For more information, see the technical documentation for the device.
Dimensions (H × W × D) 2U Height
Without a security bezel: 87.5 x 445.4 x 748 mm (3.44 x 17.54 x 29.45 in)
With a security bezel: 87.5 x 445.4 x 776 mm (3.44 x 17.54 x 30.55 in)



2U Rackmount Storages Server H3C UniServer R4900 G5 2U Rack Server 02U Rackmount Storages Server H3C UniServer R4900 G5 2U Rack Server 1
